TITLE11 commissioning via panel
Should the gates not operate as suggested above,
call CAME helpline 0115 921 0430 for technical support.
Safety inputs should now be configured and the
gate force tested as required. Please refer to the
full manual to complete the commissioning.
Ensure the wiring is complete (refer to the wiring diagram) & any required physical stops are set before
commencing with programming Tick
1. Power on the control panel.
2. Press the button
3. Guided procedure
If Guided procedure is not shown go to Configuration – Guided procedure
System mode - Single
Opening direction - To the left or To the right
As viewed from the inside of the property looking outwards.
CX input - Disable
CY input - Disable
CZ input - Disable
CK input - Disable
Travel AST Control - Disabled
AST Control (slowd.) - Disabled
Add users - NO
Travel calibration - Confirm - YES
Please refer to the main manual for:
Changing automatic closing time, adjusting encoder settings if required

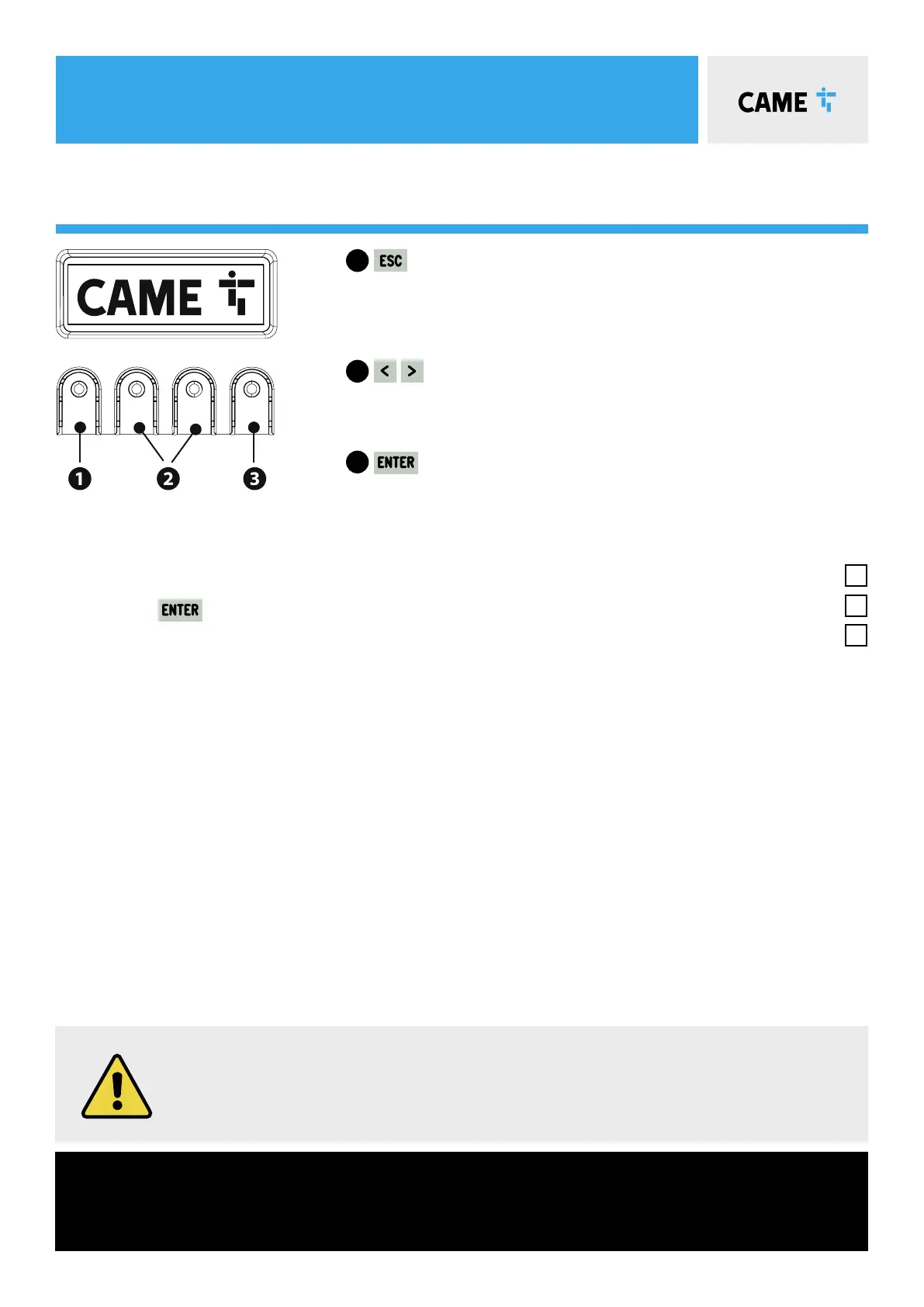

button - used to perform the following operations:
• Exit the menu
• Delete the changes
• Go back to the previous screen
• Stop the operator
buttons - used to perform the following operations:
• Navigate the menu
• Increase or decrease values
• Open or close the operator
button - used to perform the following operations
• Access menus
• Confirm a choice
1
2
3
Important!
Esc< > Ent
