4.4 Size measurements
Measurements in mm
MAX
8
1
3
2
4
5
6
7
3
4
2
9
8
7
1
6
5
9
10
11
3
All the data and information contained herein is considered subject to change at any time and at our discretion
ENGLISH

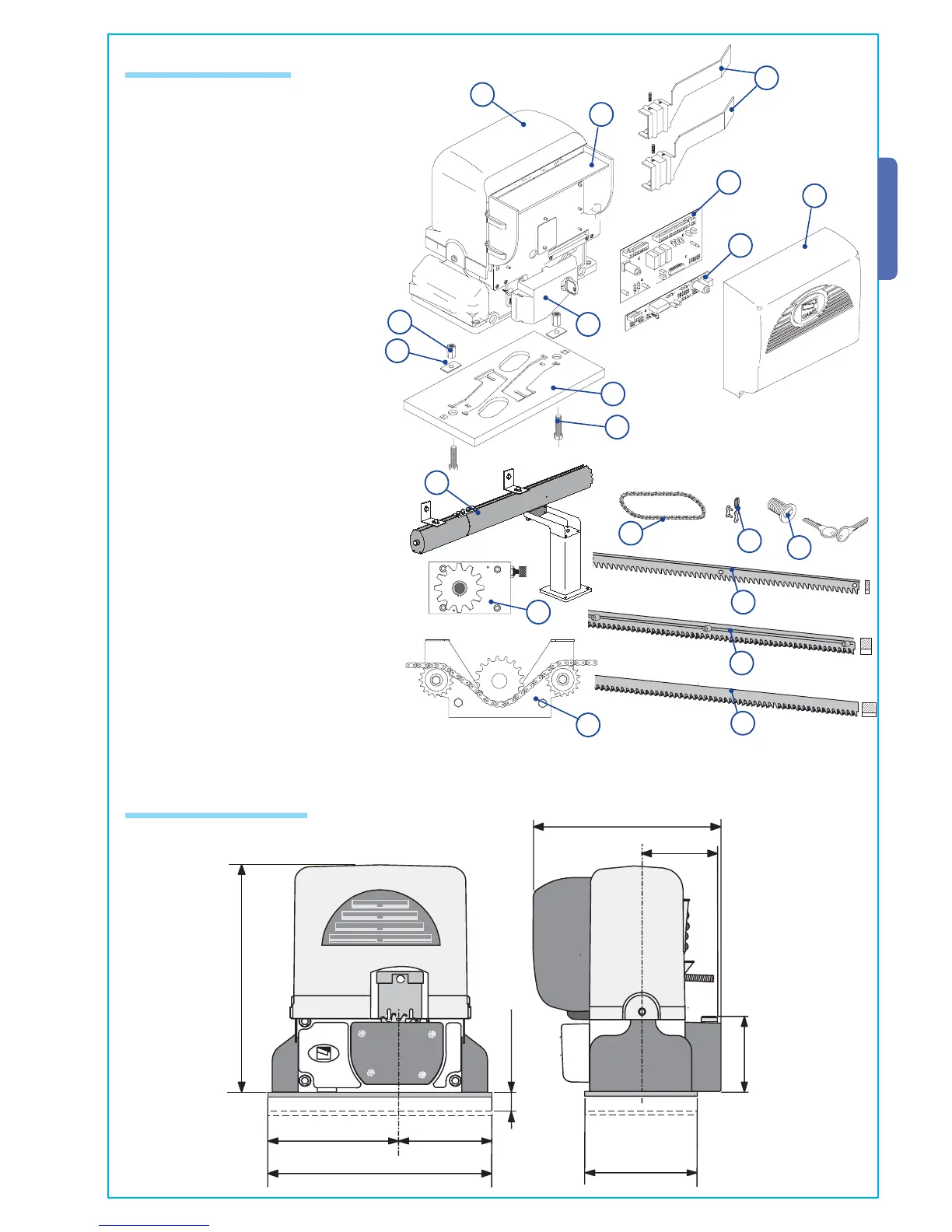

4.3 Parts description
GEARMOTOR UNIT
1 - Ratiomotor
2 - Board cover support
3 - End-stop flaps
4 - ZBX241 basic control board
5 - BN1 battery charger board
6 - Electric board front cover
7 - Release door
8 - Base plate
9 - Securing screws
10 - Plates for securing screws
11 - Nuts
ACCESSORIES
1 - R001 - Cylinder lock with DIN keys
2 - BSF - Braking device
3 - BRC - Cable winding device
4 - B4337 - Chain transmission device
5 - CCT - Simple 1/2” chain
6 - CGIU - 1/2” chain joint
7 - CGZ - Galvanized steel 22 x 22 module 4 rack
8 - CGZF - PA 6 nylon 20 x 32 module 4 rack
with holes and fixing spacers
9 - CGZS - Galvanized steel 30 x 8 module 4
rack with fastening screws, holes and supports
