CAME BXL04AGS

1
2
1
2
p. 14 - Manual FA00000-EN - 02/2018 - © CAME S.p.A. - "Translated original instructions"
Spring
For closing:
- completely close the gate;
- fit the closing endstop fin onto the rack until the micro-switch activates (spring);
- fasten it using the allen screws
⚠
Don't let the gate get to the mechanical stop, whether it is the opening or closing one.

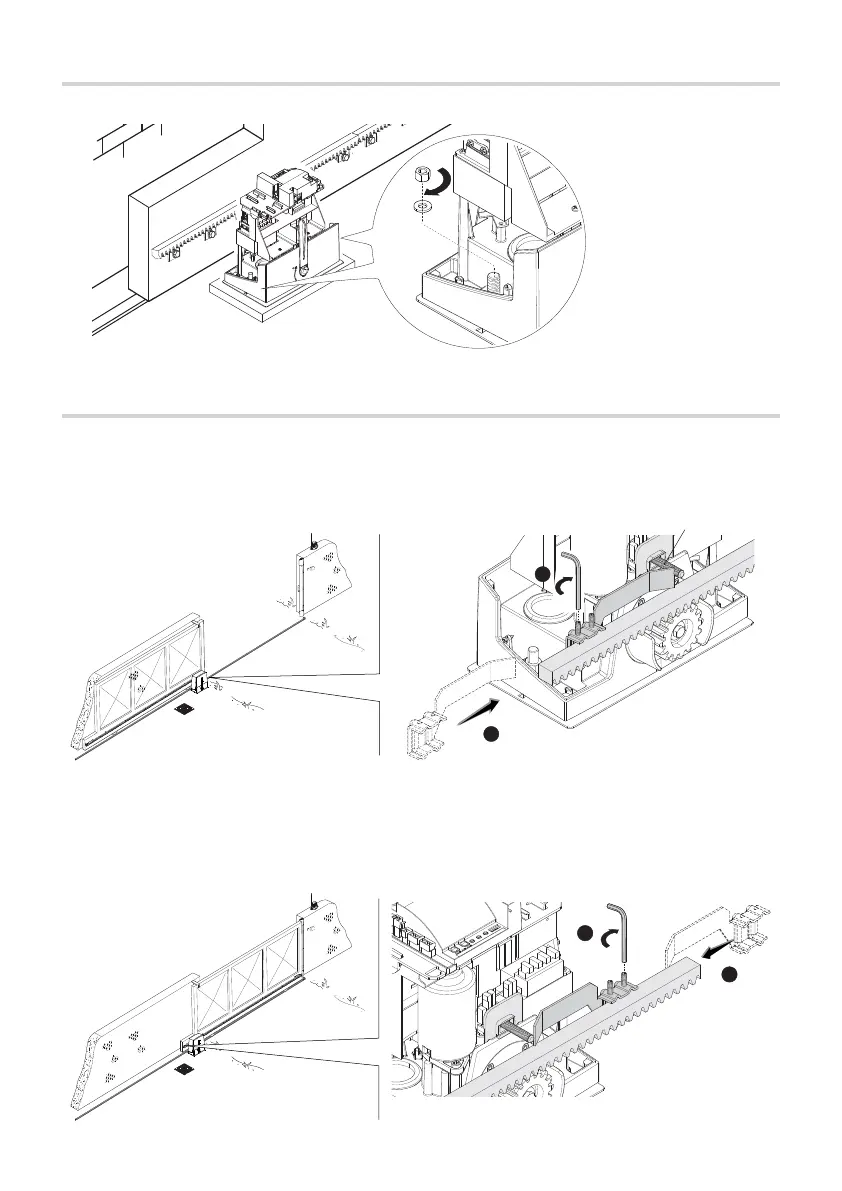

ESTABLISHING THE LIMIT-SWITCH POINTS
For opening:
- completely open the gate;
- fit the opening endstop fin onto the rack until the micro switch activates (spring);
- fasten it using the allen screws
FASTENING THE GEARMOTOR
Complete the adjusting, fasten the gearmotor to the plate using the washers and nuts.
