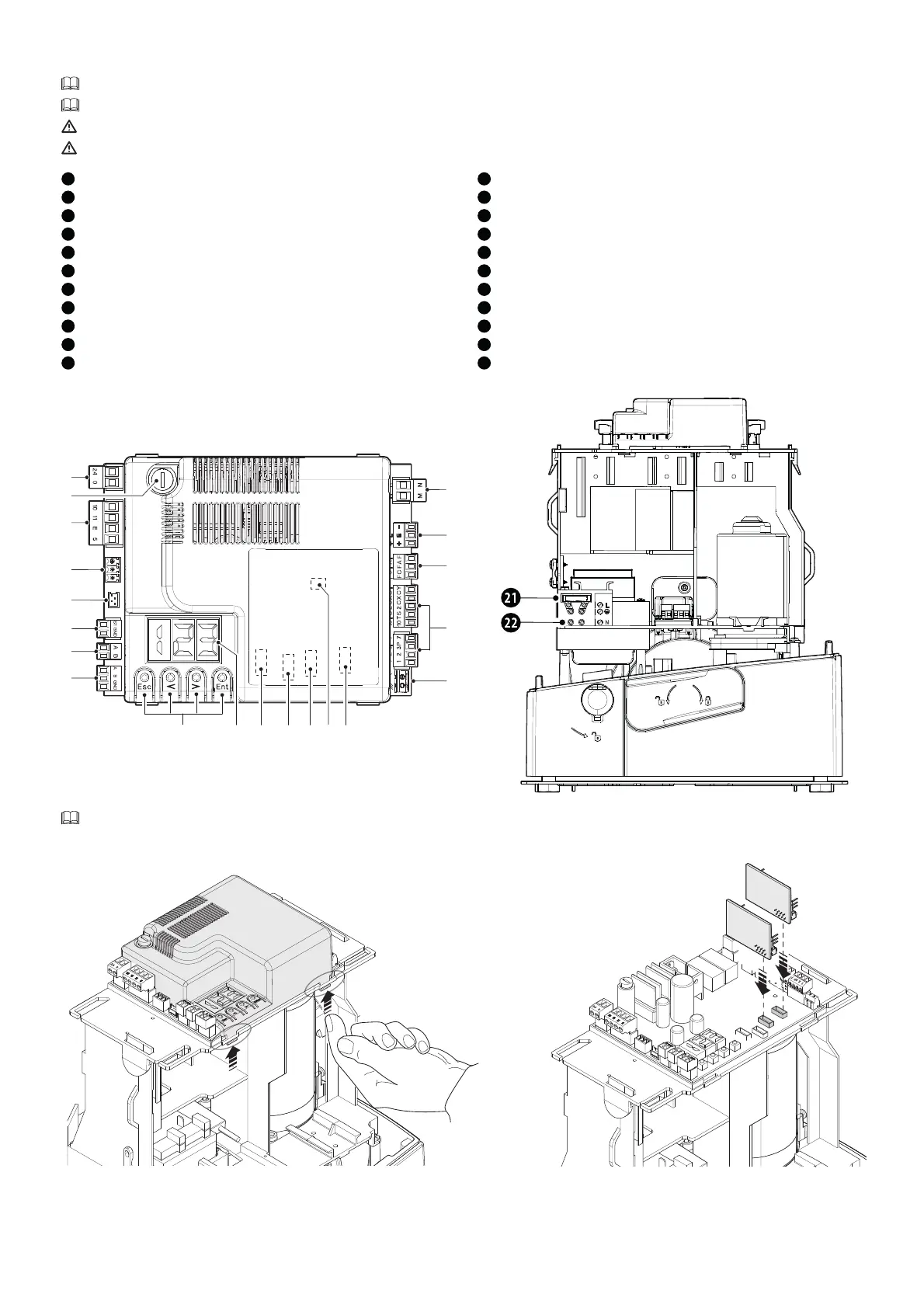

Control board
The functions on the input and output contacts, the time settings and user management are set and viewed on the display.
All connections are protected by quick fuses.
For the system to work properly, before fitting any plug-in card, DISCONNECT THE MAIN POWER SUPPLY and remove any batteries.
Before working on the control panel, disconnect the mains power supply and remove the batteries, if any.
1
Terminal board for connecting the gearmotor
2
Terminal board for connecting the encoder
3
Terminal board for connecting the limit switches
4
Terminal board for connecting control and safety devices
5
Terminal board for connecting the antenna
6
Connector for plug-in radio frequency card (AF)
7
Memory Roll card connector
8
Connector for the R700 or R800 decoding card
9
RSE card connector
10
Connector for the RIOCN8WS module
11
Display
12
Programming buttons
13
Terminal board for connecting the paired function or the CRP
14
Terminal board for connecting the keypad selector
15
Terminal board for connecting the transponder selector switch
16
Connector for the GSM module
17
Terminal board for connecting the RGP1 module
18
Terminal board for connecting the signalling devices
19
Accessories fuse
20
Terminal board for power supply to the control board
21
Line fuse
22
Power supply terminal board
❶
❷
❹
❸
❺
❻❼❽❾❿⓫⓬
⓭
⓮
⓯
⓰
⓱
⓲
⓳
⓴
Remove the card cover before inserting the cards into the connectors.
R700
R800
AF
