CAME BXV06AGS User Manual

p. 17 - Manual FA01442-EN - 12/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions

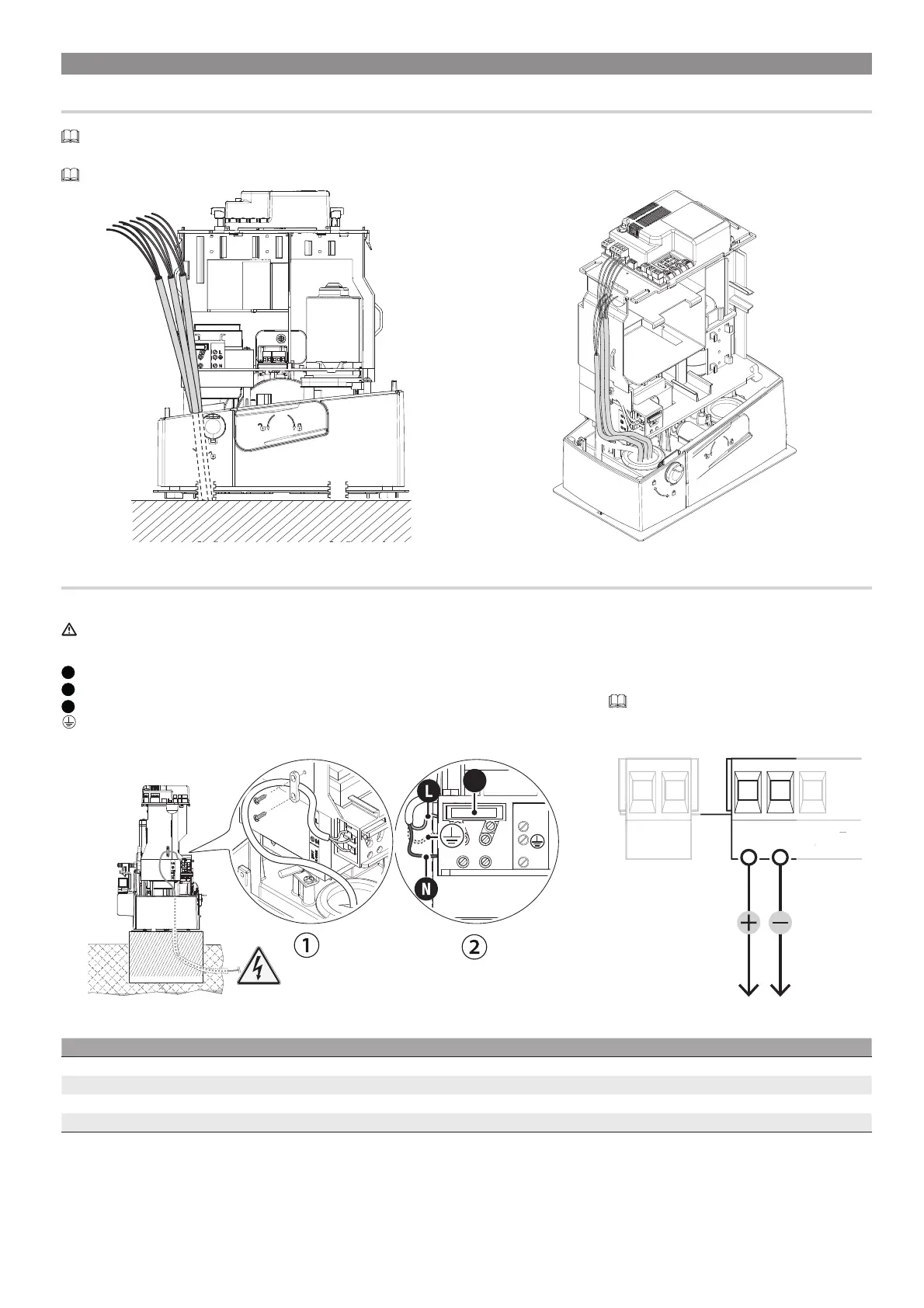

ELECTRICAL CONNECTIONS
Passing the electrical cables
Connect all wires and cables in compliance with the law.
The electrical cables must not touch any parts that may overheat during use (such as the motor and transformer).
Use cable glands to connect the devices to the control panel. One of these must be used exclusively for the power supply cable.
Power supply
Make sure the mains power supply is disconnected during all installation procedures.
Before working on the control panel, disconnect the mains power supply and remove the batteries, if any.
Connecting to the mains (120/230 V AC - 50/60 Hz)
F
Line fuse
L
Phase
N
Neutral
Earth
L
N
F
Power supply output for accessories
The output normally delivers 24 V AC.
The sum of the connected accessories input
must not exceed 40 W.
10 11 E 524 0
E
5
2
4
0
Maximum capacity of contacts
Device Output Power supply (V) Power (W)
Accessories 10 - 11 24 AC 40
Additional light 10 - E 24 AC 25
Flashing beacon 10 - E 24 AC 25
Operator status warning light 10 - 5 24 AC 3
The outputs deliver 24 V DC when the batteries start operating, if they are installed.
