CAME BXV06AGS User Manual

p. 16 - Manual FA01442-EN - 12/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions

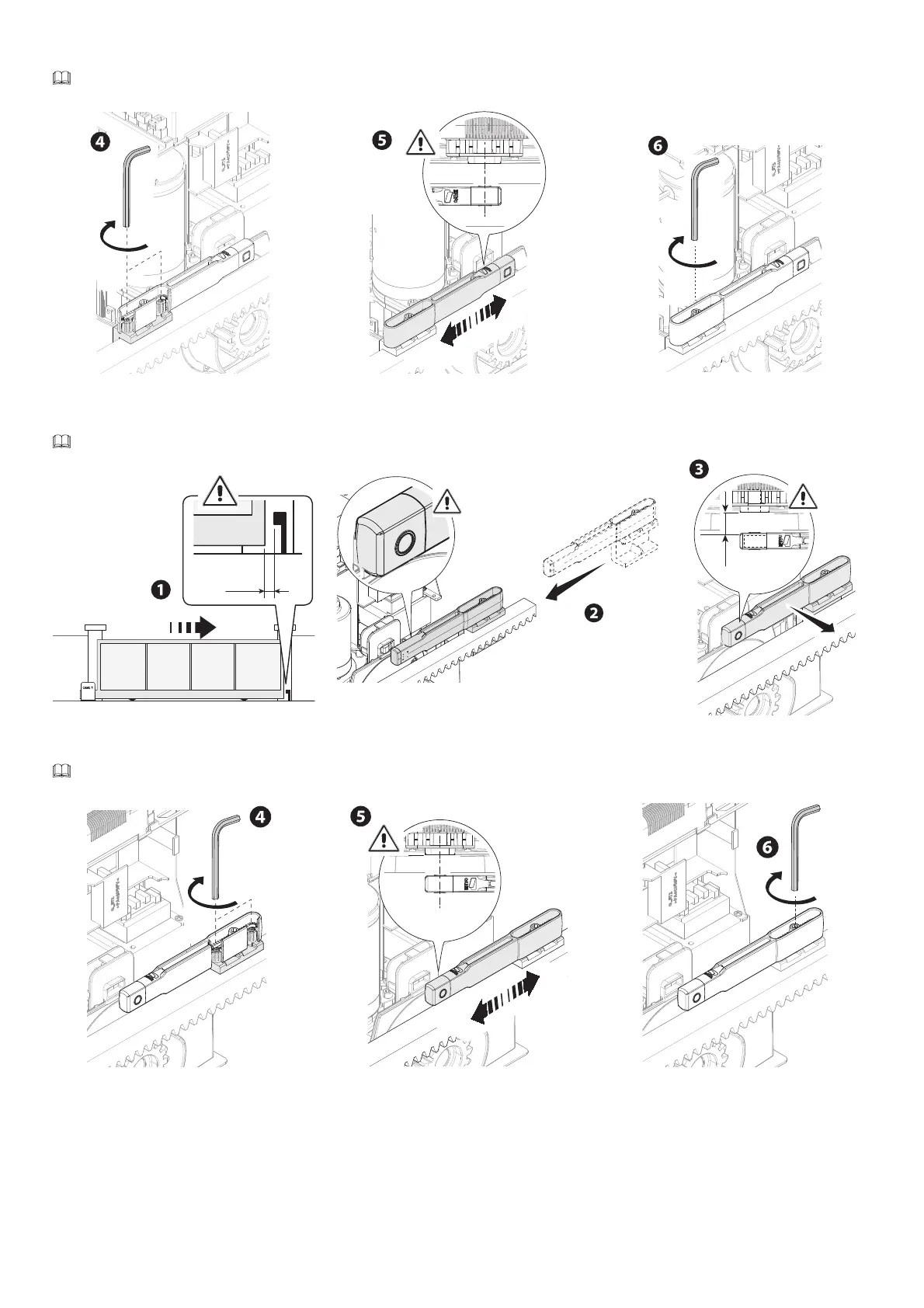

Fasten the support to the rack using the grub screws supplied.
The limit-switch fin magnet must be perpendicular to the magnetic sensor.
Fasten the limit-switch fin using the screw (supplied).
Close the gate.
Insert the magnetic closing limit-switch fin on the rack.
The fin magnet must be between 10 and 30 mm from the magnetic sensor.
~ 20
10 < 30
Fasten the support to the rack using the grub screws supplied.
The limit-switch fin magnet must be perpendicular to the magnetic sensor.
Fasten the limit-switch fin using the screw (supplied).
