4

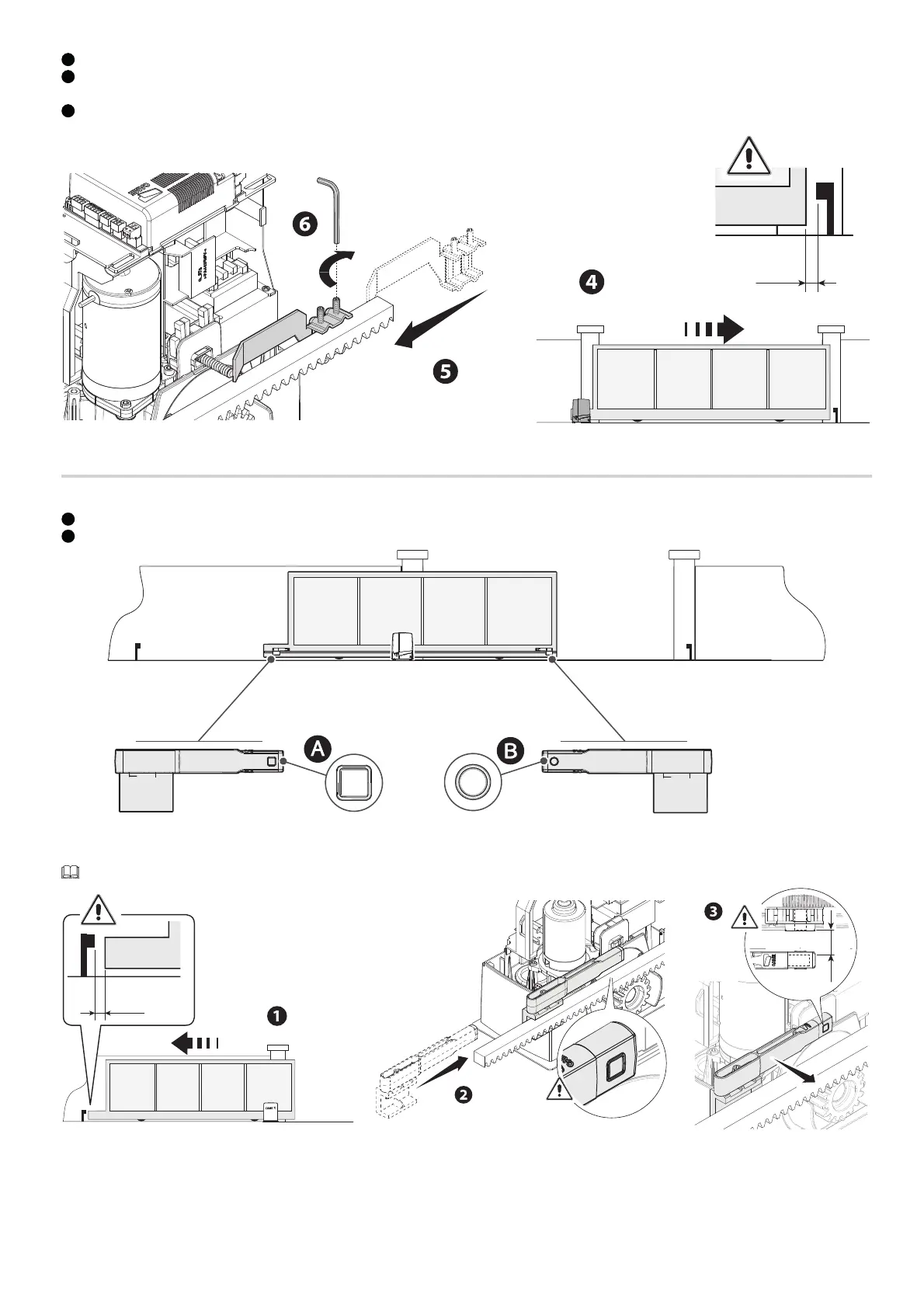

Close the gate.
5
Insert the closing limit-switch tab in the rack.
The spring must trigger the microswitch.
6
Fasten the closing limit-switch tab using the grub screws supplied.
~ 20
Establishing the limit-switch points with magnetic limit switches
* Only for BXV06AGM and BXV10AGM
A
Magnetic limit-switch fins during closing
B
Magnetic limit-switch fins during opening
Open the gate.
Insert the magnetic opening limit-switch fin on the rack.
The fin magnet must be between 10 and 30 mm from the magnetic sensor.
~ 20
