p. 6 - Manual FA01442-EN - 12/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions

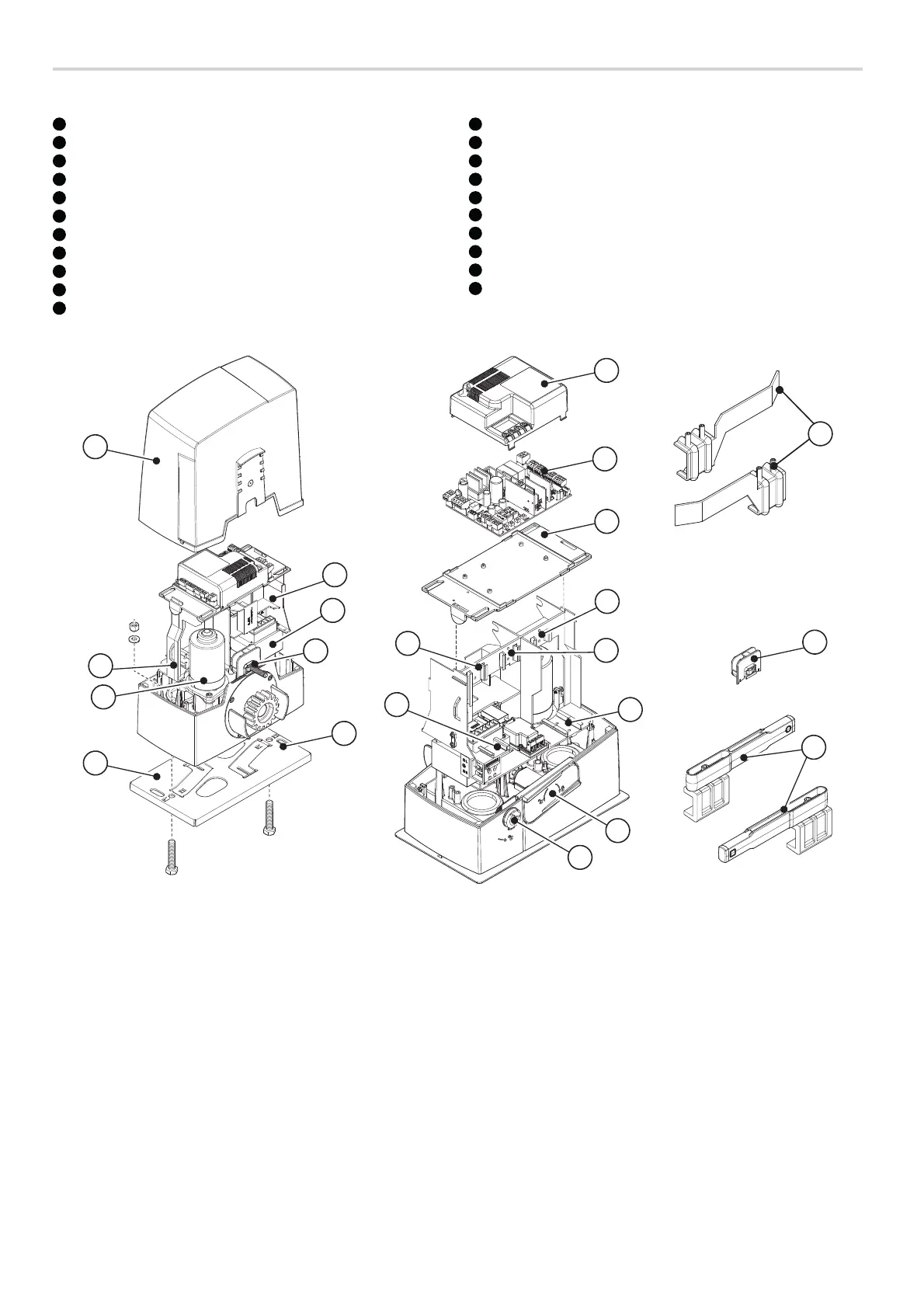

Description of parts
Operator
1
Cover
2
Board-holder support
3
Gearmotor
4
Anchoring plate
5
Housing for two emergency batteries
6
Transformer
7
Mechanical limit switch
8
Release cord hole
9
Housing for the RGP1 module
10
Housing for thermostat with cartridge
11
Board protection cover
12
Control board
13
Control board holder
14
Housing for the RLB card
15
Housing for UR042 module
16
Housing for SMA or RGSM001 sensor
17
Release lever
18
Lock
19
Mechanical limit-switch fins
20
Magnetic limit switch
21
Magnetic limit-switch fins
*Only for BXV06AGM and BXV10AGM
1
11
3
4
10
2
12
13
14
15
16
17
18
9
5
6
7
8
21
20
19
