CAME BXV10AGS User Manual

p. 8 - Manual FA01442-EN - 12/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions

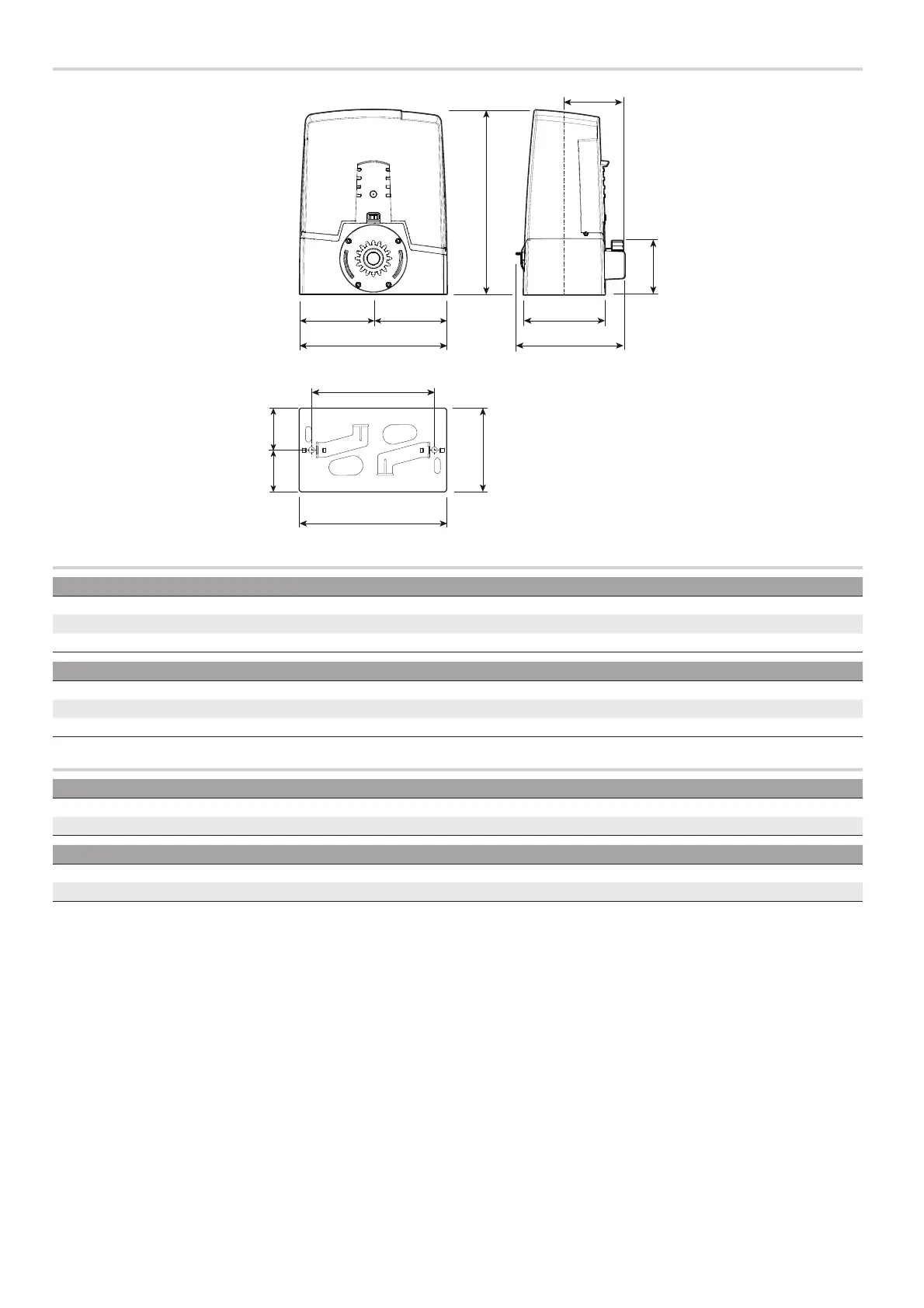

Size
363
212
160
106
117
290
145 145
300
170
250
85 85
Usage limitations
MODELS BXV04AGS BXV06AGS BXV08AGS BXV10AGS BXV04RGS BXV06RGS BXV08RGS BXV10RGS
Pinion module 44444444
Maximum gate-leaf length (m) 14 18 20 20 14 18 20 20
Maximum gate-leaf weight (kg) 400 600 800 1000 400 600 800 1000
MODELS BXV06AGM BXV10AGM BXV04ALS BXV06ALS BXV08ALS BXV10ALS
Pinion module 4 4 4 4 4 4
Maximum gate-leaf length (m) 18 20 14 18 20 20
Maximum gate-leaf weight (kg) 600 1000 400 600 800 1000
Fuse table
MODELS BXV04AGS BXV06AGS BXV08AGS BXV10AGS BXV04RGS BXV06RGS BXV08RGS BXV10RGS
Line fuse 1.6 A-F 1.6 A-F 1.6 A-F 1.6 A-F 3.15 A-F 3.15 A-F 3.15 A-F 3.15 A-F
Accessories fuse 2 A-F 2 A-F 2 A-F 2 A-F 2 A-F 2 A-F 2 A-F 2 A-F
MODELS BXV06AGM BXV10AGM BXV04ALS BXV06ALS BXV08ALS BXV10ALS
Line fuse 1.6 A-F 1.6 A-F 1.6 A-F 1.6 A-F 1.6 A-F 1.6 A-F
Accessories fuse 2 A-F 2 A-F 2 A-F 2 A-F 2 A-F 2 A-F

CAME BXV10AGS Specifications

General

Brand	CAME
Model	BXV10AGS
Category	Gate Opener
Language	English
