CAME G4040E - Boom Balancing - Adjustment; Adjusting Spring Tension; Final Spring Checks

45°
45°
4
5
p.
11
11 - Manual code:
FA0 0132
- E N
-EN v.
2
2 08/2016
© CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.
Fasten the counter nut and lock the gearmotor again.
 Check the proper working state of the spring.
With the boom raised vertically the spring is not taut.
With the boom lowered horizontally the spring is taut.
Hook the eyelet rod to the anchoring rod .

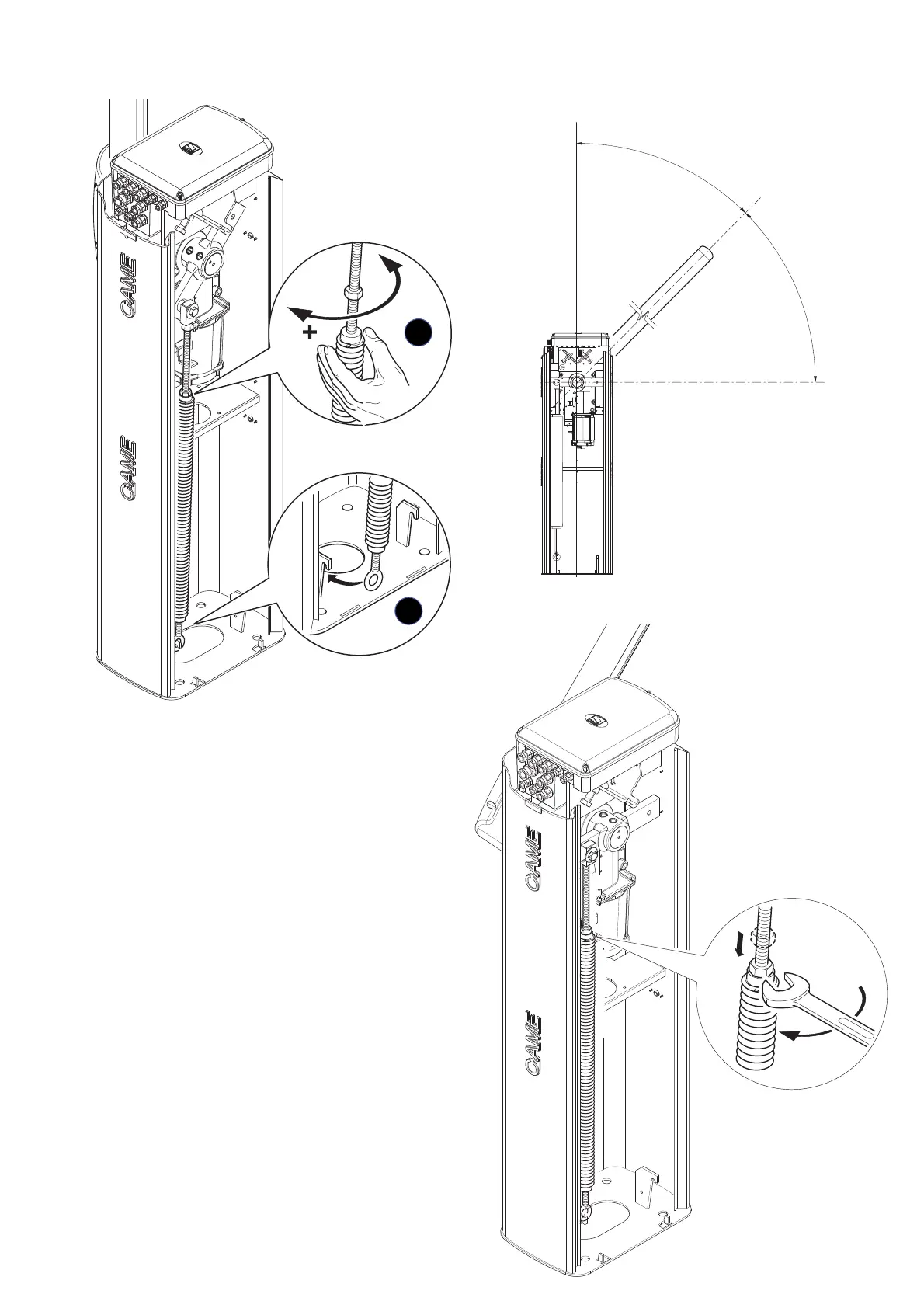

Release the gearmotor and manually turn the spring to increase or reduce traction . The boom should stabilize at 45°.
