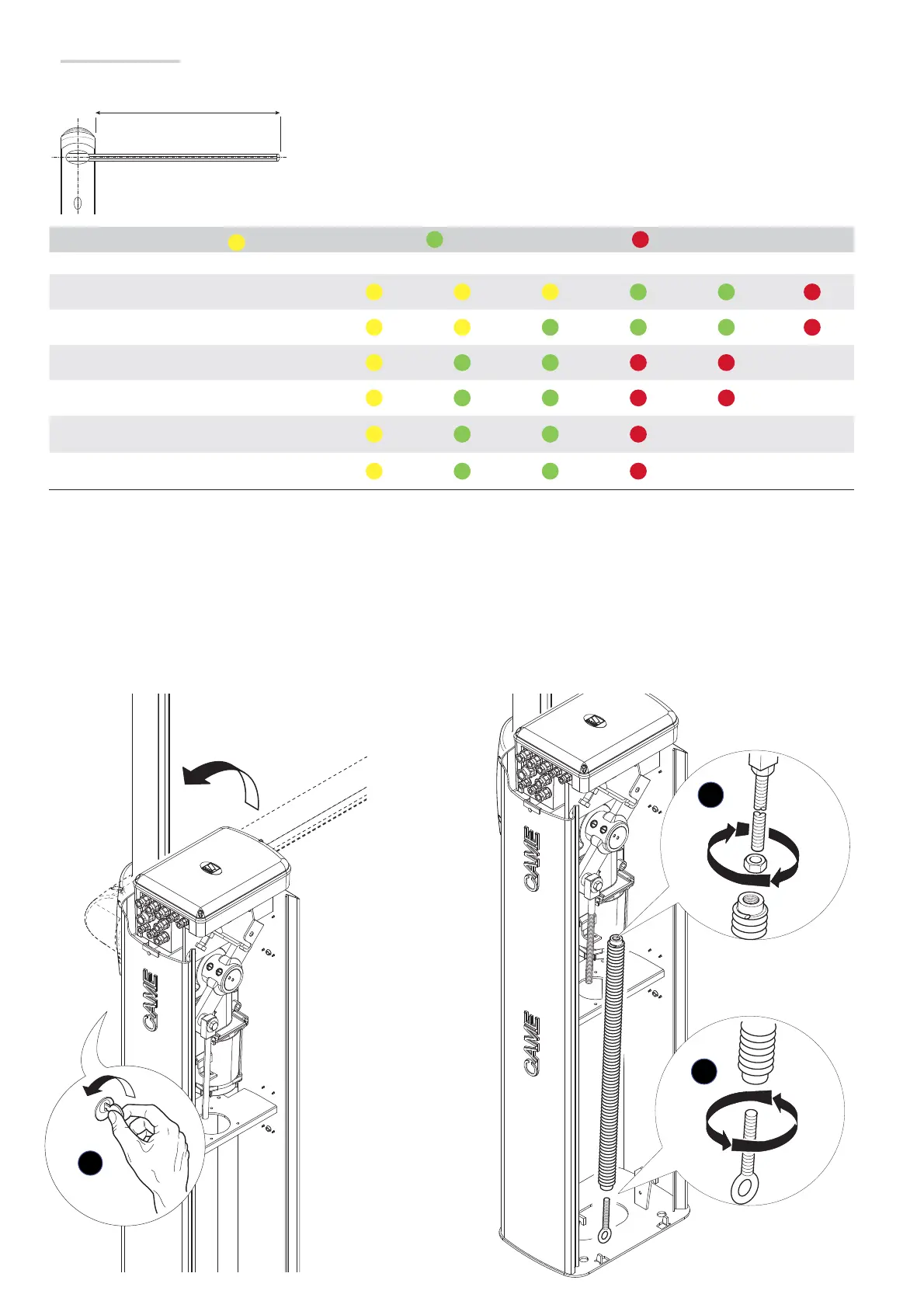

Balancing the boom
Before balancing the boom, check on the table below for congruences between the chosen spring, accessories and passage clearance.
⚠
WARNINGS!
001G02802 Cannot be used on barriers fitted with the 001G0465 skirt or 001G02808 swing rest
001G02808 For passage widths of up to 3 m.
001G02807 MUST be used with passage widths exceeding 3 m.
001G0465 - 001G02808 Cannot be used together.
Release the gearmotor and position the boom vertically . Lock the gearmotor again.
Tighten the eyelet rod under the spring . The spring should be screwed to the anchoring pin .
PASSAGE CLEARANCE 8(max 3.75 m)
 The boom includes the transparent groove cover and end cap.
A
Spring 001G02040 Ø 40 mm
B
Spring 001G04060 Ø 50 mm
C
Spring 001G06080 Ø 55 mm
BOOM LENGTH (m) 1,5 ÷ 1,75 1,75 ÷ 2,25 2,25 ÷ 2,75 2,75 ÷ 3,25 3,25 ÷ 3,5 3,5 ÷ 3,75
Boom with shock-proof profile
A A A B B C
Boom with shock-proof profile and 001G028401
luminous cord
A A B B B C
Boom with skirt 001G0465
A B B C C
Boom with 001G028401 luminous cord and
001G0465 skirt
A B B C C
Boom with shock-proof profile and 001G02808 swing
rest
A B B C
Boom with shock-proof profile, 001G028401 luminous
cord and 001G02808 swing rest
A B B C
