UNI5931 M8x12
UNI5931 M8x20
L
1
3
4
2
UNI6954 ø2,9x13
UNI6954 ø3,9x19
p.
9 - Manual code:
FA0 0132
-EN v.
2 08/2016
© CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.

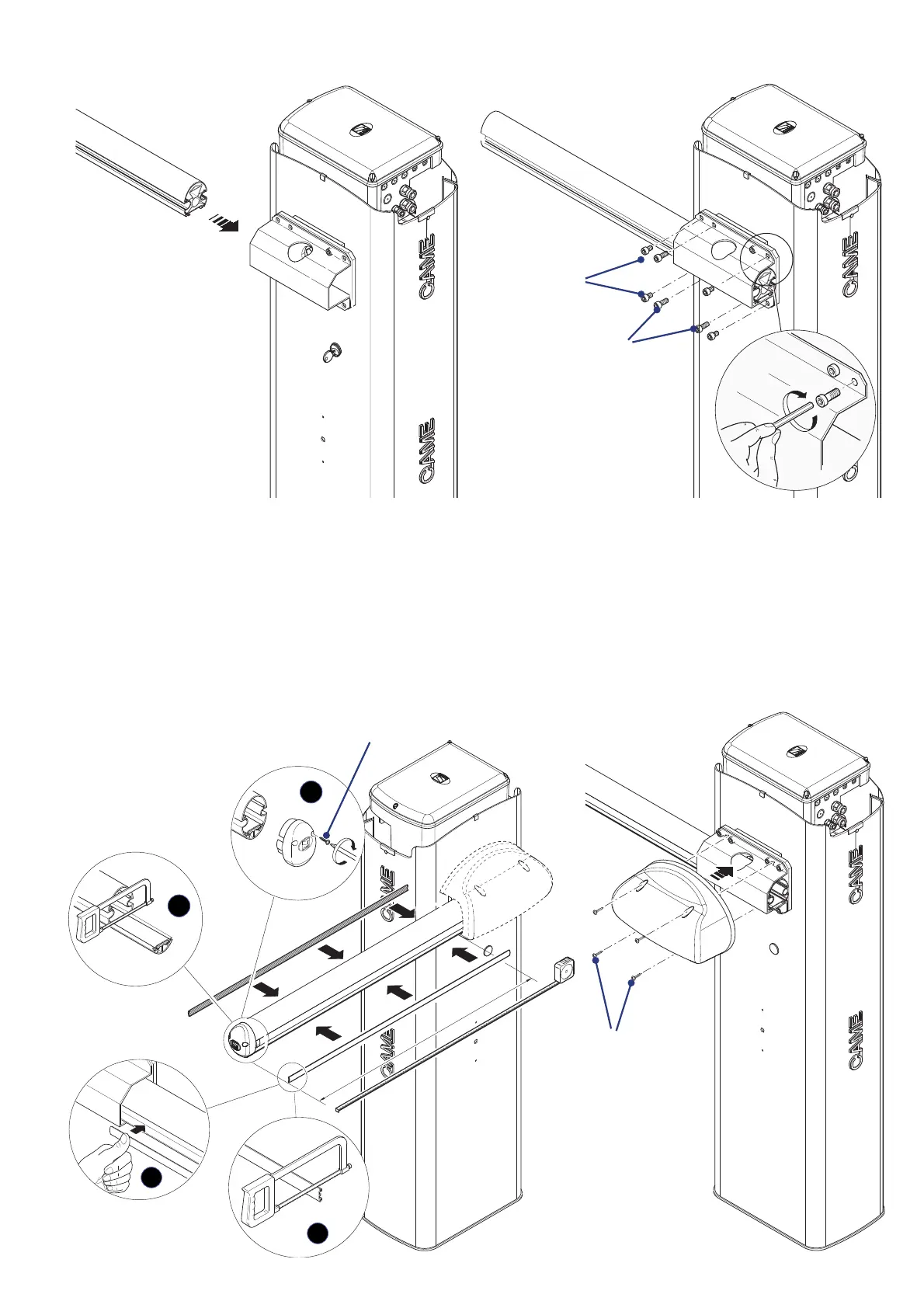

Fit the boom into the boom-attachment cover and fasten it using the screws.
Cut the groove cover profiles to measure, and fit them into the grooves on both sides of the boom .
Fit the rubber anti-shock profile into the boom and cut off any excess .
Fasten the endcap using the screws .
Fit the anti-shearing protective cover onto the boom-attachment cover and fasten it using the screws .
