UNI5931 M8x20

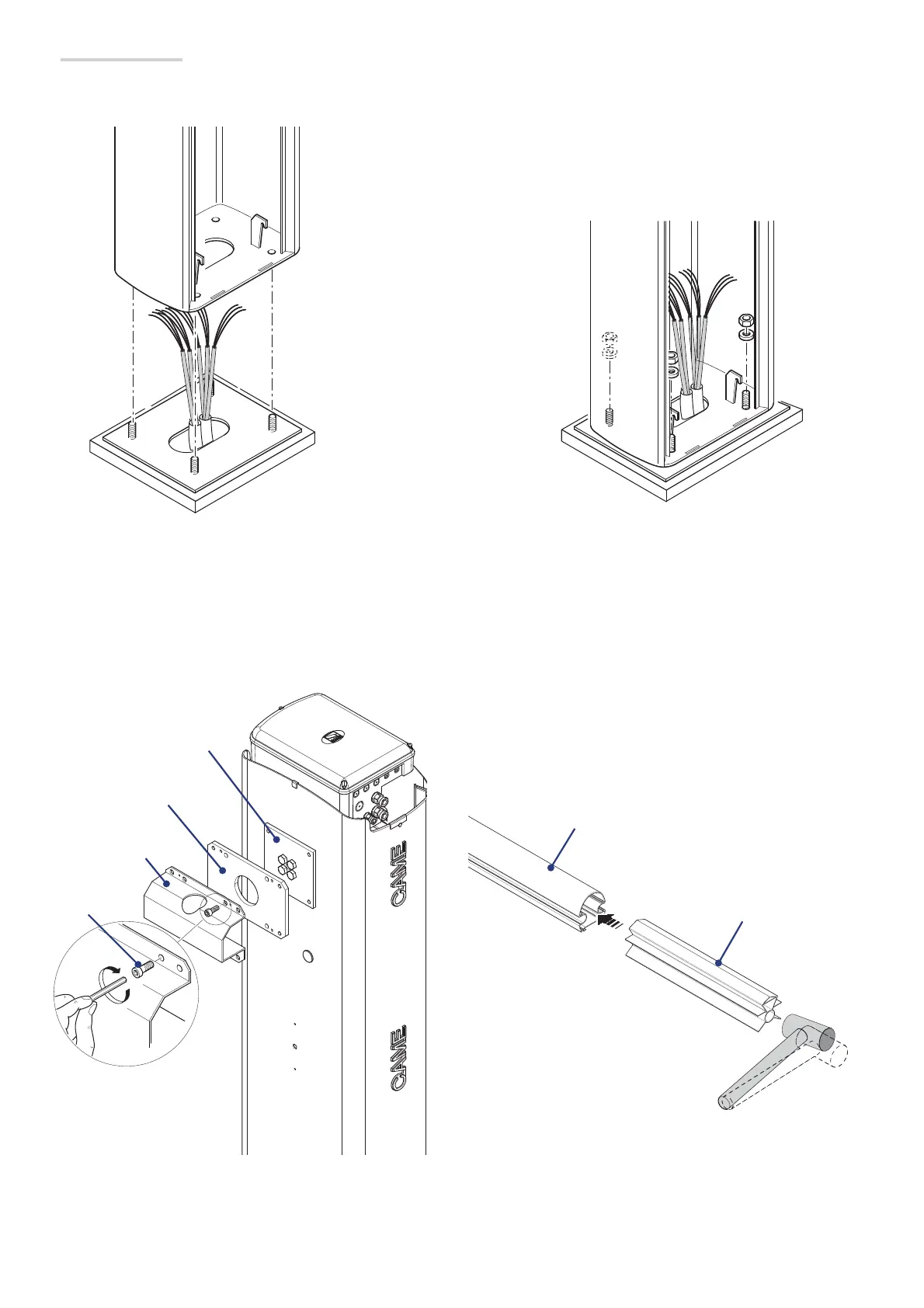

Assemble the boom-attaching cover, the mid plate and motor-shaft plate with a screw. Leave the screw loose to then facilitate fitting the boom.
⚠
To mount with the G03750 boom, you will need to fit the G03756 reinforcement.
Attachment plate
Mid plate
Boom-attachment
cover
Installing the barrier
 The cabinet should be installed with the inspection hatch on the most accessible side to make any adjusting easier.
Place the cabinet onto the anchoring plate and fasten it using nuts and washers.
