CAME G4040E User Manual

10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
A B GND A B S1 GND
CAME
ACCESS CONTROL
AF
R700
R800
p.
14
14 - Manual code: FA0 0132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.
Red
Black
White
Blue
ONLY CLOSE function from control device (NO contact).
Warning: in MAINTAINED ACTION mode, the control
device must be connected to 2-4.

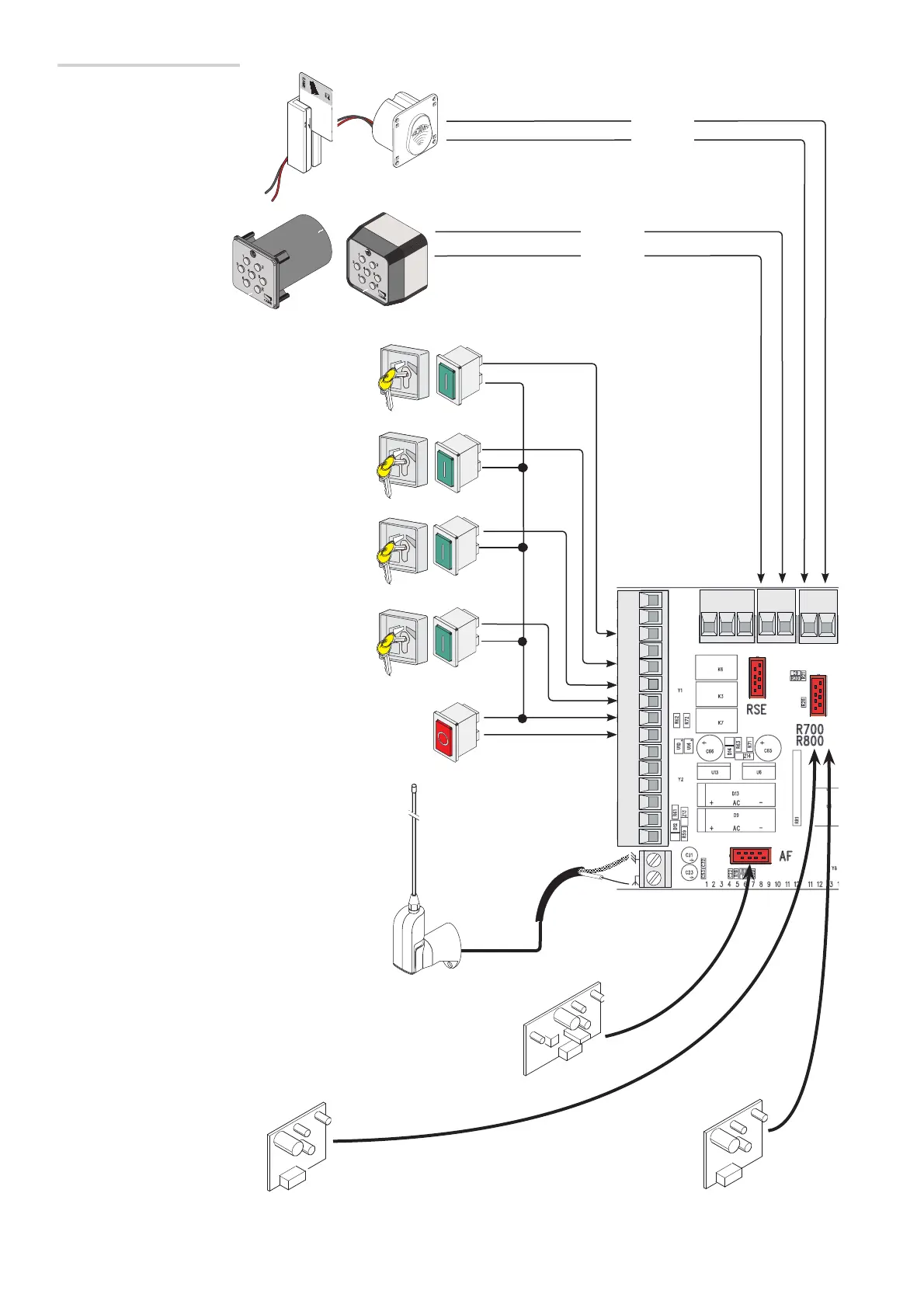

Command and control devices
Antenna with RG58 cable
STOP button (NC contact). It is for stopping the barrier while
excluding automatic closing. To resume movement, press the
control button or one on another control device.
 If unused, select 0 (Deactivated) from function F1.
OPEN-CLOSE-INVERT function (step-step) from control
device (NO contact).
Keypad selector
Transponder or card reader
 Fit the R700 decoding card for
recognition of the TSP00 sensor or the
LT001 card reader.
 Fitthe R800 decoding card for
recognition of the keypad selector.
WARNING! For the system to work properly, before fitting any plug-in card, such as the AF or R800 one, YOU MUST CUT OFF THE
MAIN POWER SUPPLY and, if present, disconnect any batteries.


Fit the AF card to control the barrier
with a transmitter.
Warning! OPEN ONLY function from control device with NO
contact. Connect only to paired or alternate installations.
(See PAIRED CONNECTION or ALTERNATE CONNECTION).
OPEN ONLY function from control device with NO contact.
Warning: in MAINTAINED ACTION mode, the control
device must be connected to 2-3.
