CAME G4040E User Manual

17
19
18
4
5
14 13 9 7
16
2
10
11
12
6
21
3
8
22
3
26V 0V
230
0
20
1
15
p.
12
12 - Manual code: FA0 0132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.

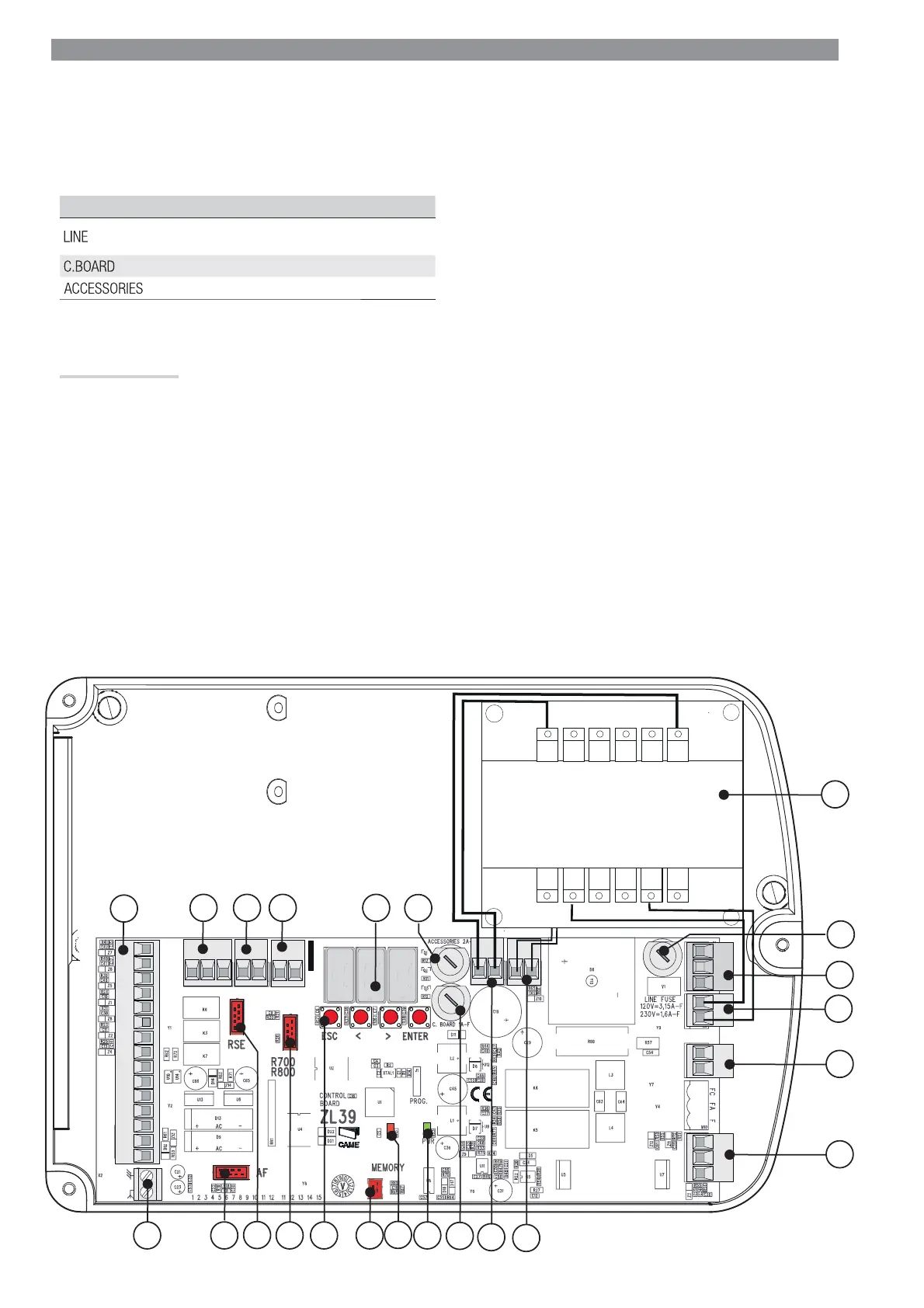

Description of parts
1. Transformer
2. Power supply terminals
3. Transformer terminals
4. Gearmotor terminal
5. Encoder terminals
6. Control board fuse
7. Power supply on warning LED
8. Programming warning LED
9. Memory roll board connector
10. Programming buttons
11. Connector for the R700 / R800 card
12. RSE board connector
13. AF card connector
14. Antenna terminal
15. Terminals for control and safety devices
16. Terminals for paired / alternate / CRP connections
17. Keypad selector terminal
18. Terminals for transponder devices
19. Display
20. Accessories fuse
21. Line fuse
22. Overheating protection terminals
ELECTRICAL CONNECTIONS
⚠
Warning! Before working on the control panel, cut off the main current supply and, if present, remove any batteries.
Power supply to control panel and control devices: 24 V AC/DC.
Functions on input and output contacts and time and user management details, are set up and viewable on the control panel's display.All connections
are quick-fuse protected.
FUSE TABLE ZL39
- Line
3.15 A-F = 120 V
1.6 A-F = 230 V
- Card
1 A-F
- Accessories
2 A-F
