Page 22 - Manual FA01383-EN - 04/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

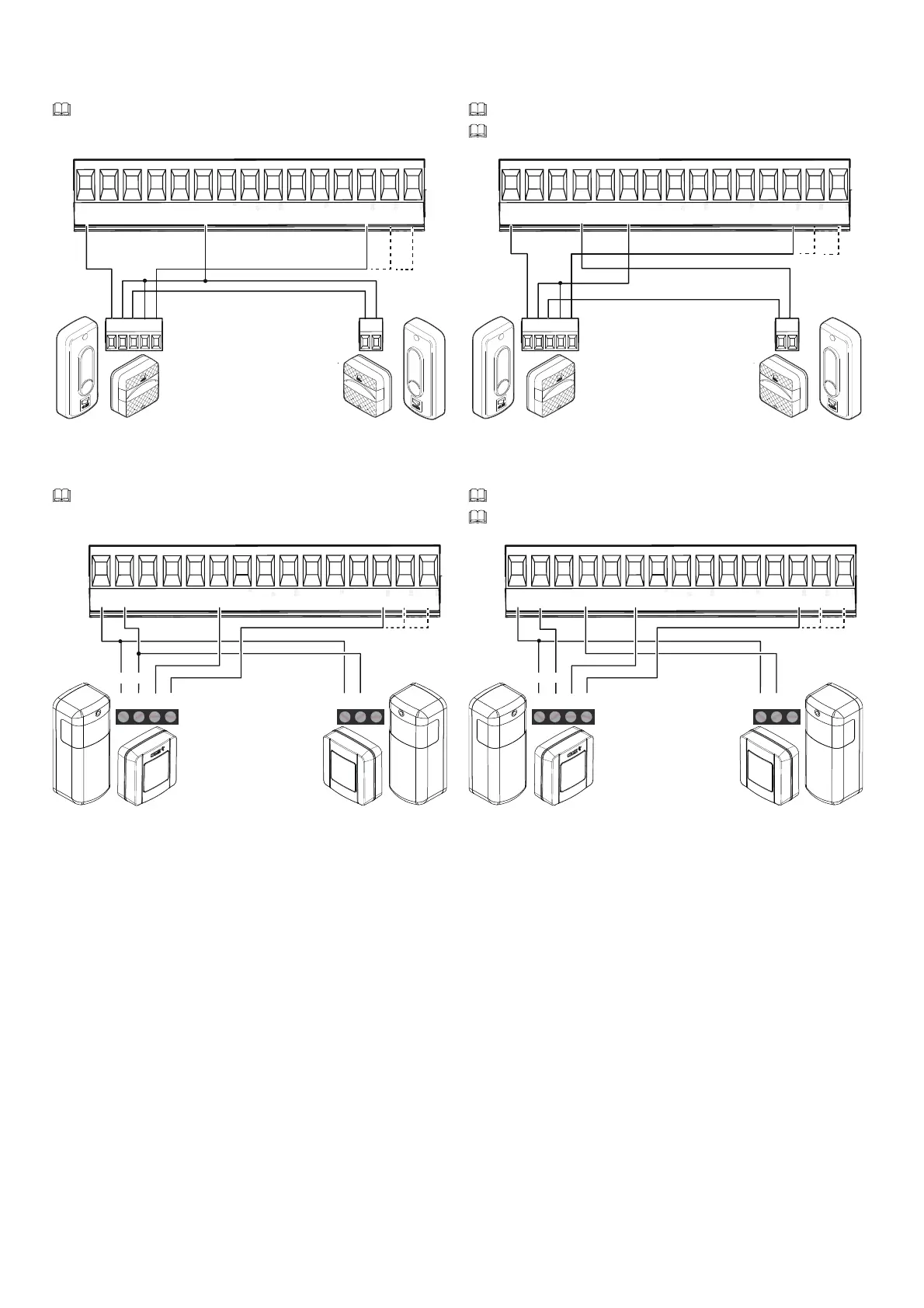

DIR / DELTA-S photocells
Standard connection
Multiple photocell pairs can be connected.
DIR / DELTA-S photocells
Connection with safety test
Multiple photocell pairs can be connected.
See function [F5] Safety devices test.
10 11 E1 TS 1 2 3 3P 4 5 7 2 CX CY CZ
+
10
-
2TXCNC TX 2
RX TX
10 11 E1 TS 1 2 3 3P 4 5 7 2 CX CY CZ
+
10
-
2TXCNC TX 2
RX TX
DXR/DLX photocells
Standard connection
Multiple photocell pairs can be connected.
DXR/DLX photocells
Connection with safety test
Multiple photocell pairs can be connected.
See function [F5] Safety devices test.
10 11 E1 TS 1 2 3 3P 4 5 7 2 CX CY CZ
RX
TX
10 11 OUT
10 11 SY
+ -
10 11 E1 TS 1 2 3 3P 4 5 7 2 CX CY CZ
RX
TX
10 11 OUT
10 11 SY
+ -
