CAME XVP S - Description of Parts

Page 3 - Manual FA01812-EN - 06/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
PRODUCT DATA AND INFORMATION
XVP F (840AA-0020) -Recessed video intercom entry panel with touch screen for IP360 system.
XVP S (840AA-0030) -Wall-mounted video intercom entry panel with touch screen for IP360 system.

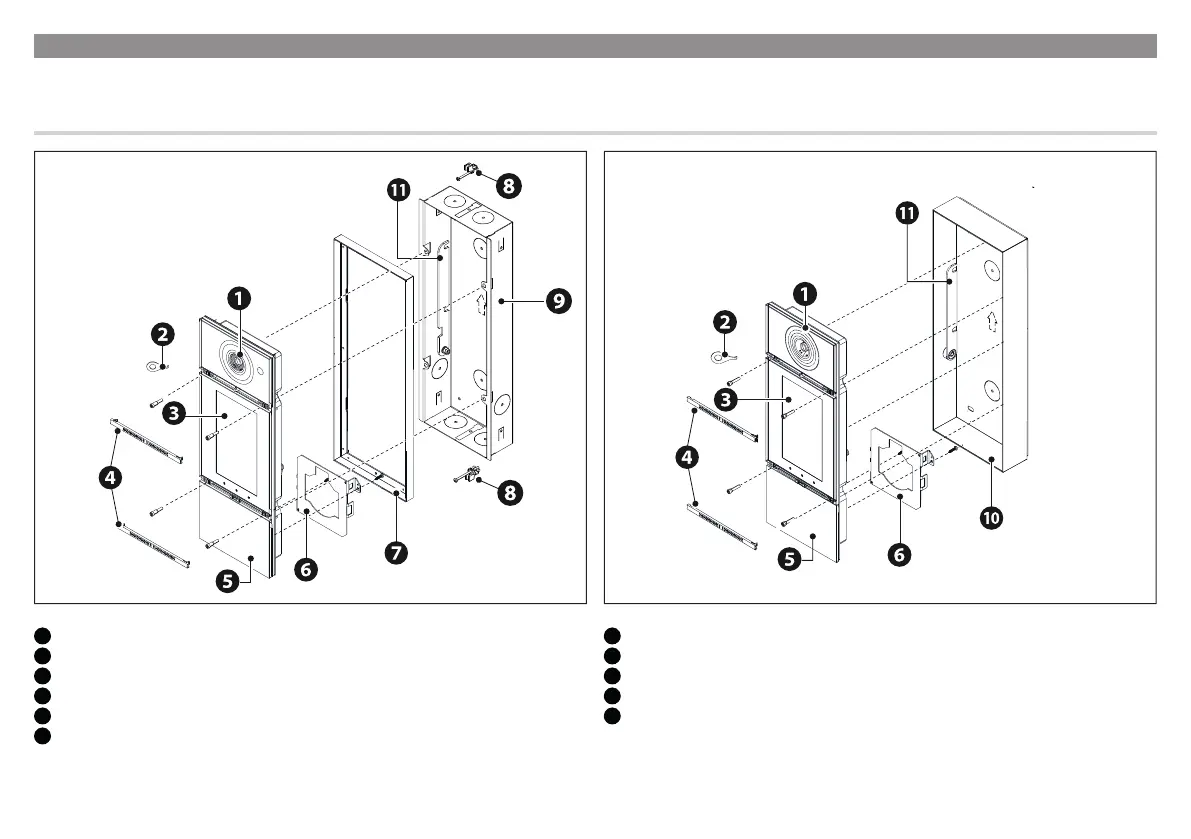

Description of parts
XVP-F XVP-S
1
Video camera lens
2
Front frame key
3
Touch-screen display
4
Front cover strips
5
Front frame
6
RFID module bracket
7
Front perimeter frame
8
Terminals with screw for recessed plate mounting
9
Back box
10
Wall-mounting back
11
Bracket
