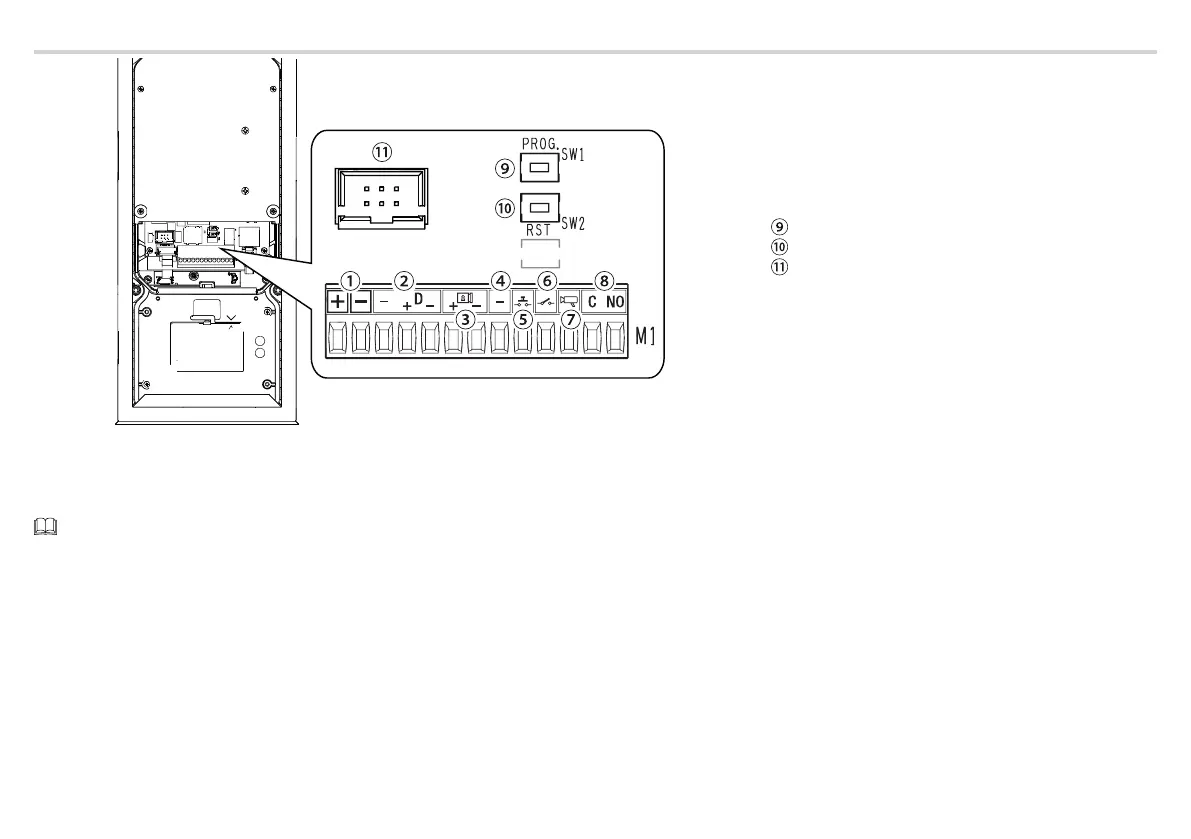

Function of terminals
①
Local power supply input 12-24 V DC
②
CAN BUS data line
③
Max. 12V - 1A electric lock
④
Earth
⑤
Door release button (NO)
⑥
Open door contact input (NC)*
⑦
Entry panel enabling output
⑧
Max relay contact 1 A 30 V (AUX 2)
PROG button
RESET button
FLAT cable connector
*Active to earth
RESET button
The [RESET] button allows you to restart the device.
This operation does NOT delete any programming
