CAME ZT6 Installation Manual

13
All the data and information contained herein is considered subject to change at any time and at our discretion.
ENGLISH
LED of radio code signal
N.B.: if the code needs to be changed, repeat the sequence described above
LED of radio code signal
AF radio frequency board
AF radio frequency board
CH 2
CH 1
FIG. 1
FIG. 2

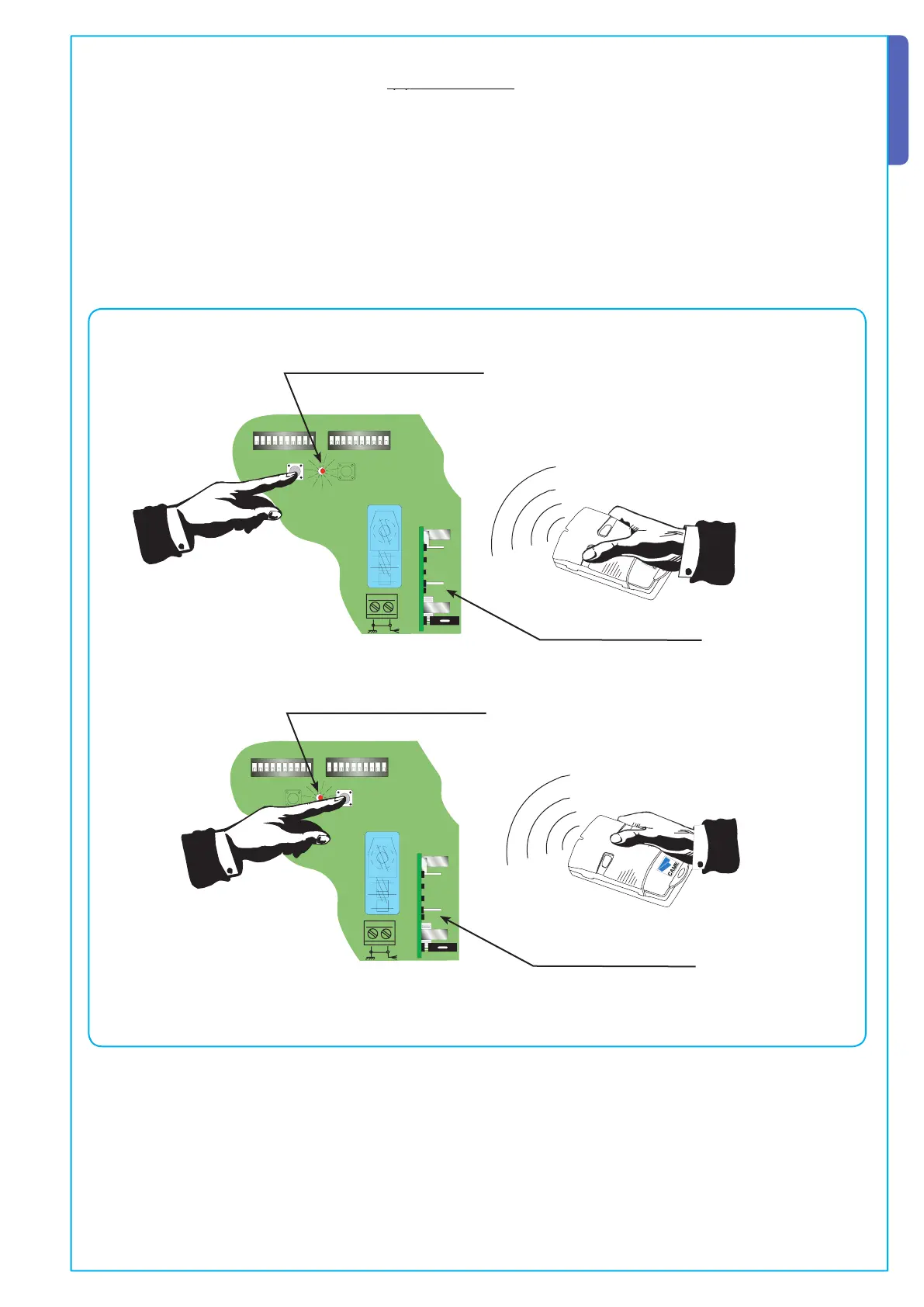

- Keep the “CH1” key pressed on the base card and after the LED signal lights up, send a command using the transmitter key.
The LED will fl ash briefl y to signal that the code has been memorized (see fi g. 1).
- Perform the same procedure with the “CH2” key, associating it with another transmitter key (fi g. 2).
CH1 = Channel for direct commands to a control panel function (“open only” / “open-close-reverse” or “open-stop-close-stop”,
depending on the positions set for dip-switches 2 and 3).
CH2 = Channel for direct commands to an auxiliary device connected to B1-B2.
(C)
(C)
CODE STORAGE
