NOTE
1. DC IN: POWER (DC12/24V or plugpack) input
2. RJ45 Network Cable In (24" only): For internet connection via a modem or router.
3. CVBS Out: This mirrors the Video Signal from Input 12 (A/V) ONLY. The output is
Video only; not audio.
4. Line Out: Audio output for external devices such as Head Units, amplifiers etc.
5. HDMI 1 Input: HDMI in.
6. HDMI 2 Input: HDMI in.
7. RF Input(DVB-T2): Connect to external antenna to receive DTV signal in DTV mode.
8. Coaxial Out: Digital Audio output for surround sound/sound bars etc.
9. AV Input: Composite Video & Audio in (A/V)
10. Headphone Jack: Headphone output jack.
11. USB: Use for mouse or keyboard connection; Install apps; For media playback when
Media is the TV’s selected source.
: Please, make sure the inputs and outputs have solid connections before
connecting power.
1
4
2
5
3
7
8
6

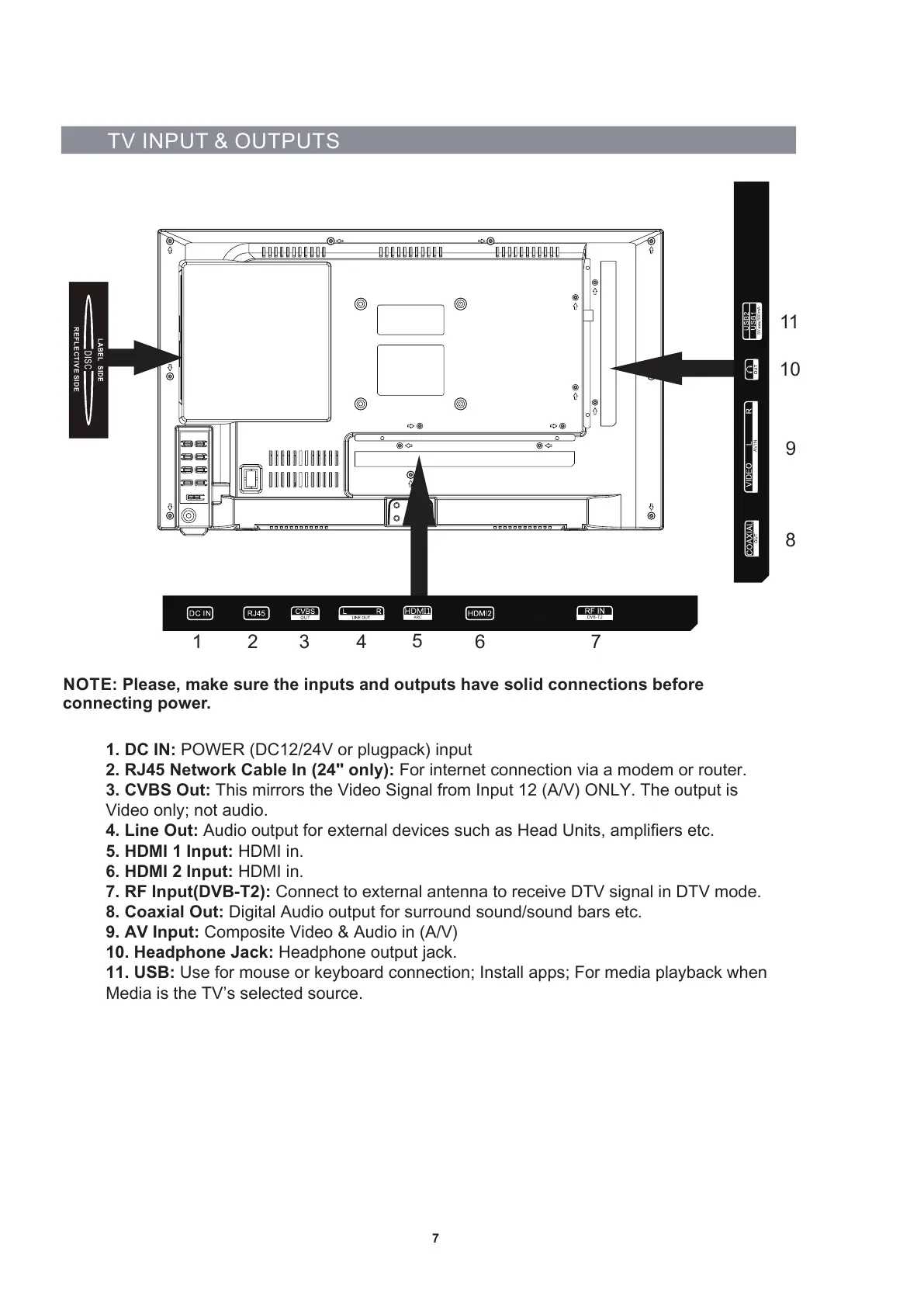

TV INPUT & OUTPUTS
7
9
REFLECTIVE SIDE
HDMI1
5V 500mA
AV IN
DVB-S2
DVB-T2
ARC
