ENGINEERED & PROCESS VALVES
02/2011 / IOM-WKM-GATE-PRS-01
3
Installation, Operation and Maintenance Manual
BILL OF MATERIALS (2” - 4”) MODEL “M”
ITEM DESCRIPTION
1. Body
2. Thermal Relief Valve System
2A. Needle Valves
2B. Female Connector
2C. Check Valve
2D. Male Connector
2E. Tubing
2F. Needle Valve Caution Tag
3. Drain Fitting
4. Seats
5. Seat Skirts
6. Gate and Segment Assembly
6A. Gate
6B. Segment
6C. Springs
6D. Spring Pins
7. Bonnet Seal
8. Bonnet
9. Studs
10. Nuts
11. Packing Set
12. Packing Retainer Nut
13. Packing Retainer Lock Nut
14. Bearings
15. Stem Nut
16. Packing Fitting Assembly
17. Packing Plug
18. Stem
19. Stem Pin
20. Bearing Housing
21. Capscrews
22. Bearing Housing Grease Fitting
23. Weather Seal
24. Handwheel
25. Stem Protector
26. Rod Wiper
27. Indicator Rod
28. Caution Tag for Trapped Pressure
29. Nameplate

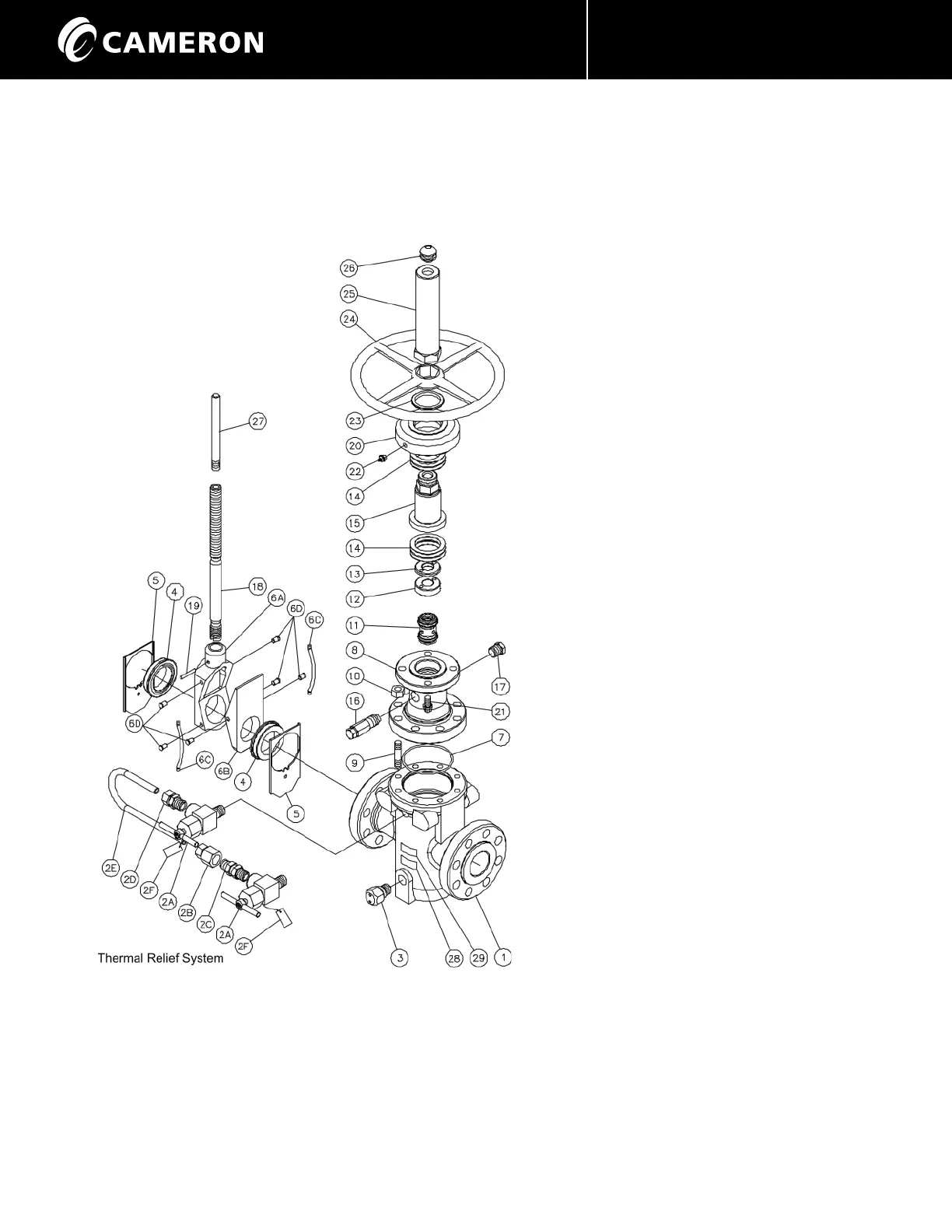

Figure 1 - WKM Pow-R-Seal Gate Valve 2”- 4” ASME Class 300 - 1500
