ENGINEERED & PROCESS VALVES
4
02/2011 / IOM-WKM-GATE-PRS-01
Installation, Operation and Maintenance Manual
BILL OF MATERIALS (6” - 12”) MODEL “E1A” & “E1C”
ITEM DESCRIPTION
1. Body
2. Thermal Relief Valve System
2A. Needle Valves
2B. Female Connector
2C. Check Valve
2D. Male Connector
2E. Tubing
2F. Needle Valve Caution Tag
3. Vent, Drain and Seat Lube Fitting
4. Seats
5. Seat O-Rings
6. Gate Seat Skirt
7. Segment Seat Skirt
8. Gate and Segment Assembly
8A. Gate
8B. Segment
8C. Lever Lock Arm Pins
8D Lever Lock Arms
9. Bonnet Seal
10. Bonnet
11. Studs
12. Nuts
13. Packing Set
14. Packing Fitting Assembly
15. Packing Plug
16. Stem
17. Yoke Tube
18. Yoke Tube Seal
19. Packing Nipple
20. Elbow 45°
21. Hex Head Bolts
22. Pull Plug
23. Bearing Housing
24. Washer
25. Gasket
26. Hex Head Bolts
27. Bearing Housing Grease Fitting
28. Bearings
29. Stem Nut
30. Stem Nut O-Ring
31. Handwheel
32. Handwheel Keys
33. Stem Protector Washer
34. Stem protector
35. Rod Wiper
36. Indicator Rod
37. Caution Tag for Trapped Pressure
38. Nameplate

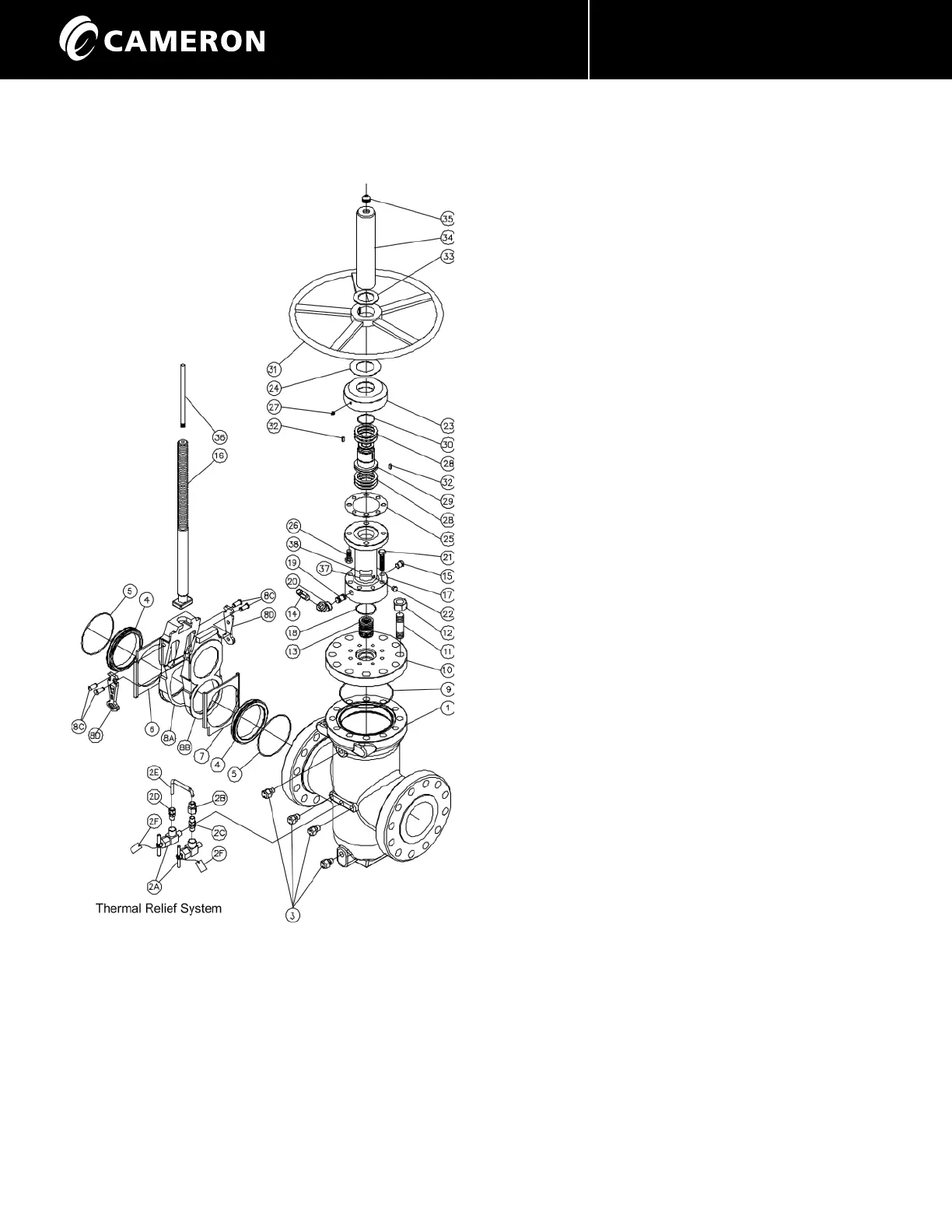

Figure 2 - WKM Pow-R-Seal Gate Valve 6”- 12”
ASME Class 300 - 900
Note: On Model “E1C” the Packing Set is located
in the Bonnet and therefore the Packing Injec-
tion Port is on the O.D. of the Bonnet.
