Cameron TYPE 31 - Stem Designs for 4 and Larger Sizes

ENGINEERED VALVES
4" and Larger Stem Design
ITEM DESCRIPTION
1 Nut
2 Disc Spring
3 Keyed Shaft
4 Stud
5 Stem Seal Gland
6 Stem seal
NOTES
Stem Designs

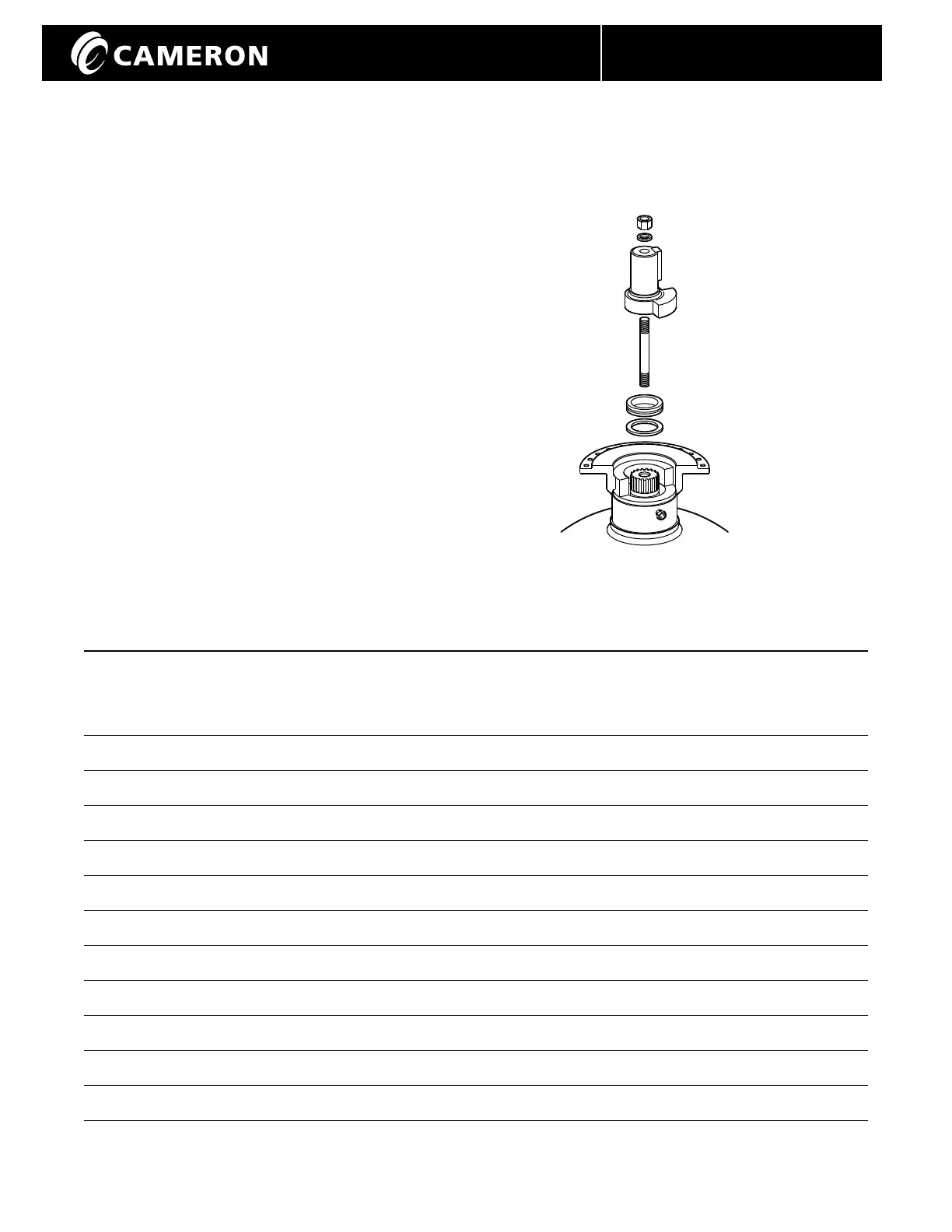

Figure 16 - 4"and Larger Stem Design.
Installation, Operation and Maintenance Manual IOM-CAM-BALL-T31
