ENGINEERED VALVES
1
Bill of Materials
ITEM DESCRIPTION
1 Keyed Shaft
2 Upper Stem Seal*
3 Upper Body
4 Lower Stem Seal
5 Stem Bearing
6 Dog
7 Ball
8 Seat Ring
9 Lip Seal
10 End Connection
11 Lower Body

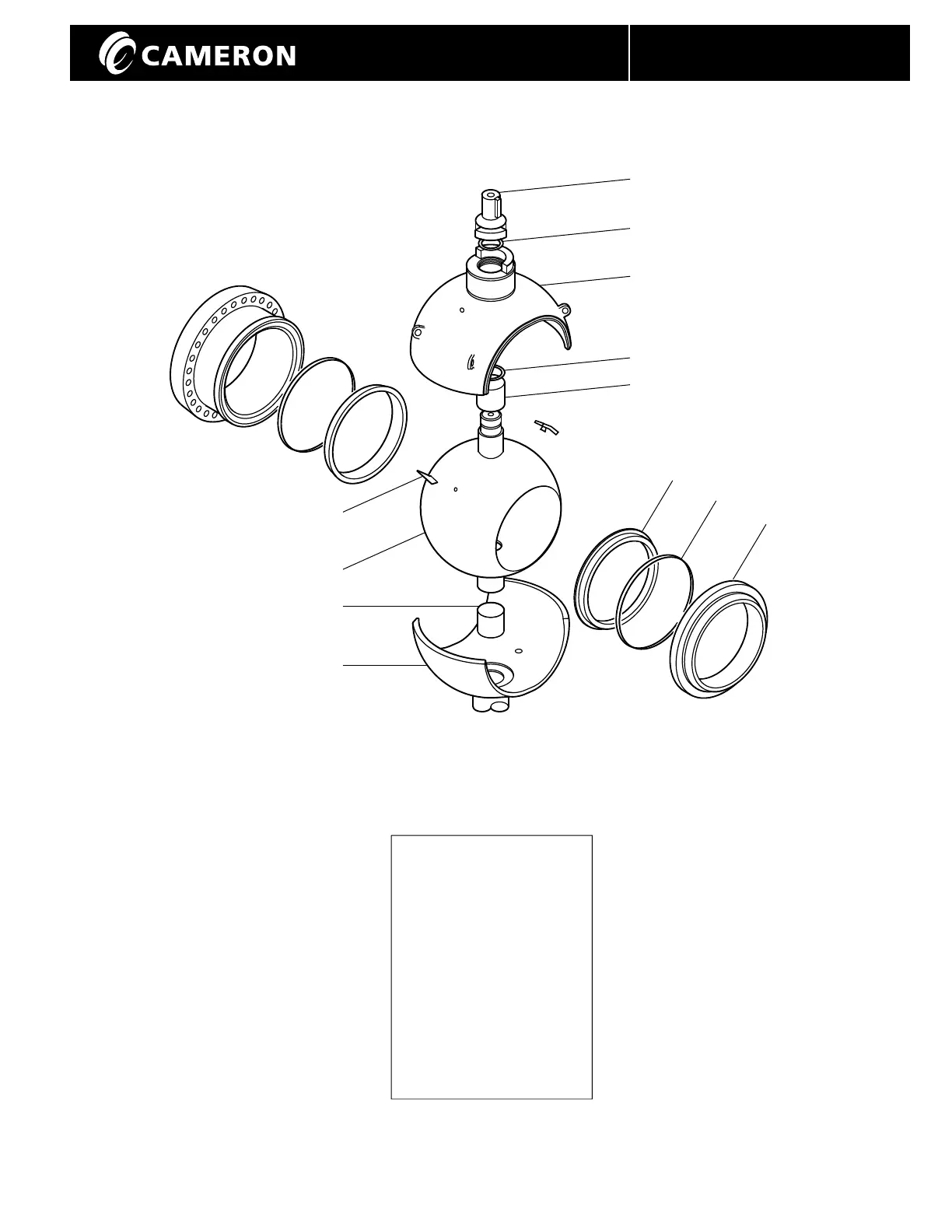

Figure 1 - Cameron Fully Welded Body Ball Valve Components.
*Details of stem are on pages 15 and 16.
1
2
3
4
5
6
8
7
11
9
10
5
Installation, Operation and Maintenance Manual IOM-CAM-BALL-T31
