Camp Chef PG24MZG - Install Handle

summer and winter. In the summer the gap should be
approximately 1-1/2 in. In the winter the gap should be
approximately ½ in.
5. Tighten all hardware.
Install Handle
1. Install the handle as shown in Fig 3.
2. Tighten all hardware.
PG24 HANDLE
PG HANDLE BEZEL
HANDLE HEAT DEFLECTOR
HANDLE SCREW
FIG. 3
Install Hopper Handle
1. Install hopper handle as shown in Fig. 4.
HOPPER HANDLE (1)
PGC24-12
M6 RUBBER WASHER (2)
M6 FENDER WASHER (2)
M6 LOCK WASHER (2)
M6 X 15 BOLT (2)
FIG. 4
Install Hopper Lid
1. Install hopper lid as shown in Fig. 5.
HOPPER LID (1)
M4 X 10 SCREW (2)
FIG. 5

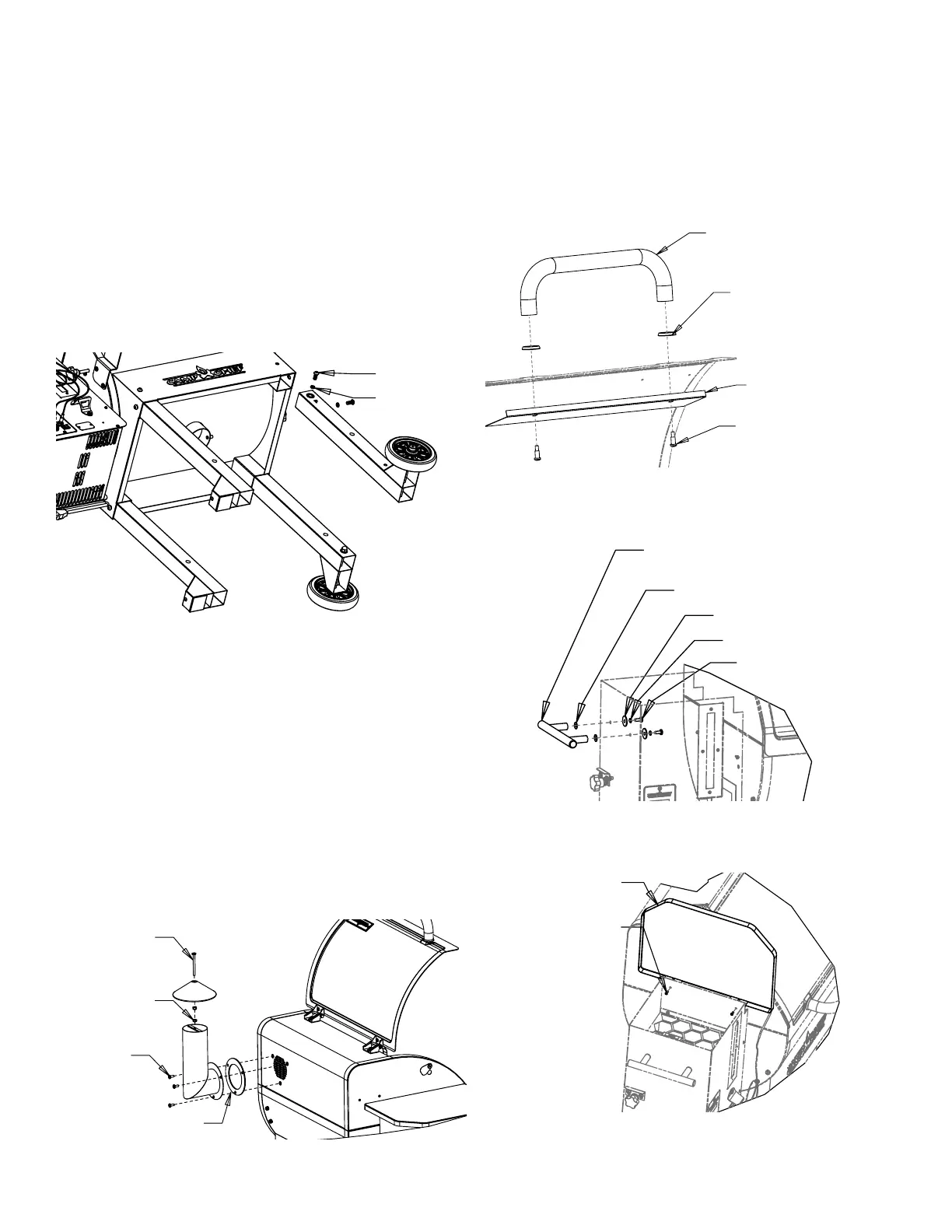

Assembly Instructions
Remove all loose parts from the inside of the grill and
hopper. Lay a blanket or piece of cardboard down to protect
the grill.
Attach the Legs
With the help of another person flip the grill upside down
on the blanket or cardboard. The grill lid and hopper lid will
swing open when doing this so be careful not to damage
the lids. The grill may also want to roll on its lid so one
person should hold the grill steady while the other person
assembles the bottom legs and wheels.
1. Assemble the legs as shown in Fig. 1. Finger tighten
hardware.
M8 X 20 BOLT
M8 LOCK WASHER
FIG.1
2. With the help of another person, stand the grill upright.
Be careful as the lid on the hopper and grill will close as
the grill is stood upright.
3. Tighten all hardware assembled in the previous steps.
Attach Chimney and Chimney Cap
1. Install chimney to grill as shown in Fig 2. Make sure to
install the gasket between the grill and the chimney.
2. Tighten all hardware.
3. Install 1/4-20 x 3 Bolt through chimney cap and secure
using Qty (1) 1/4-20 nut. Thread second nut onto bolt
leaving approximately 1.5 in to the top of the cap. Thread
cap assembly down into the chimney bracket until the
lower nut hits the bracket. See Fig 2.
M8 X 20 BOLT
M8 LOCK WASHER
M6 X 15 SCREW
CHIMNEY GASKET
1/4-20 x 3 BOLT (1)
1/4-20 NUT (2)
FIG. 2
4. The height of the chimney cap can be adjusted for
