Camp Chef PG24MZG - Grease Bucket; Installation Instructions

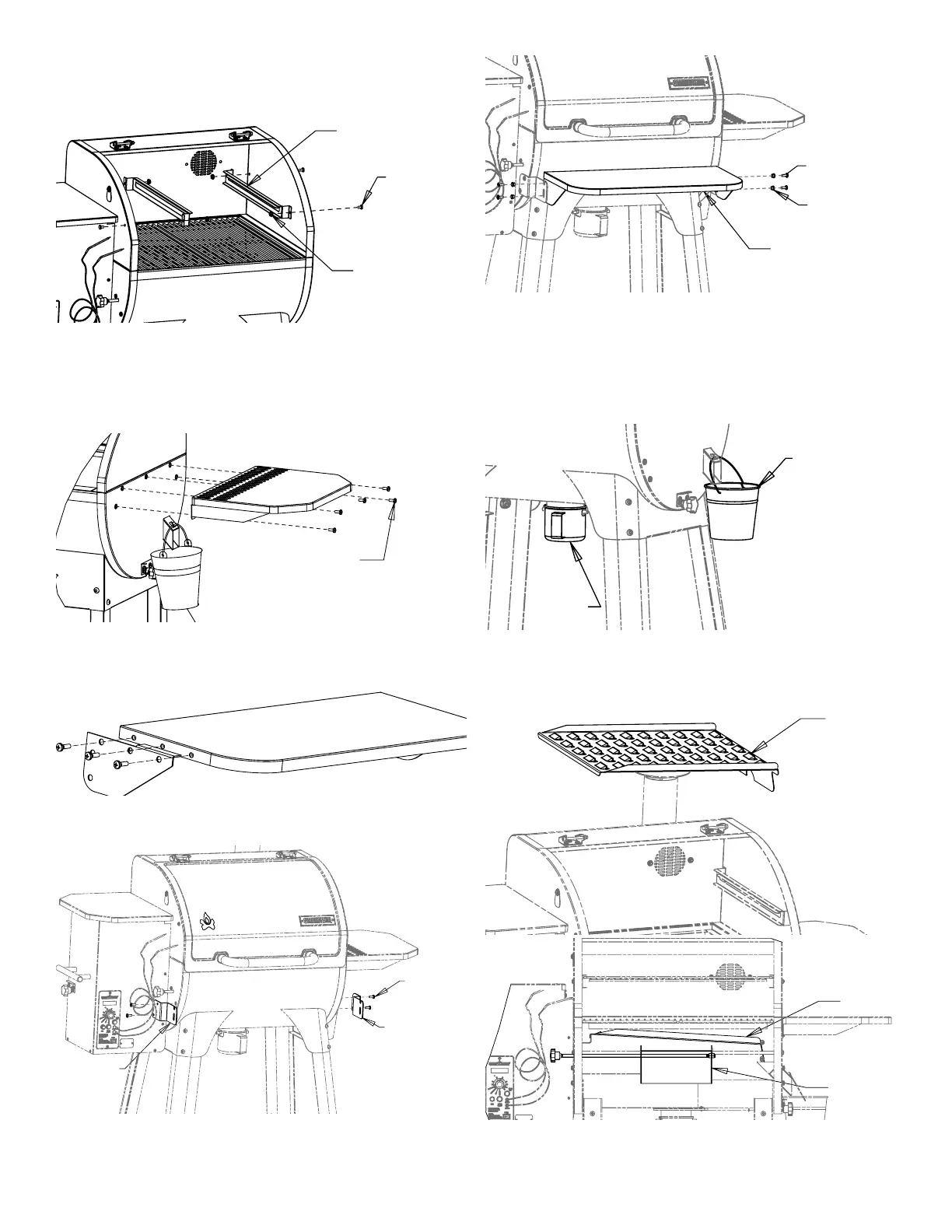

Install Shelf Brackets
1. Install the brackets as shown in Fig 6.
2. Tighten all hardware.
M6 X 10 SCREW (4)
M6 FLANGE NUT (4)
UPPER GRATE BKT (2)
PG24ZG-2
FIG. 6
Install Shelf
(Optional-Do not install if installing sear box)
1. Install shelf as shown in Fig 7.
2. Tighten all hardware
M6 HANDLE SCREW
HANDLE DEFLECTOR
M6 X 15 SCREW
GREASE BUCKET
ASH CUP
FIG. 7
Installation Instructions
1. Install side shelf brackets as shown in Fig 8.
FIG. 8
2. Remove the screws from the side of the grill.
3. Install the brackets as shown in Fig 9.
M6 X 20 BOL
T (4)
RIGHT BRACKET (1)
PGFS24-1
LEFT BRACKET(1)
PGFS24-2
FIG. 9
4. Install the front shelf to the brackets as shown in Fig 10.
M6 X 20 BOLT (4)
SCREW BUSHING (4)
PGFS24-4
SHELF (1)
PGFS24-3
FIG. 10
Grease Bucket
1. Hang grease bucket from tube as shown in Fig 11.
Ash Cup
1. Install Ash Cup as shown in Fig 11. Never use grill
without Ash Cup in place.
ASH CUP
GREASE BUCKET
FIG. 11
Install Drip Tray
1. Install the Drip Tray as shown in Fig 12 and Fig 13.
DRIP TRAY
FIG. 12
HEAT DEFLECTOR
DRIP TRAY
HEAT DEFLECTOR
DRIP TRAY
FIG. 13
