Warming Rack and Cooking Grate

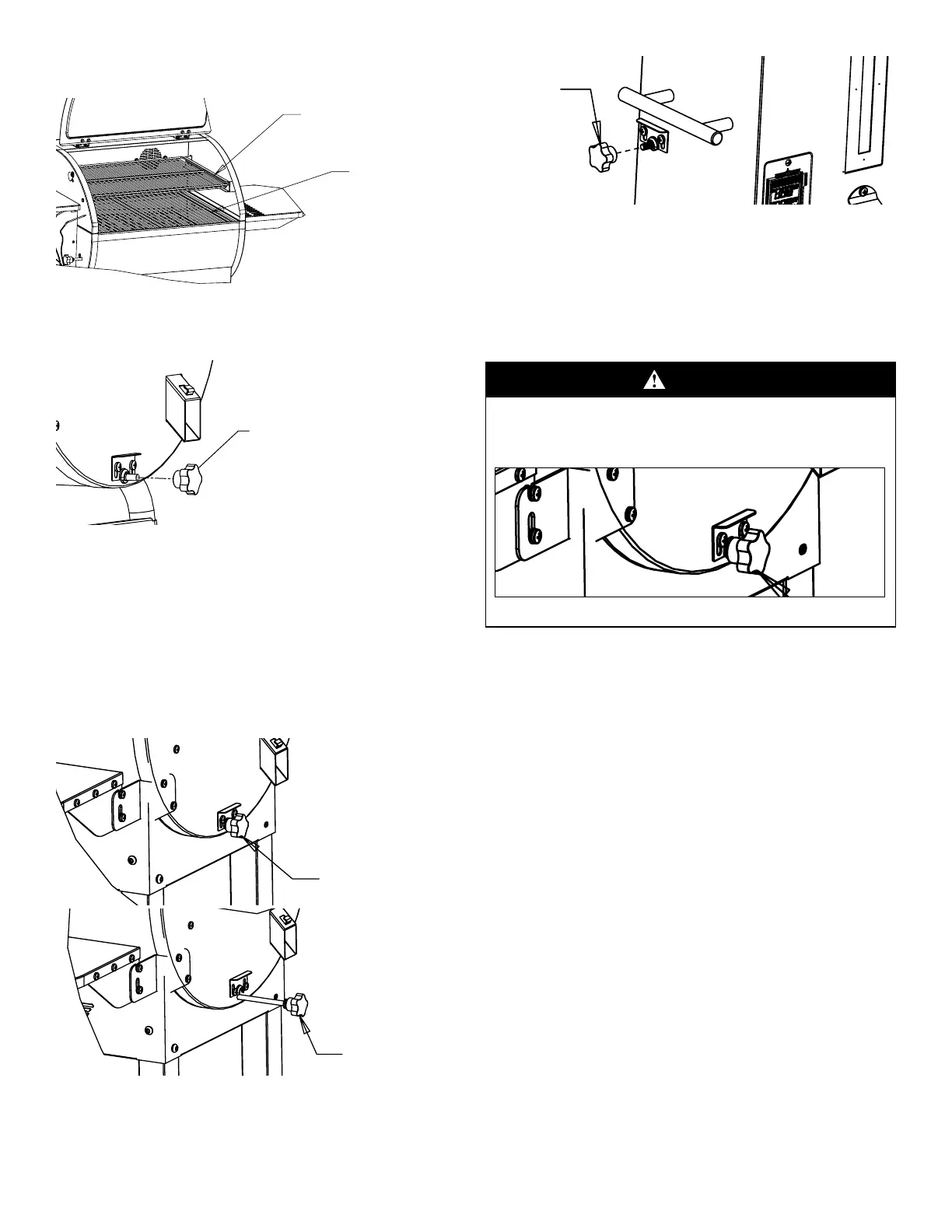

1. Install the cooking grate as shown in Fig 14.
PG24ZG-1
UPPER GRATE(2)
PG24-70
LOWER GRATE(1)
CLEANOUT PORT CLOSED
CLEANOUT PORT OPEN
FIG. 14
Clean-out Knob Assembly Installation
Hand tighten the burner clean-out knob as shown in 15
FIG. 15
PG24-9 (1)
BURNER PULLOUT KNOB
Clean-out Port Knob
1. Clean-out Port knob must be pushed in when grill is on.
Make sure pullout lock is pushed down and locks the
knob to prevent inadvertent opening of the clean-out port.
See Fig 16.
2. Lift pullout lock and pull clean-out port knob to empty
ash into ash cup. See Fig 17
3. See instructions for burner clean-out.
WARMING RACK
COOKING GRATE
CLEANOUT PORT CLOSED
FIG. 16
WARMING RACK
COOKING GRATE
CLEANOUT PORT CLOSED
CLEANOUT PORT OPEN
FIG. 17
Hopper Clean-out Knob Assembly Installation
Hand tighten the hopper clean-out knob as shown 18.
PG24-9 (1)
PULLOUT KNOB
FIG. 18
Burner Clean-out
Before each use the burner should be cleaned out by lifting
the pullout lock and pulling the clean-out port knob on the
right side of the grill to open the burner clean-out. This will
allow the ash from previous use to fall into the cup under
the grill. The cup should be removed and emptied and then
reinstalled before each use.
DANGER
Never Operate the Pellet grill without the ash cup in place.
Make sure the burner clean-out port is closed and locked
before starting the grill.
WARMING RACK
COOKING GRATE
CLEANOUT PORT CLOSED
CLEANOUT PORT OPEN
Never open the burner clean-out port when the grill is hot.
After cleaning out the burner make sure to close the burner
clean-out by pushing the clean-out port knob in on the right
side of the grill. Make sure to lift the pullout lock and push
the clean-out port knob all the way in and lock in place
with the pullout lock. Every 50 hours of use, remove the grill
grates, grease tray, and heat deflector and clean the inside of
the grill. If you notice a lot of ash blowing around in the grill it
is time to vacuum it out.
Filling the Auger Tube
Caution: Only use the feed setting when hopper has run
out of pellets. Feed setting is not for normal use.
The first time you use your grill or any time the hopper has
run out of pellets you will need to fill the auger tube. This
simply means you must fill the auger tube with pellets until
pellets reach the burner. This is done by selecting FEED from
the main menu: With the controller powered on press the
selector knob to enter the MENU. Rotate the knob until FEED
is shown and press the selector knob again. This will turn
the auger on and the controller will display “FEED” and a
countdown timer. The auger will remain on for no more than
7 minutes. This is ample time for the pellets to reach the
burner. To avoid over-filling of the burner with pellets, open
the burner clean-out by pulling the knob on the right side of
the grill, opening the clean-out slide. Once you hear pellets
dropping into the ash cup you can close the clean-out by
To Next Page
