Camp Chef SmokePro PG24 - Parts List

Page 3

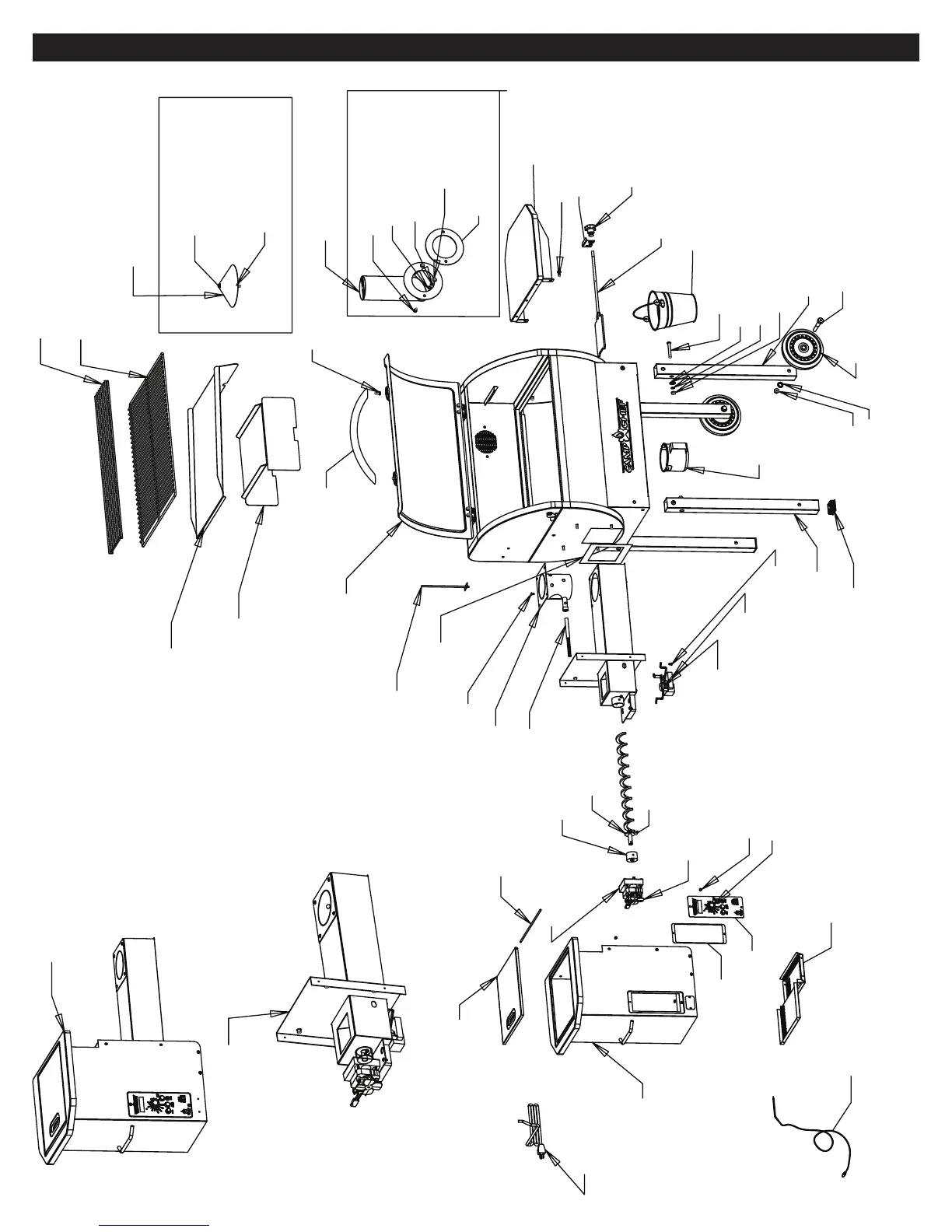

0713 PG24-2 PARTS
PG24-1 (1) WARMING RACK
PG24-2 (1) COOKING GRATE
PG24-3 (1)
DRIP TRAY
PG24-4 (1)
HEAT DEFLECTOR
M6 X 76 BOLT (1)
PG24-5 (1) CHIMNEY CAP ASM
PG24-6 (1) CHIMNEY
PG24-7 (1) CHIMNEY GASKET
M6 NUT (2)
M6 X 15 BOLT (2)
M6 NUT (2)
M6 LOCK WASHER (2)
M6 FLAT WASHER (2)
PG24-8 (1) SHELF
M6 X 15 BOLT (7)
PG24-41 (1) BURNER PULLOUT
PG24-9 (1) PULLOUT KNOB
PG24-11 (1) GREASE BUCKET
PG24-12 (2) RIGHT LEG
M8 X 55 BOLT (8)
M8 NUT (8)
M8 LOCK WASHER (8)
M8 FLAT WASHER (8)
PG24-13 (2)
LEFT LEG
PG24-14 (2)
LEG PLUG
PG24-17 (1) ASH CUP
PG24-16 (2) WHEEL
PG24-15 (2) WHEEL AXLE
M10 FLAT WASHER (2)
M10 ACORN NUT (2)
PG24-18 (1)
HANDLE
M6 X 15 BOLT (2)
PG24-44 (1)
THERMOMETER
PG24-20 (1)
BURNER
PG24-21 (1)
HEATING ROD
PG24-22 (1) AUGER
PG24-23 (1) AUGER BUSHING
PG24-24 (1) AUGER MOTOR
PG24-25 (1) AUGER PIN W/NUT
PG24-26 (1)
BLOWER MOTOR
PG24-27 (1)
BLOWER IMPELLER
PG24-28 (1) MEAT PROBE
M4.2 X 10 SCREW (4)
PG24-43 (1)
CONTROLLER
PG24-30 (1) CONTROLLER KNOB
M4.2 X 10 SCREW (2)
PG24-50 (1)
HOPPER COVER
PG24-32 (BLACK) (1)
PG24-38 (STAINLESS) OPTIONAL
HOPPER LID
PG24-33 (1) LID ROD
PG24-34 (1)
FEED GASKET
M4.2 X 10 SCREW (4)
PG24-39 (BLACK) (1)
PG24-47 (STAINLESS) OPTIONAL
GRILL LID
PG24-42 (1) PULLOUT LOCK
PG24-45 (1)
CONTROLLER GASKET
PG24-46 (1) GUARD PLATE
PG24-49 (1) AUGER IMPELLER
PG24-48 (1) POWER CORD
PG24-35 (1)
AUGER FAN BOX ASM
PG24-31 (1) HOPPER ASM
PARTS LIST
