Camp Chef SmokePro PG24 - Component Installation; Ash Cup Installation; Heat Deflector and Drip Tray

M6 X 15 SCRE
W
M6 NUT
M6 FLAT W
ASHER
M6 LOCK WASHER
CHIMNEY GASKET
M6 NUT
M6 X 76 BOLT

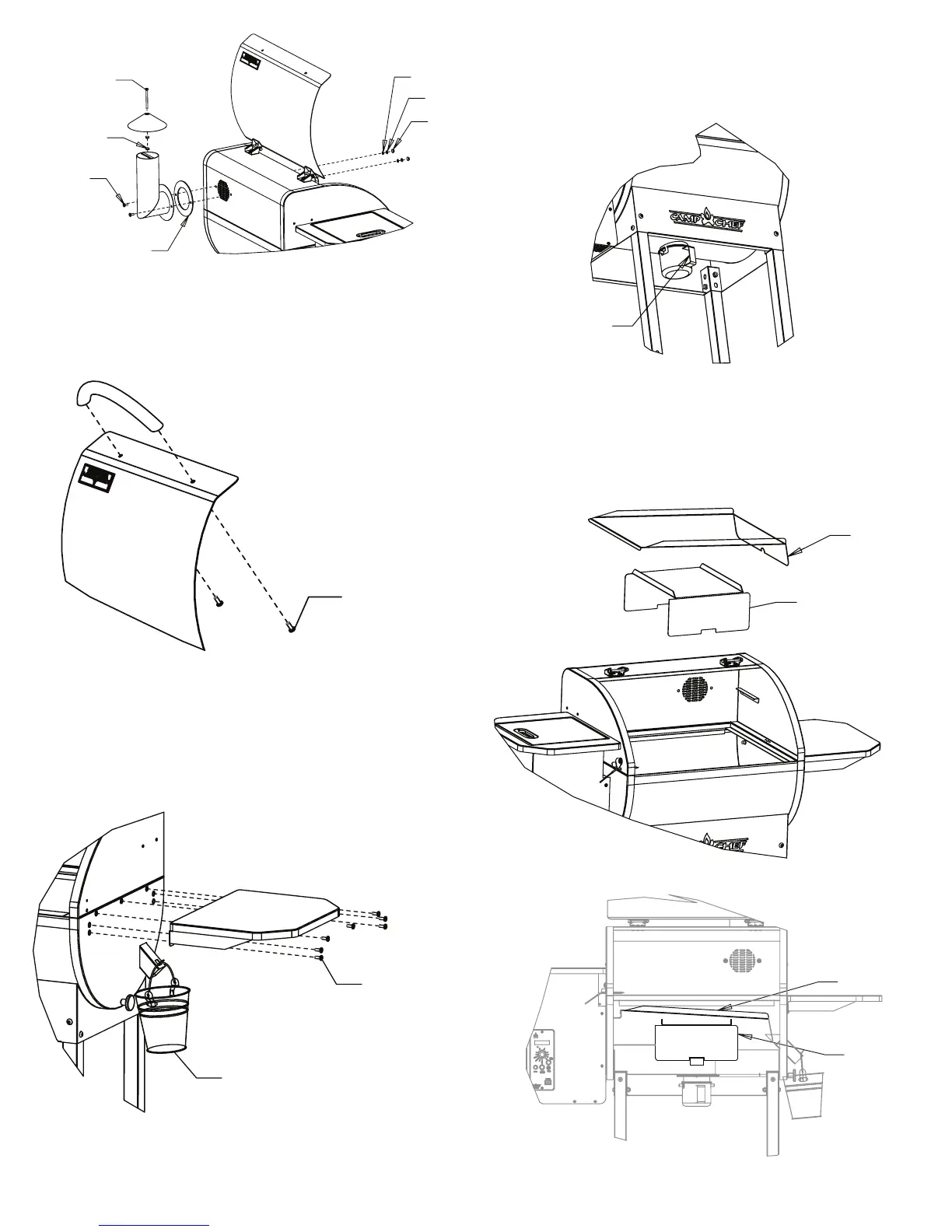

Fig. 2
M6 X 15 SCRE
W
GREASE BUCKET
Fig. 3
Fig. 4
ASH CU
P
Fig. 5
INSTALL HANDLE
1. Install the handle as shown in figure 3.
2. Tighten all hardware.
INSTALL SHELF
1. Install shelf as shown in Fig 4.
2. Tighten all hardware
GREASE BUCKET
1. Hang grease bucket from tube as shown in Fig 4.
ASH CUP
1. Install Ash Cup as shown in Fig 5. Never use grill without Ash
Cup in place.
HEAT DEFLECTOR AND DRIP TRAY
1. Install the Heat Deflector and Drip tray as shown in
Fig 6 and Fig 7.
M6 X 15 SCREW
HEAT DEFLECTOR
DRIP TRAY
HEAT DEFLECTO
R
DRIP TRAY
Fig. 6
Fig. 7
Page 5
