Section 2. Quickstart Tutorial
7

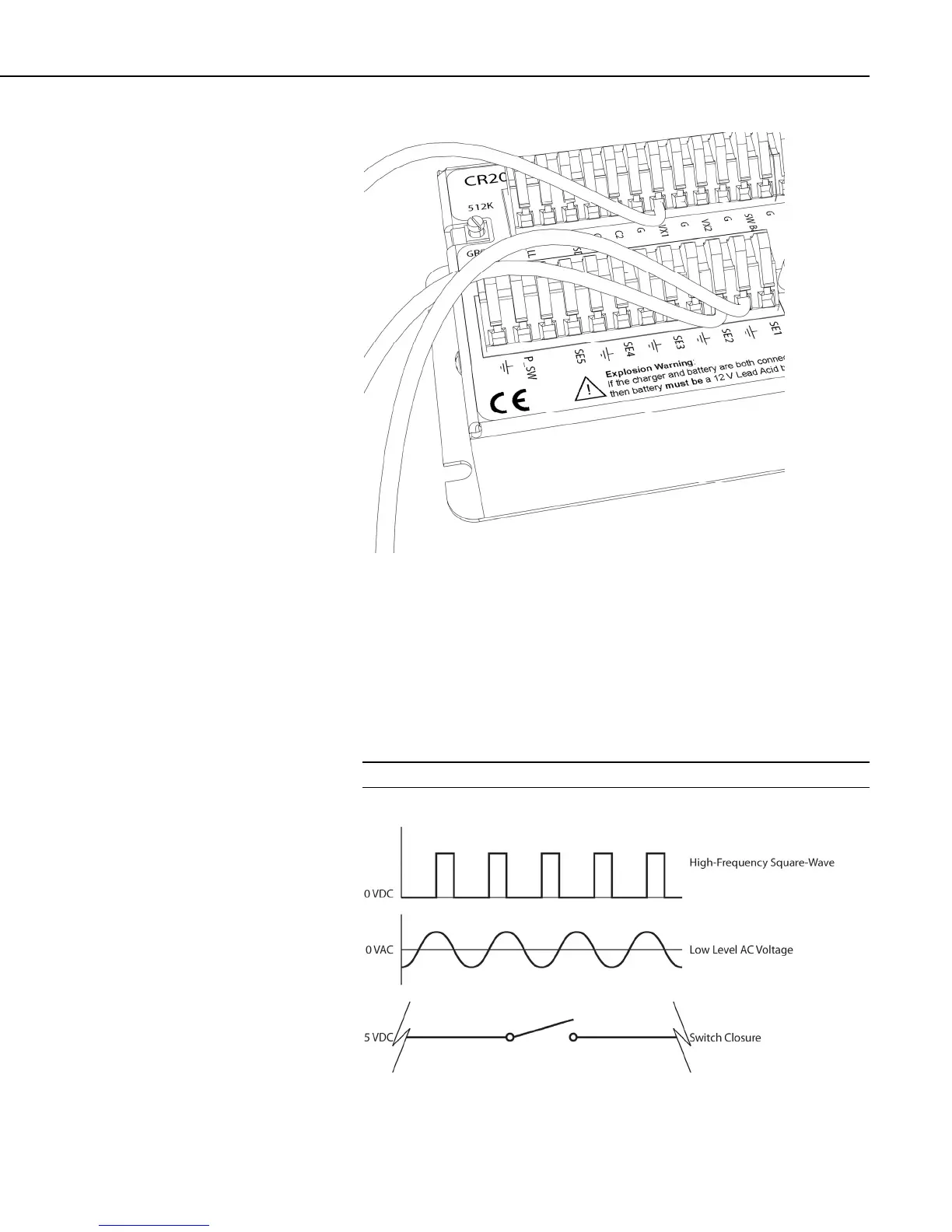

Figure 4: Half Bridge Wiring -- Wind Vane Potentiometer
2.1.9 Pulse Sensors
The CR200(X) can measure switch closures, low-level AC signals (waveform
breaks zero volts), or voltage pulses. Compatible signal types are illustrated in
FIGURE. Pulse Input Types (p. 7). A pulse input wiring example is shown in
FIGURE
. Pulse Input Wiring -- Anemometer Switch (p. 8).
No
te Period averaging sensors are connected to analog channels.
Figure 5: Pulse Input Types
