Campbell TDR100 User Manual

TDR100

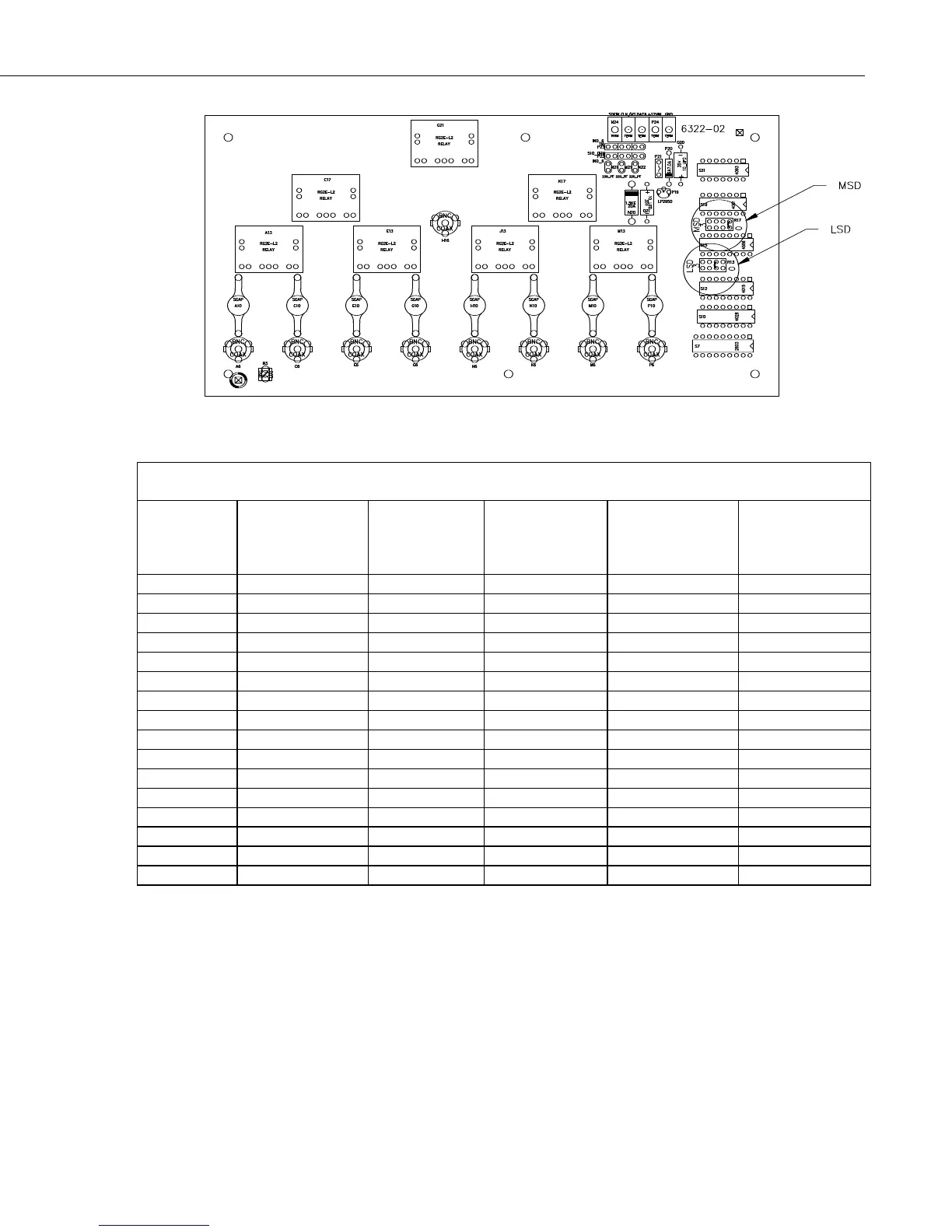

FIGURE 5-4. Location of Address Jumpers on SDMX50
TABLE 5-1. SDM Addressing for Early SN SDMX50s and Edlog Dataloggers
Base 10
Number
Instruction 119
Address (Base4)
TDR100
Thumbwheel
Switch
Level 1
SDMX50 Mux
(TDR100+1)
MSD LSD
Level 2 SDMX50
Muxs
(TDR100+2)
MSD LSD
Level 3 SDMX50
Muxs
(TDR100+3)
MSD LSD
0 00 0 0 1 0 2 0 3
1 01 1 0 2 0 3 1 0
2 02 2 0 3 1 0 1 1
3 03 3 1 0 1 1 1 2
4 10 4 1 1 1 2 1 3
5 11 5 1 2 1 3 2 0
6 12 6 1 3 2 0 2 1
7 13 7 2 0 2 1 2 2
8 20 8 2 1 2 2 2 3
9 21 9 2 2 2 3 3 0
10 22 A 2 3 3 0 3 1
11 23 B 3 0 3 1 3 2
12 30 C 3 1 3 2 3 3
13 31 D 3 2 3 3 not available
14 32 E 3 3 not available not available
15 33 F not available not available not available
15
