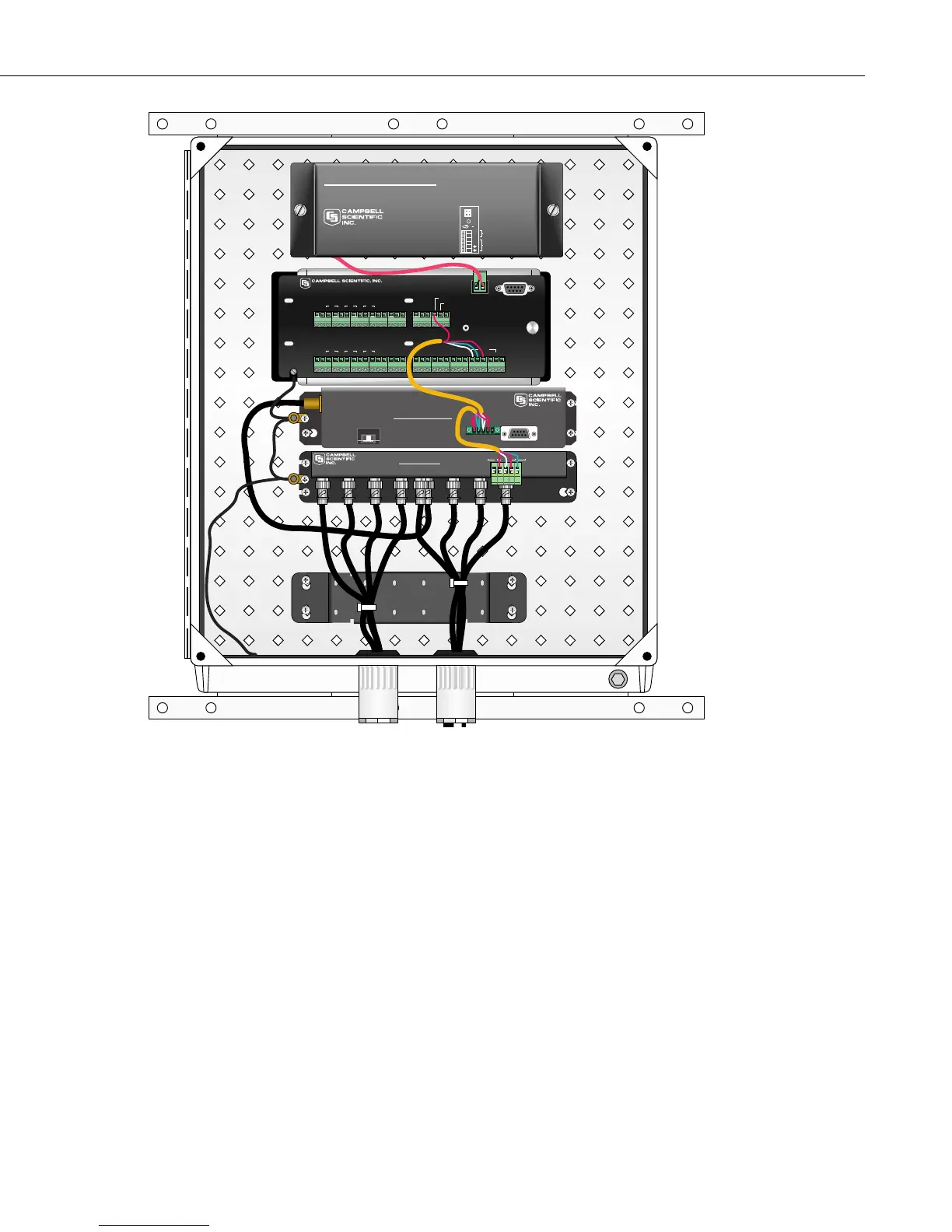

ENCTDR100 shown with
PS12 power supply, CR10X
datalogger, TDR100, and
SDMX50SP coaxial
multiplexer.
5.8 Soil Probes
The TDR probes are the sensors of the TDR measurement system and are
inserted into the medium to be measured. The probes are a wave guide
extension on the end of coaxial cable. Reflections of the applied signal along
the waveguide will occur where there are impedance changes. The impedance
value is related to the geometrical configuration of the probe (size and spacing
of rods) and also is inversely related to the dielectric constant of the
surrounding material. A change in volumetric water content of the medium
surrounding the probe causes a change in the dielectric constant. This is seen
as a change in probe impedance which affects the shape of the reflection. The
shape of the reflection contains information used to determine water content.
Both volumetric water content and electrical conductivity can be measured
using fixed spacing 2-rod designs and 3-rod designs (CS605 and CS610).
