TDR100
To view the current parameter values type GECP at the > prompt. The values
of the 4 parameters are returned.
The default values for the threshold equation are:
a = 0
b = 1
c = 2
Therefore the default threshold is the mean plus twice the standard deviation of
the values in the 10-point window before the probe. All values in the window
must be below the threshold value.
The threshold equation was chosen to provide flexibility when conditions of
noise or large amount of signal attenuation are present.
threshold = a*(maximum derivative) + b*(mean from step 3) + c*(standard
deviation from step 3)
840 860 880 900 920 940 960 980 1000
0
0.1
0.2
0.3
0.4
0.5
waveform
waveform derivative
wave
orm
an
er
vat
ve
near
pro
data poi nt
reflection coefficient
ma x_ der i v
index
max_derivative
values used for applied signal

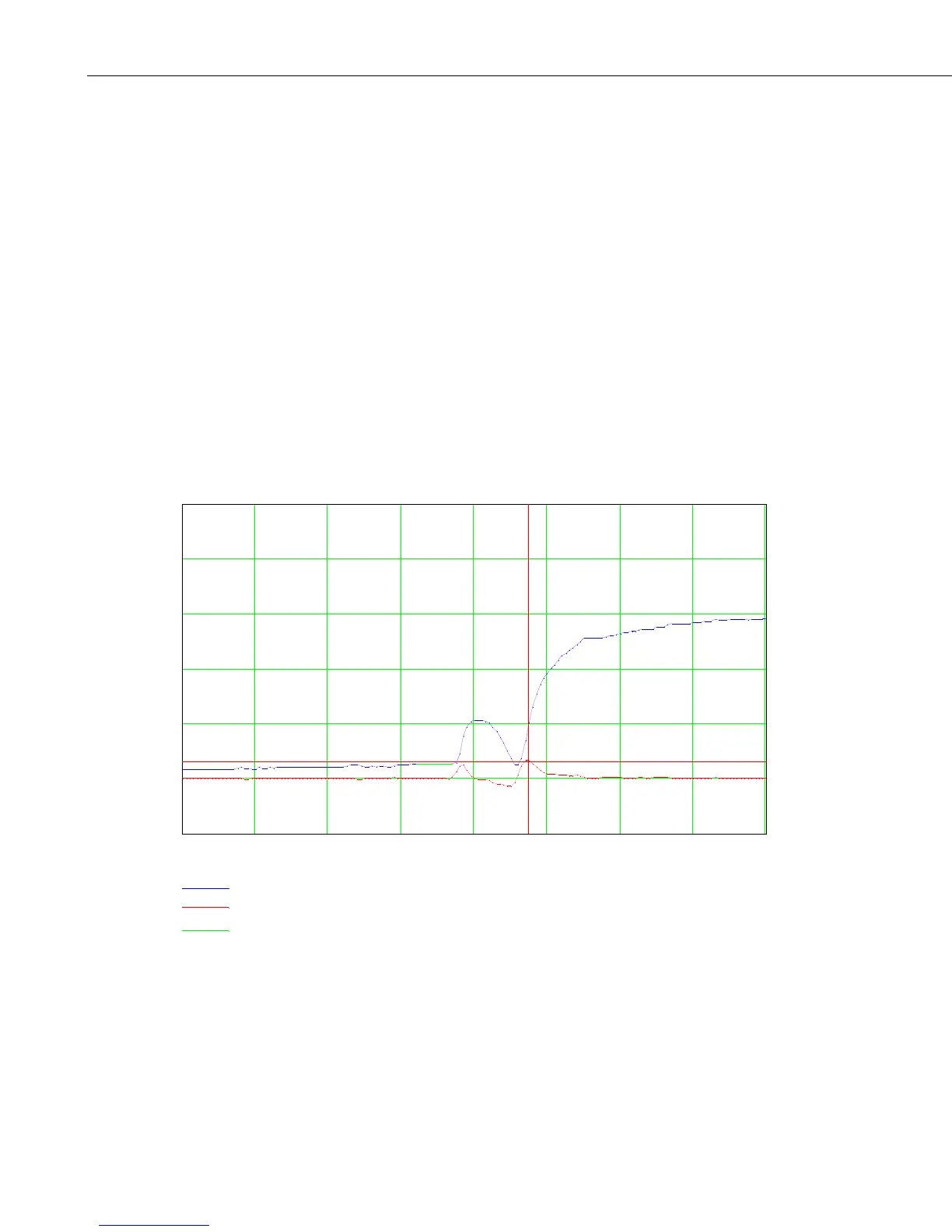

FIGURE 9-3. Waveform and derivative values near TDR probe and locations of index for point of
maximum derivative and maximum derivative value. The green band represents the results of the
search using the threshold value.
34
