Camus Hydronics DFH/W2000 - Page 39

34
DFW

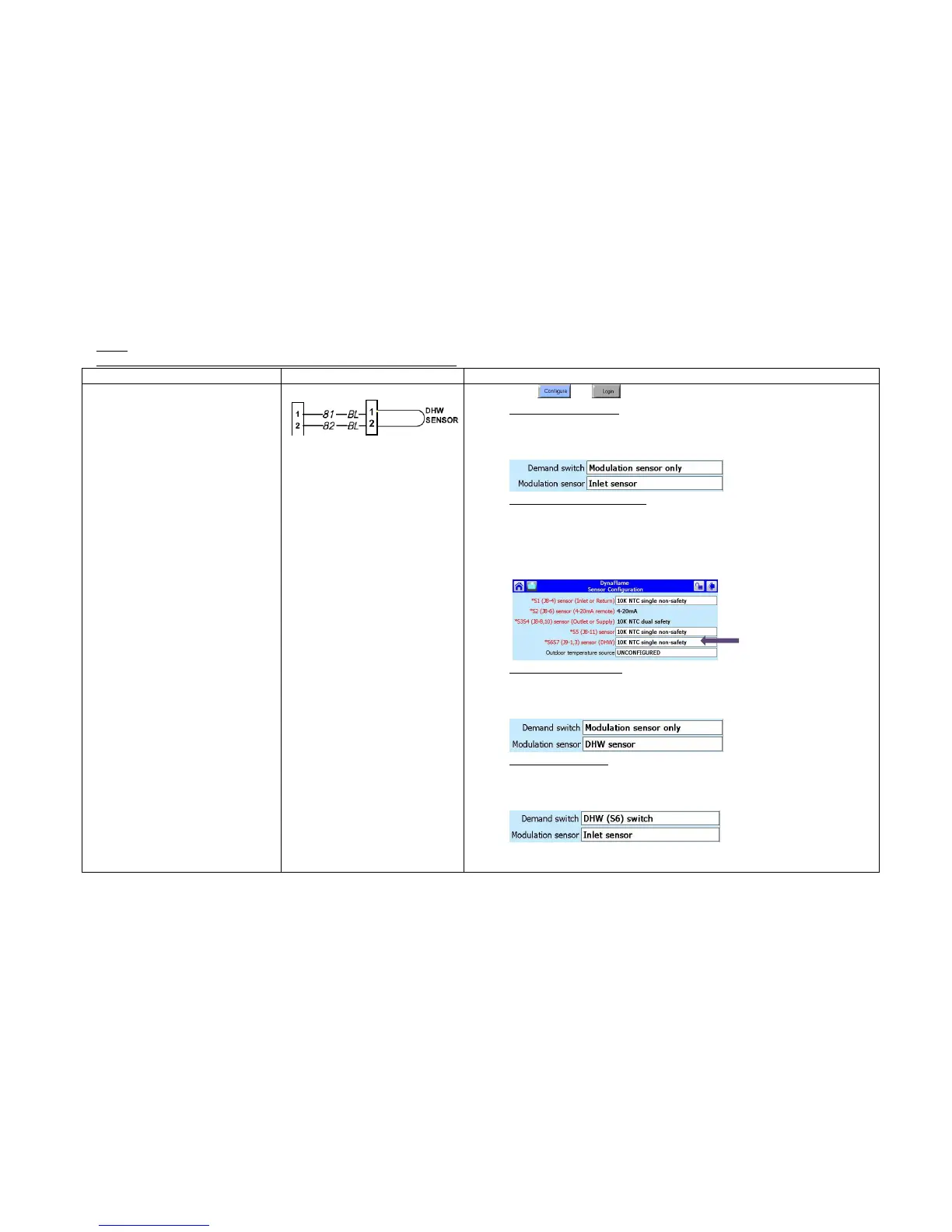

Modulation: Boiler Inlet, Fixed Setpoint Operation (Standalone, Lead Lag)
Description
Electrical Connection(s)
Programming Instructions
•
Boiler operates at a fixed
DHW setpoint
• Modulates on boiler inlet
sensor (default)
• Heat demand is generated
when Remote Operator is
closed.
DHW Sensor/ Stat, if required.
1) Press and
Inlet Sensor operation
2) Press [DHW – Domestic Hot Water Configuration]
3) Select Demand Switch: Modulation sensor only
4) Select Modulation sensor: Inlet Sensor. Proceed to Step 12
DHW Sensor/Stat operation
1) Press [Sensor Configuration]
2) Select S6S7 (J9-1,3) Sensor: 10K NTC Single Non-Safety
3) The control will proceed into a Lockout 2 condition
4) Press [Verify] > [Begin] > [Yes]
5) Press the reset button on the ignition control within the alotted time
DHW Sensor operation
5) Press [DHW – Domestic Hot Water Configuration]
6) Select Demand Switch: Modulation sensor only
7) Select Modulation sensor: DHW Sensor. Proceed to Step 12
DHW Stat operation
8) Press [DHW – Domestic Hot Water Configuration]
9) Select Demand Switch: Modulation sensor only
10) Select Modulation sensor: DHW (S6) switch & inlet sensor
11) Enter desired Setpoint
12) Place toggle switch setting to REMOTE for remote operation (if required)
