Camus Hydronics DRH5000 - Page 80

74
93-0195-17
1
1
00
C
KC
BK
Y
BL
R
BK - BLACK BL - BLUE BR - BROWN
O - ORANGE
P - PURPLE R - RED
W - WHITE
Y - YELLOW
AIR INLET
DAMPER POWER OPEN POWER CLOSED
Y
O
BK
BR
R - FROM TERMINAL 8
(CONSTANT POWER)

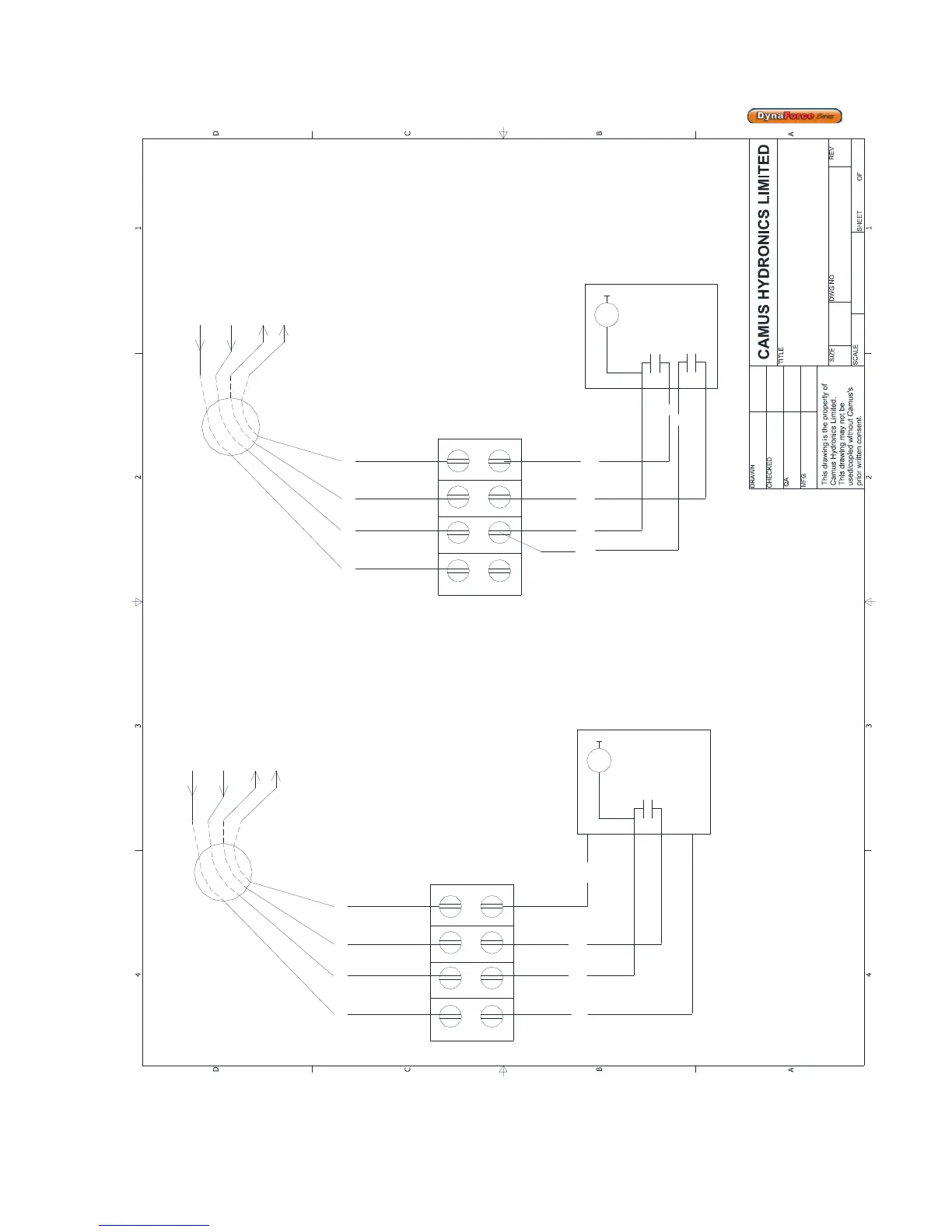

Spring Return Air Inlet Damper Connection Detail with
Local/Remote Switch
MOTOR
29/04/2011
AIR INLET
DAMPER
CONNECTION
BK - FROM TERMINAL 6
(CALL FOR HEAT)
BL - PROCEEDS TO IGNITION
Y - TO TERMINAL 1
(COMMON RETURN)
CONTROL BOX TERMINALS
BK
Y
BL
R
AIR INLET
DAMPER POWER OPEN
SPRING RETURN CLOSED
RY
R - FROM TERMINAL 8
(CONSTANT POWER)
MOTOR
AIR INLET
DAMPER
CONNECTION
BK - FROM TERMINAL 6 (CALL FOR HEAT)
BL - PROCEEDS TO IGNITION
Y - TO TERMINAL 1
(COMMON RETURN)
CONTROL BOX TERMINALS
END
SWITCH
R
Y
R
Y
EFFIKAL AIR INLET DAMPER SCHEMATIC
FAMCO AIR INLET DAMPERSCHEMATIC
