TCA Board
The proper DAC voltage range is set at the factory with a jumper in position JP5 or
position JP6. For proper operation of this unit, this voltage range jumper must not be
moved.
There should be no jumpers installed in positions JP1, JP2, JP3 and JP4; these posi
-
tions are for factory testing only.
6
Controls and Connectors

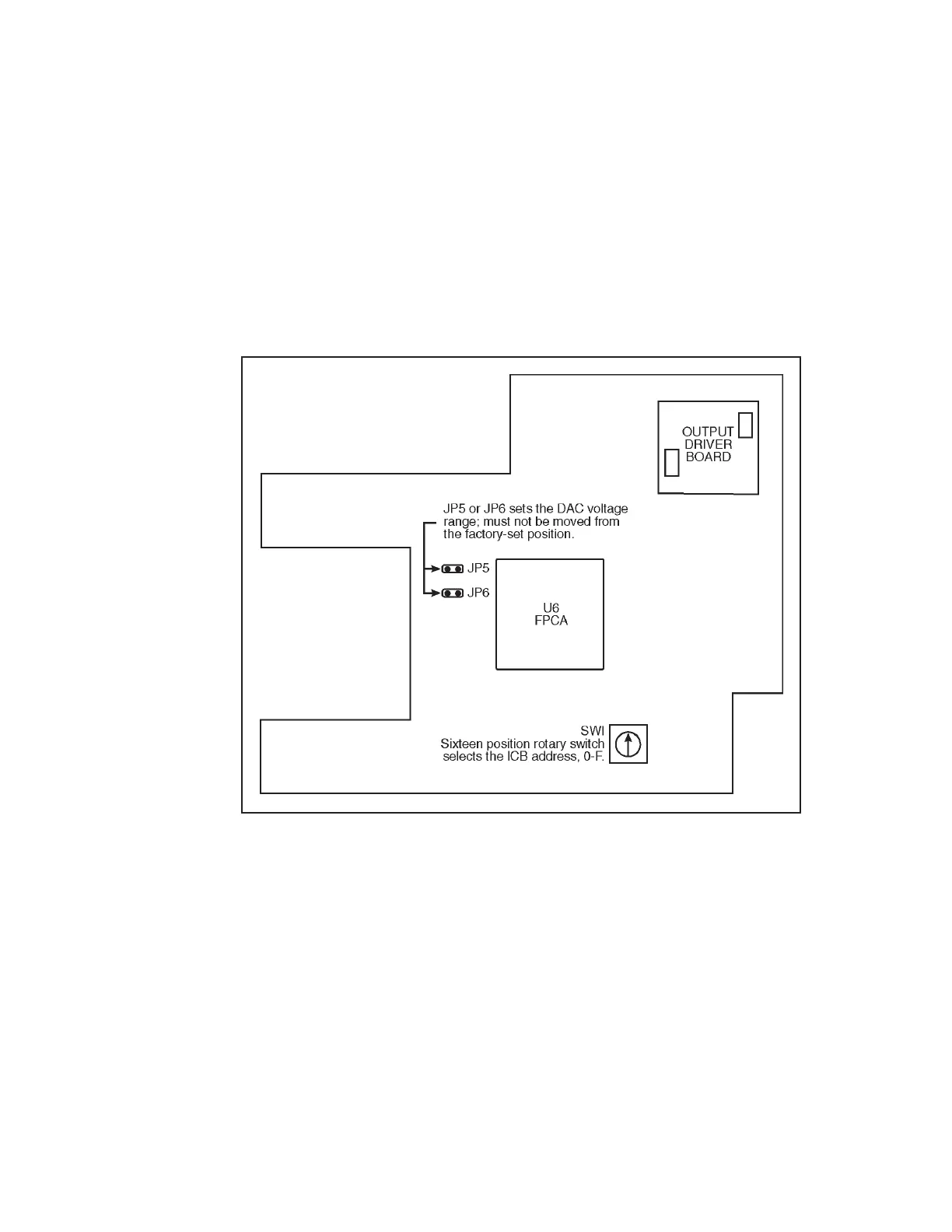

Figure 4 TCA Board Jumpers
