C&S CSDPR-V2-300 - Relay Specifications and Dimensions; Dimension Details; Overcurrent and Earth Fault Protection; Circuit Breaker Failure & SOTF

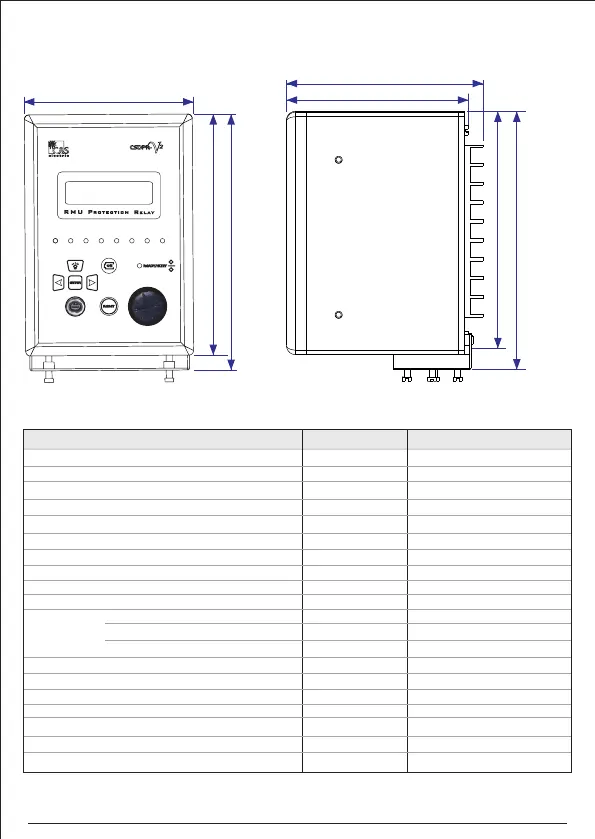

Dimension Details
(All the dim. are in mm)
Front View
Side View
110.0
158.0
167.8
118.0
128.0
158.0 167.8
Specification Table of the Relay
* ordering based
Function ANSI CSDPR-V2-300
3 Phase Over current protection 51 ü
3 Phase Instantaneous protection 50 ü
Earth time Over Current 51N ü
Earth time Instantaneous Over Current 50N ü
Circuit Breaker Failure protection 50BF ü
Switch onto fault SOTF ü
Trip circuit supervision * 74TC ü
Fault Record – 05
Event Record – 10
LCD Display – 16x2 Alpha Numeric
Digital Input *
Remote Trip* / CB Close – ü
Remote Block* / CB Open – ü
Digital Output – ü
Pulse Output – ü
Powered Nature – CT powered
Aux. powered
Front Communication – ü
Rear Communication (RS-485) – ü
Battery Backup – ü
