Internal Travel Adjustment

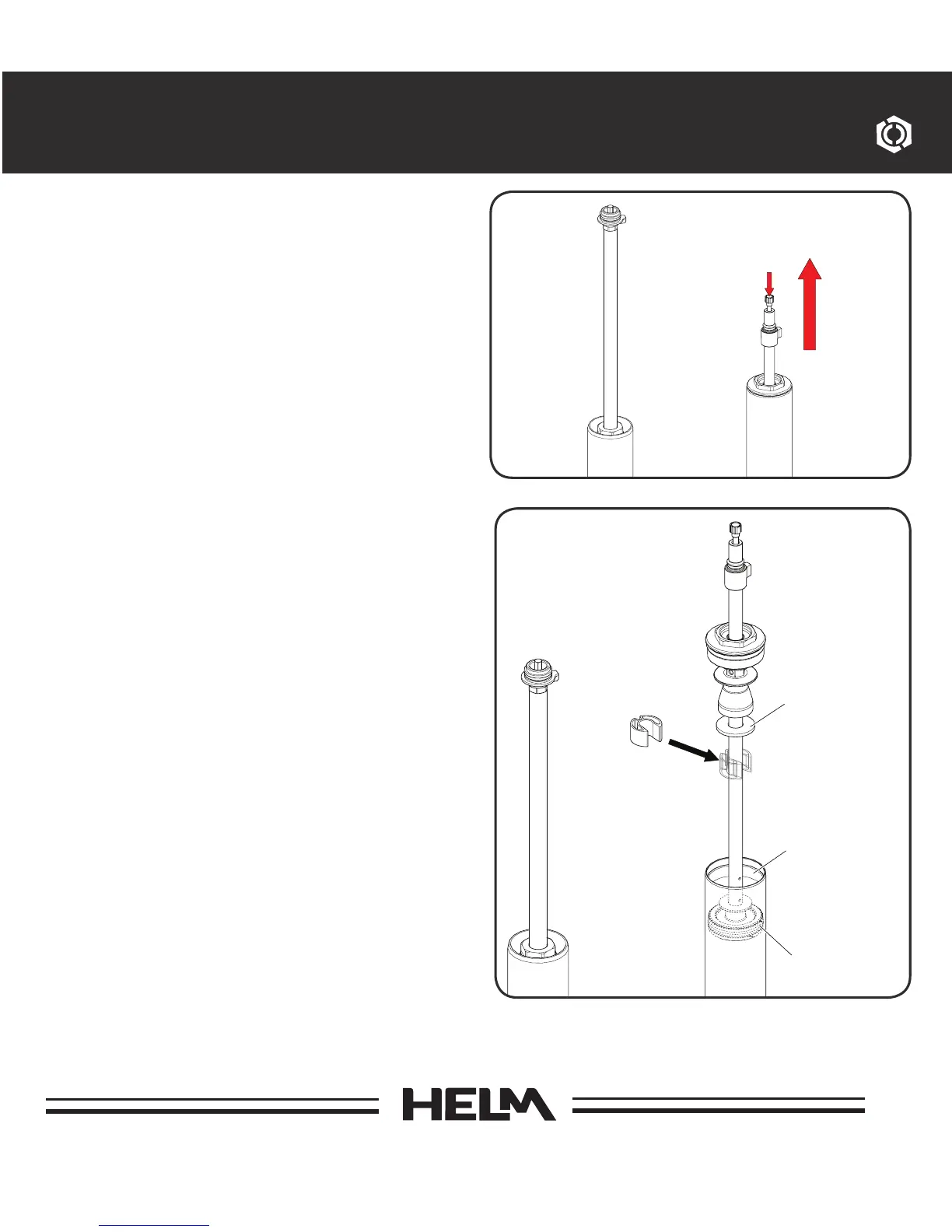

9. Pull air seal head upward exposing
compression rod assembly. Avoid
lifting air piston past threads on
upper legs. The o-ring of the air
piston could be damaged if it is
lifted past the threads on the
stanchion.
10. Pull top out bumper towards air seal
head to expose nylon washer.
11. Clip travel reduction reducer onto
the compression rod between the
white nylon washer and air piston.
