CT-2000 Instruction Manual
Keypad Sequence
MENU > 3 > ENTER > 2 > ENTER
If the CT-2000 was previously configured to operate in a polled (RS-485) environment, the
Communication Mode message appears on the LCD as shown in Figure 26.

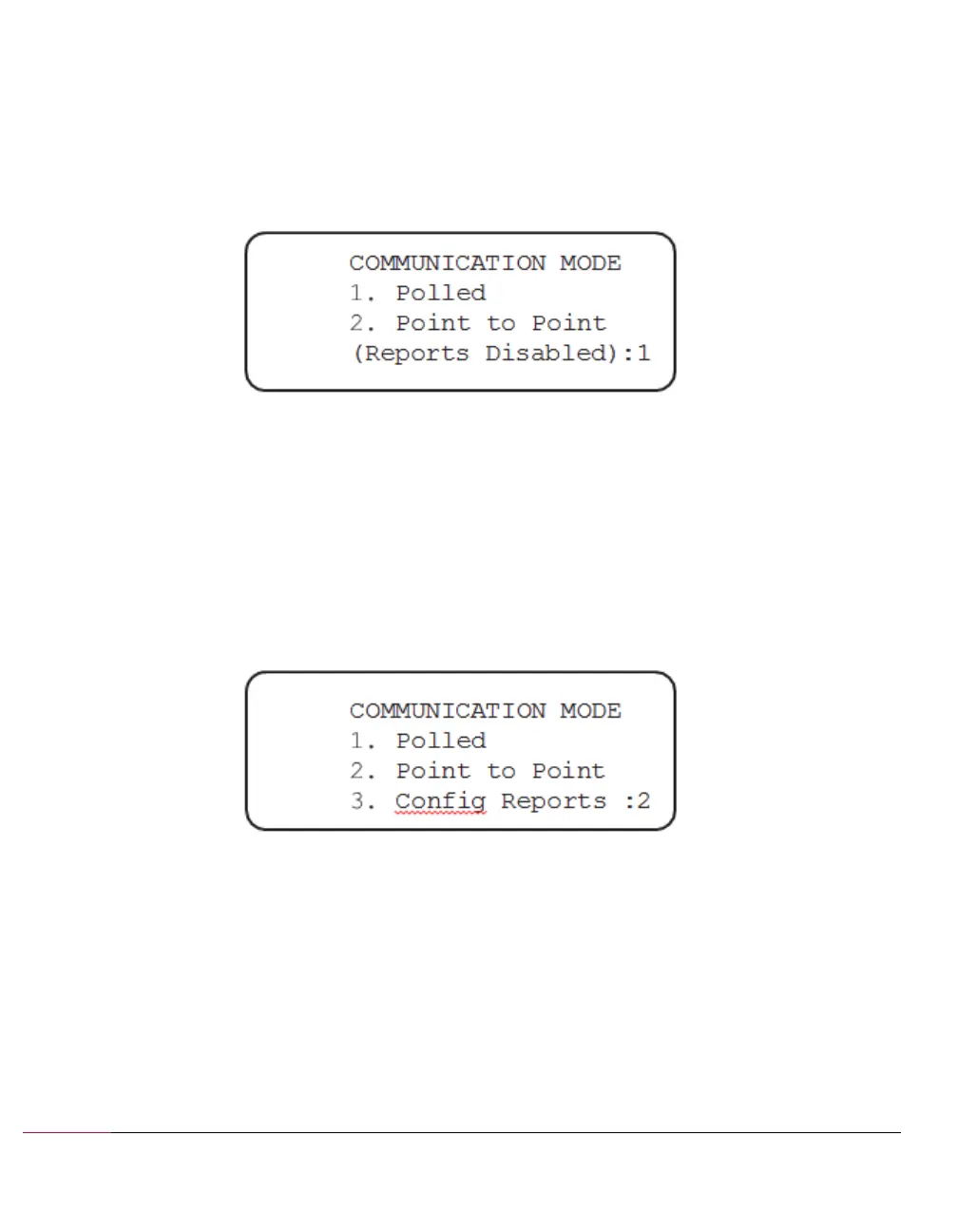

Figure 26: Communication Mode Display
The last line on the LCD indicates that timed reports are disabled and the present mode is polled.
In this example, the keypad sequence to press in order to operate in a point-to-point (RS-232)
environment with or without timed interval reports is: 2 > ENTER
If the CT-2000 is configured to operate in a point-to-point (RS-232) environment, the
Communication Mode message appears on the LCD when the RS-232 option is enabled, as shown in
Figure 27.
Figure 27: Communication Mode Display
The last line on the LCD (3. Config Reports) indicates that timed reports may be utilized and the
present mode is point-to-point (2). In this example, the keypad sequence to reset the bath to a
polled environment is: 1 > ENTER
Reports
The Reports option is accessed from the MODE sub-menu and is only enabled when the Point-to-
Point mode is selected.
