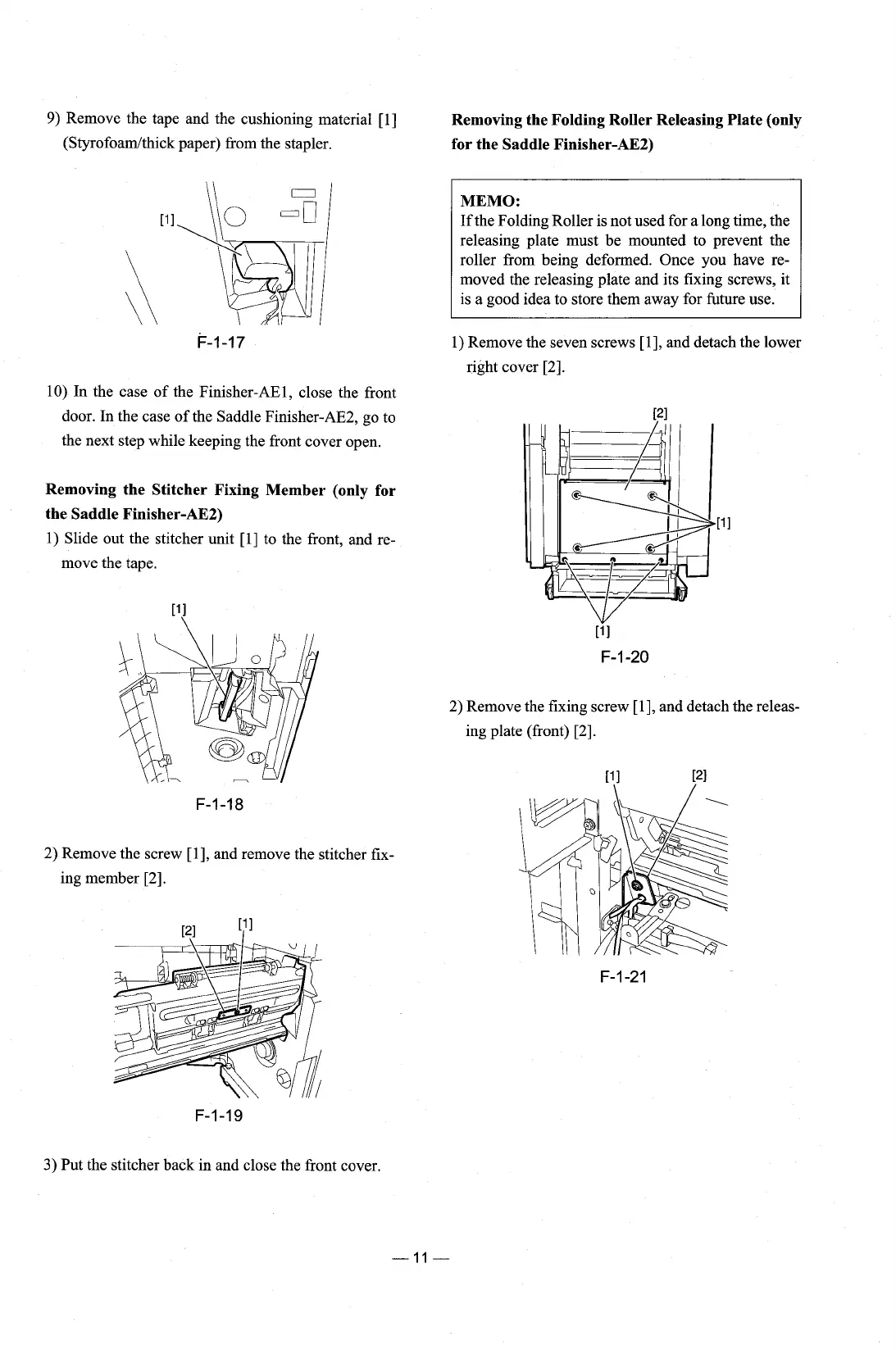

9)
Remove the tape and the cushioning material [l]
Removing the Folding Roller Releasing Plate (only
(Styrofoarnlthick paper) from the stapler.
for the Saddle Finisher-AE2)
10) In the case of the Finisher-AEl, close the front
door. In the case of the Saddle Finisher-AE2, go to
the next step while keeping the front cover open.
Removing the Stitcher Fixing Member (only for
the Saddle Finisher-AE2)
1) Slide out the stitcher unit [I] to the front, and re-
move the tape.
2) Remove the screw
[I], and remove the stitcher fix-
ing member
[2].
MEMO:
If the Folding Roller is not used for a long time, the
releasing plate must be mounted to prevent the
roller from being deformed. Once you have re-
moved the releasing plate and its fixing screws, it
is a good idea to store them away for future use.
1) Remove the seven screws
[I], and detach the lower
right cover
[2].
2)
Remove the fixing screw [I], and detach the releas-
ing plate (front)
[2].
F-1-19
3)
Put the stitcher back in and close the front cover.
To Next Page
