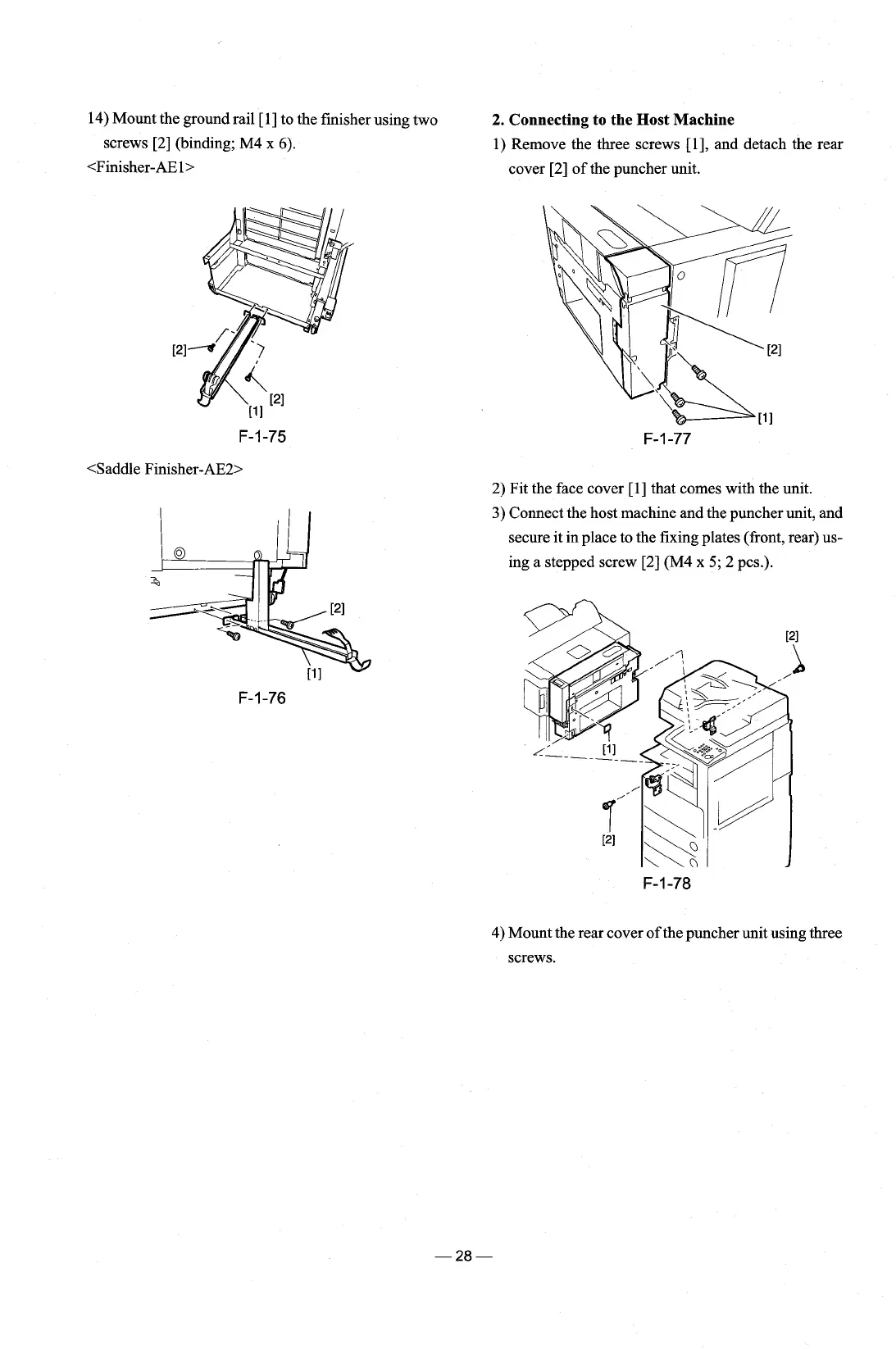

14) Mount the ground rail [l] to the finisher using two
2. Connecting to the Host Machine
screws [2] (binding; M4 x 6).
1) Remove the three screws [I], and detach the rear
<Finisher-AE
l>
cover [2] of the puncher unit.
<Saddie Finisher-AE2>
2) Fit the face cover [I] that comes with the unit.
3) Connect the host machine and the puncher unit, and
secure it in place to the fixing plates (front, rear) us-
ing a stepped screw [2] (M4
x 5; 2 pcs.).
F-1-76
F-1-78
4) Mount the rear cover of the puncher unit using three
screws.
