NOTE:
For the following procedures, the Cassette 3 Pickup Unit is used as an example in the description. Be sure to perform
the same procedure when removing the Cassette 4 Pickup Unit.

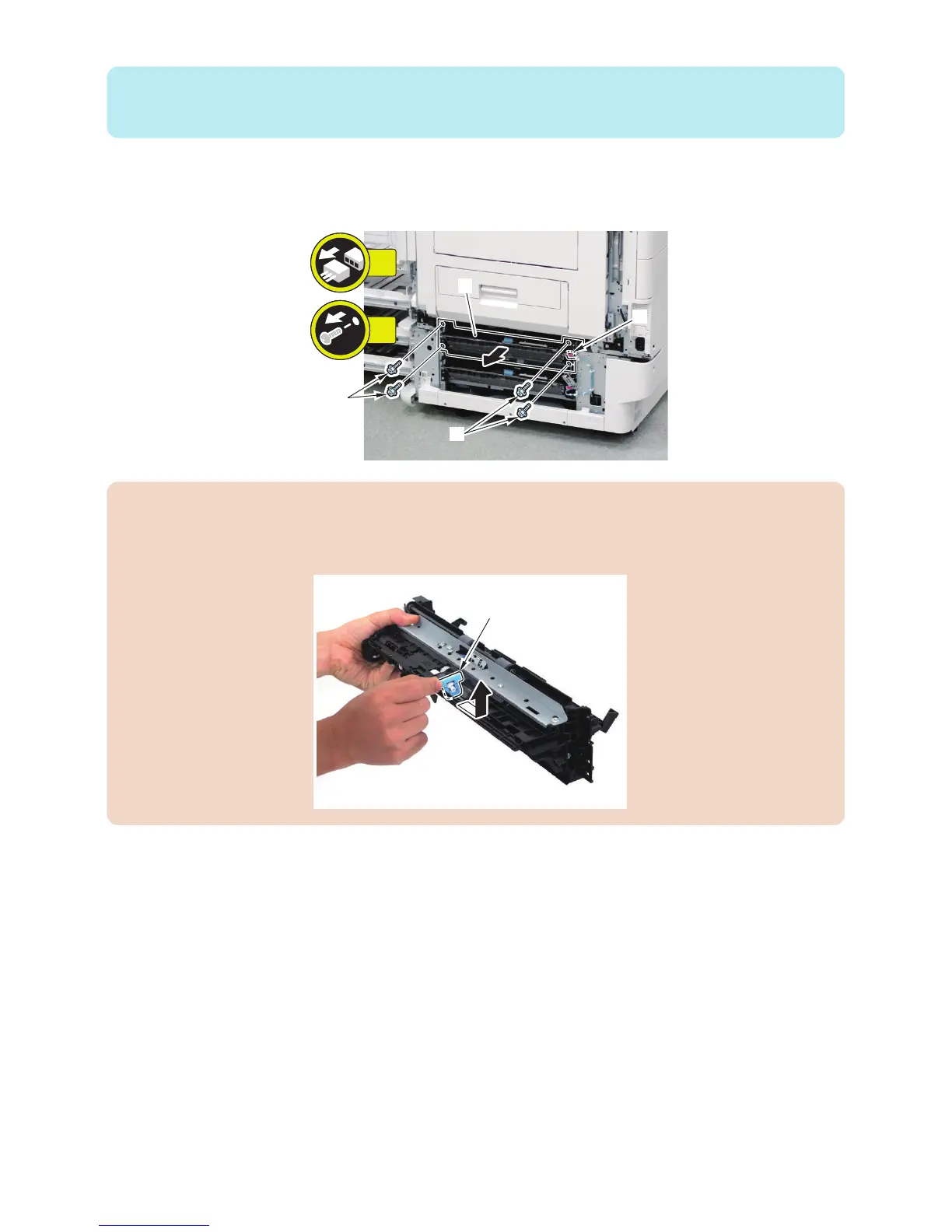

2. Remove the Pickup Unit [1].
• 1 Connector [2]
• 4 Screws [3]
4x
1x
[1]
[2]
[3]
[3]
CAUTION:
• When installing the Pickup Unit provided as a service part, be sure to remove the Fixation Member [1] before work.
• In case the Pickup Unit provided as a service part is not used, keep the unit with the Fixation Member [1] installed to
the original position.
[1]
Disassembly/Assembly
33
