Canon AM1 - Removing the Cassette Pedestal Driver PCB

Removing the Cassette Pedestal Driver PCB
■ Procedure

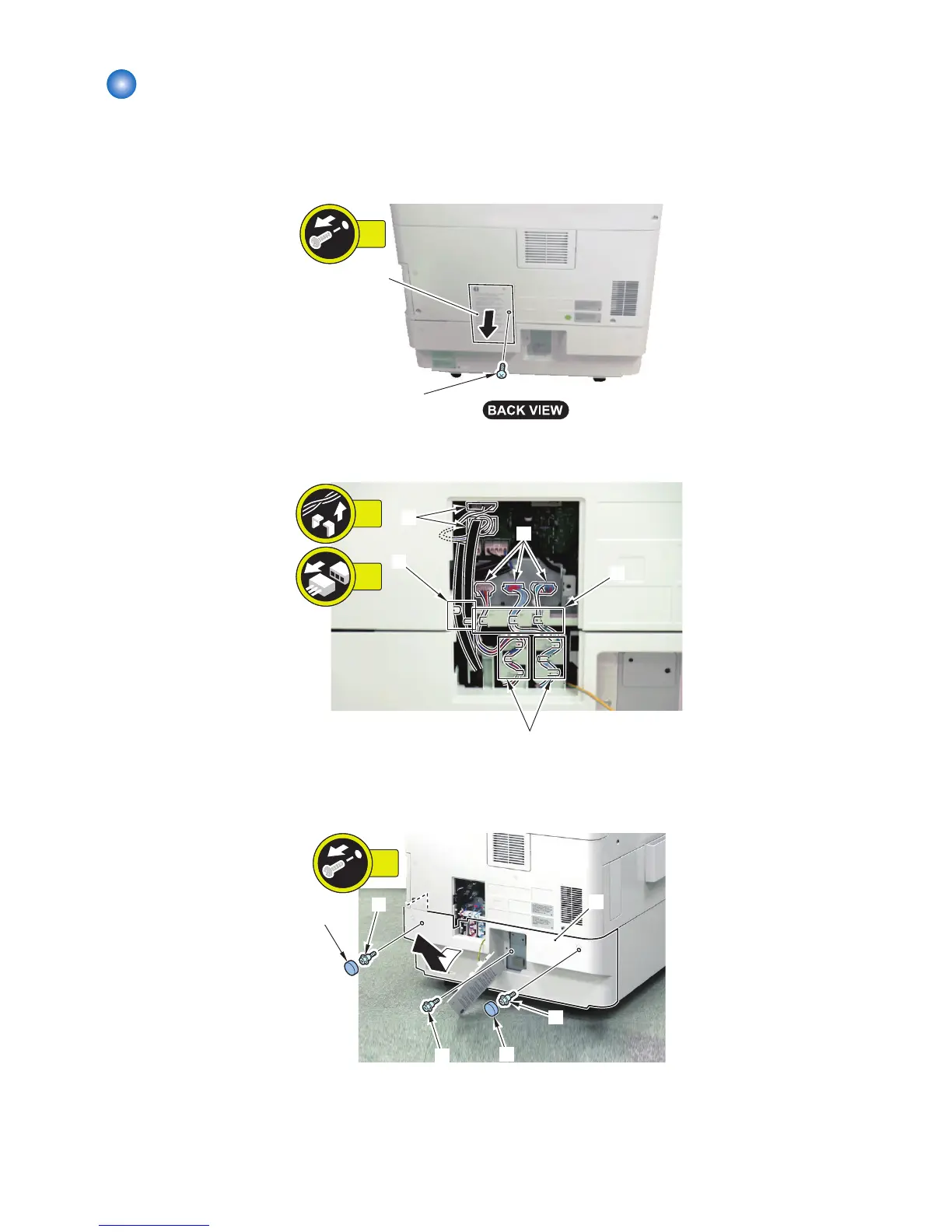

1. Remove the Connector Cover [1].
• 1 Screw [2]
1x
[1]
[2]
2. Disconnect the 5 connectors [1] and remove the 4 Harness Guides [2].
4x
5x
[1]
[2]
[2]
[2]
[1]
3. Remove the Pedestal Rear Cover [1].
• 2 Rubber Caps [2]
• 3 Screws [3]
3x
[1]
[2]
[2]
[3]
[3]
[3]
