Before Using the Machine

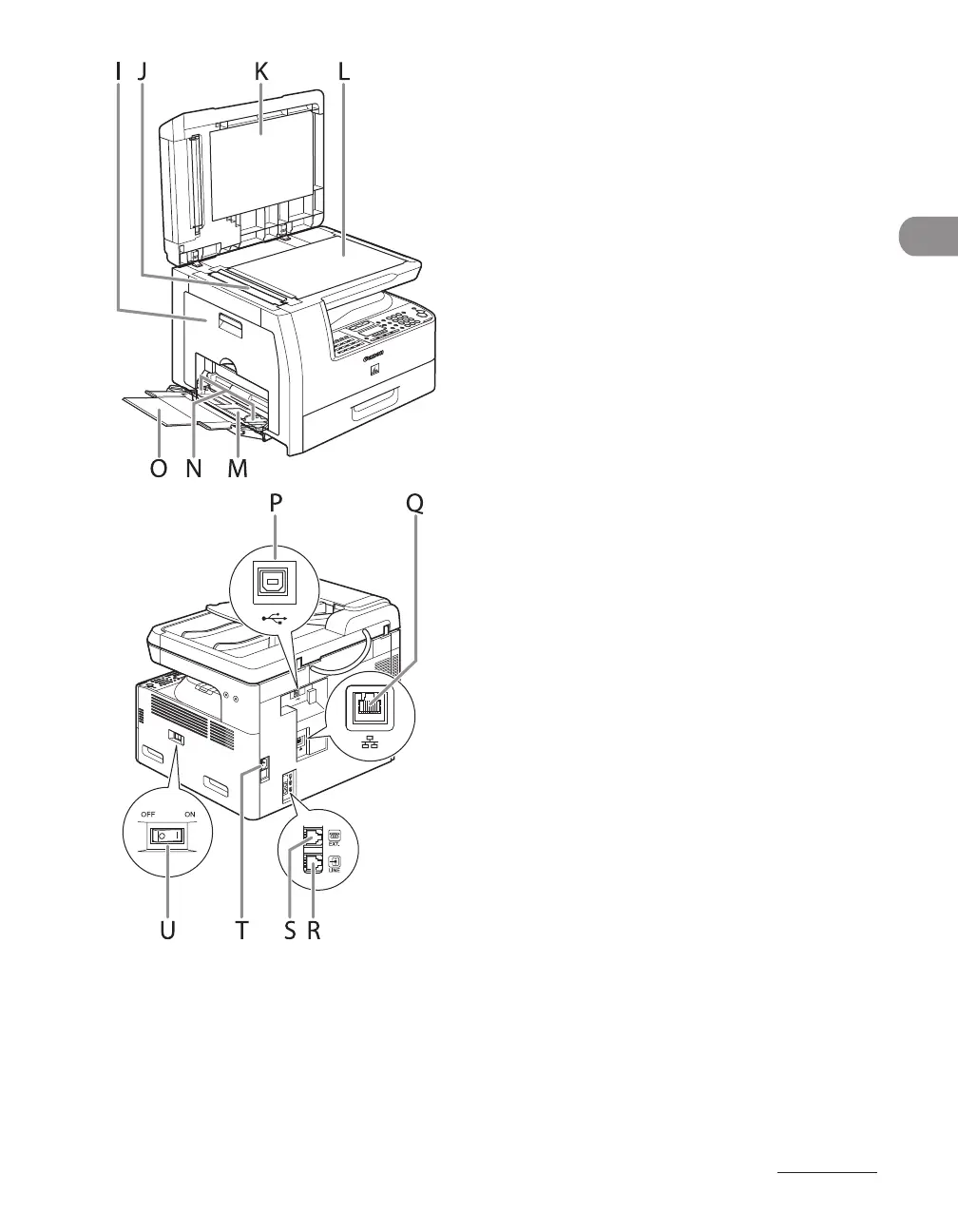

I Left cover
Open this cover when replacing the toner
cartridge or clearing paper jams.
J Scanning area
Scans documents from the ADF.
K Platen glass cover
Open this cover when placing a document on
the platen glass.
L Platen glass
Place documents.
M Multi-purpose tray
Feeds non-standard size or thick/thin type
paper stacks.
N Slide guides for multi-purpose tray
Adjusts to the width of the paper.
O Multi-purpose tray extension
Pull out to load paper stack.
P USB port
Connect the USB (Universal Serial Bus) cable.
Q Ethernet port (MF6595cx/MF6595/
MF6590/MF6540 only)
Connect the network cable.
R Telephone line jack (MF6595cx/MF6595/
MF6590 only)
Connect the external telephone cable.
S External device jack (MF6595cx/MF6595/
MF6590 only)
Connect an external device.
T Power socket
Connect the power cord.
U Main power switch
Turns the power on or off.
