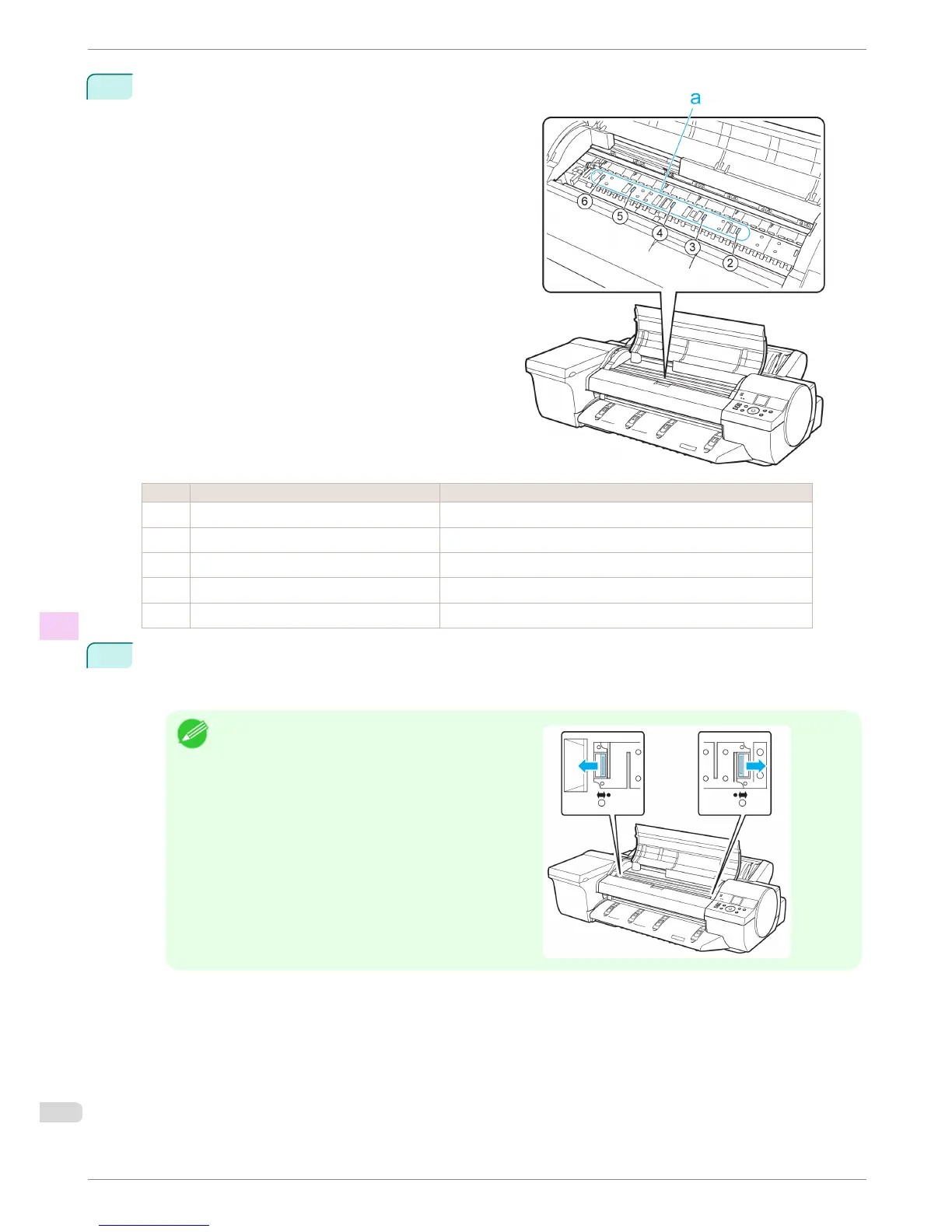

Refer to the following table to confirm the number on
the Platen (a) that corresponds to the size of paper for
printing.
Number Dimensions Paper Size
2 254 mm (10 in) or 257 mm 10"x12", 8"x10", or JIS B4
3 355 mm (14 in) 14"x17"
4 406 mm (16 in), 420 mm, or 432 mm (17 in) 16-in. Roll (406.4mm), ISO A2, 17-in. Roll (431.8mm), or ANSI C
5 515 mm (20 in) JIS B2 or JIS B3
6 610 mm (24 in) ISO A1, ISO A2, or 20"x24"
6
Using the back of the Cleaning Brush, move the Switch to the side opposite ●, corresponding to the size of
the paper for printing.
In this case, note that you will move the switch in the opposite direction from the direction in step 4.
Note
•
The Switch only moves number 1 and the number that
matches the paper size. Set all of the switches where
the number does not match the paper size in switches
number 2 and higher to the ● side.
Setting the Blue Switch on the Platen
iPF6450
Basic Guide
Troubleshooting Problems with the printing quality
