Detect image size AND Oversize EXAMPLE

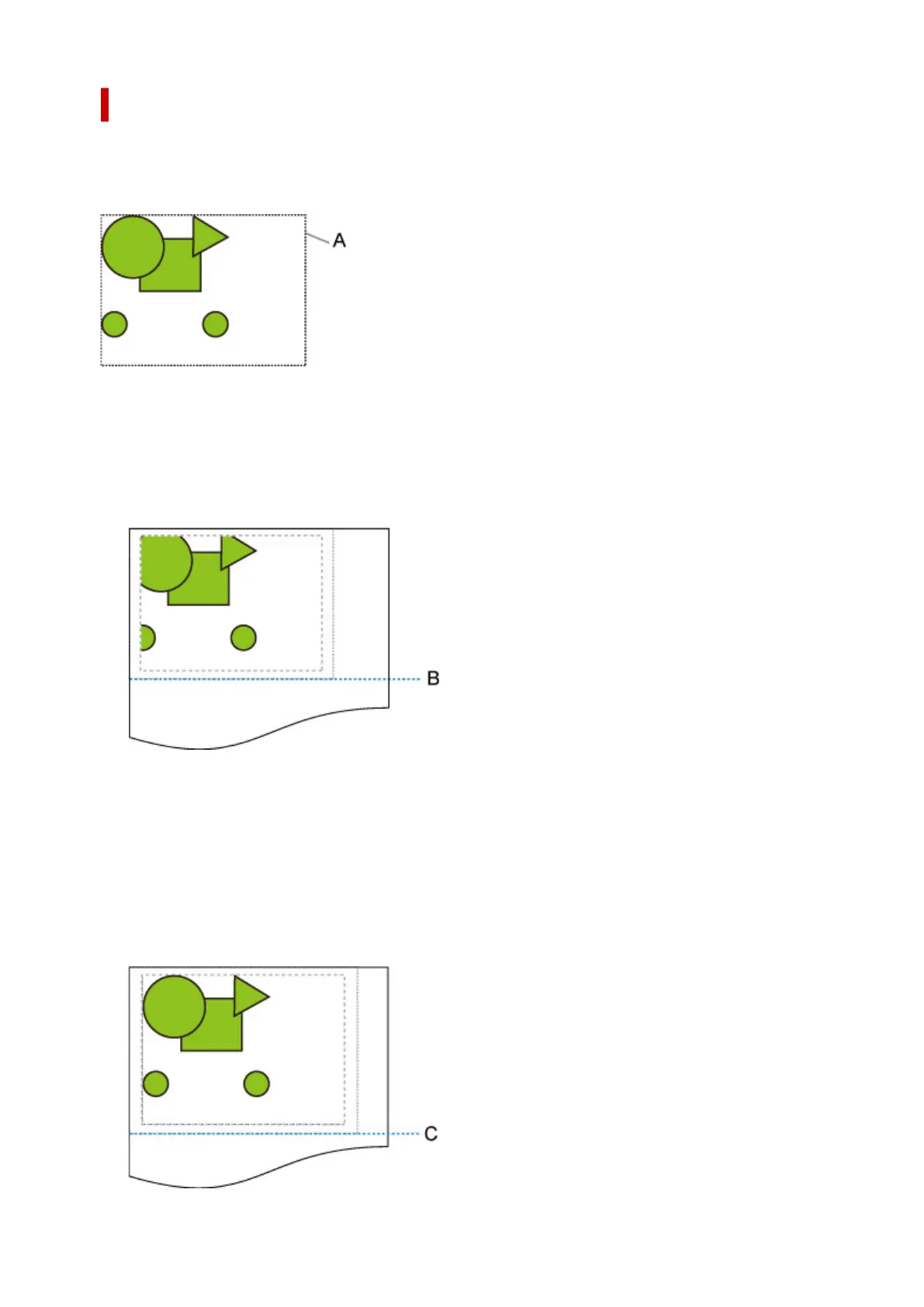

The example below shows printing of data in which a figure is located in the upper left corner
with margins below and to the right, on roll paper that is larger than the command-specified image
drawing range (size normally specified by the application).
A: The image drawing range determined based on the Detect image size setting
• When OFF or Command priority is selected for Detect image size and Disable is selected for•
Oversize:
Since margins are added inside the image drawing range, images may be chipped depending on the
layout.
B: Position of cut
The paper is cut with the length of the image drawing range determined based on the Detect image
size setting.
• When OFF or Command priority is selected for Detect image size and Enable is selected for•
Oversize:
Since margins are added outside the image drawing range, images will not be chipped due to the
margins.
442
