COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
6-5
CHAPTER 6 PICKUP/FEDING SYSTEM
3. When the feeding roller drive gear and
the feeding roller shaft gear engage, the
drive reaches the feeding roller shaft
gear to rotate the feeding roller.
4. When the pickup roller makes a single
rotation, the area of the pickup roller
drive without a tooth will be located at
the relay gear, preventing the drive of
the main motor from reaching the
pickup roller and the feeding roller,
stopping both rollers.
5. After pickup, the paper is moved under
the vertical path roller and then to the
registration roller assembly.

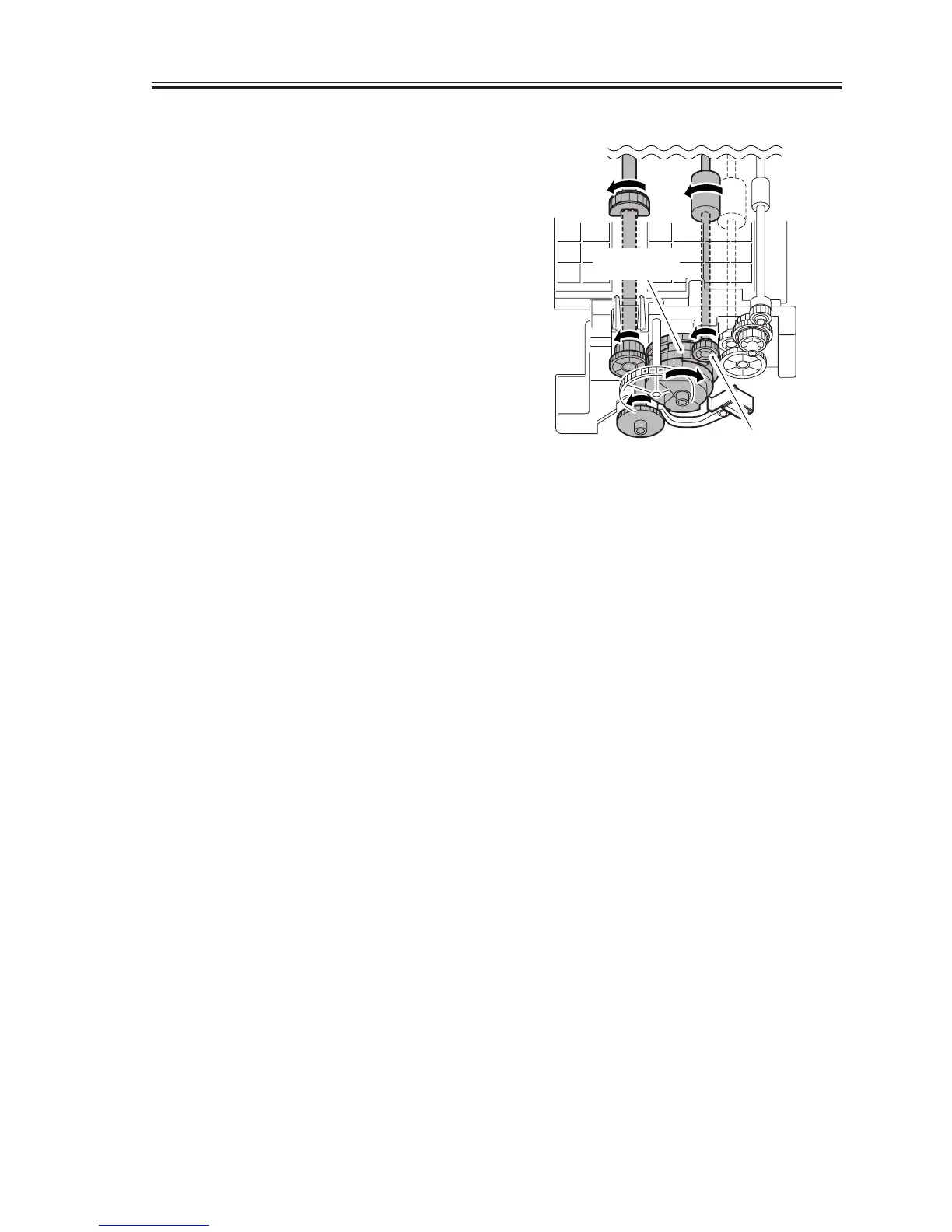

F06-201-04
Feeding roller
drive gear
Feeding roller
shaft gear

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
