4-6 Paper Handling Chapter 4
HT1-2205-000-V.1.0 LSL Userās Guide

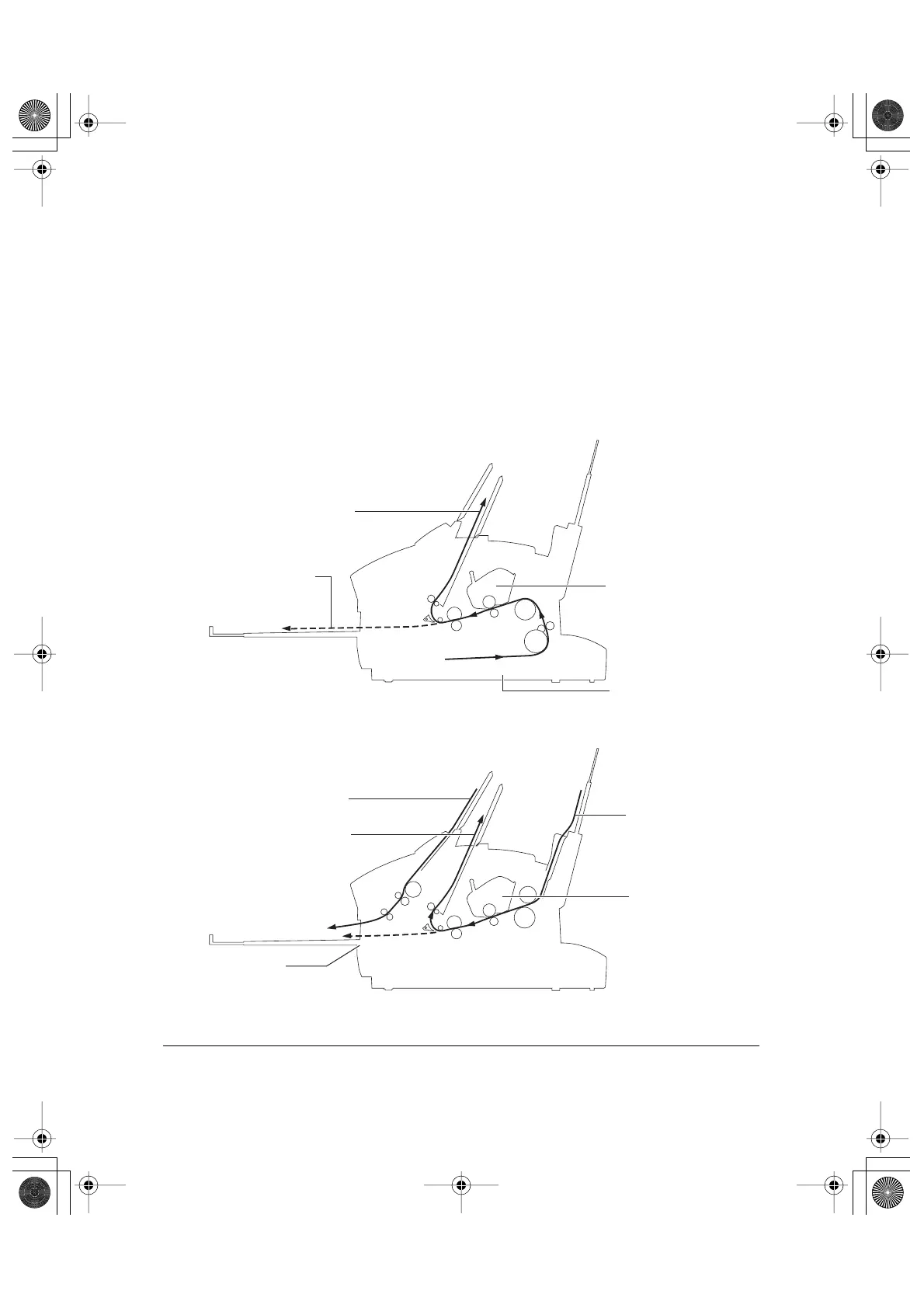

The Paper Path
Understanding how paper feeds through the machine will help you to
determine how to load paper and handle paper jams.
The page travels ļ¬rst to the FX3 cartridge. Here a laser beam ādrawsā the
print image on the drum, then the drum applies toner to the page. The
page then travels to the ļ¬xing assembly where the toner is fused to the
page. The page then exits the machine from the front (face-up delivery) or
top (face-down delivery).
TONER
CARTRIDGE
FACE-UP DELIVERY
FACE-DOWN
DELIVERY
DOCUMENT
FACE-DOWN
DELIVERY
RECORDING PAPER
(MULTI-PURPOSE TRAY)
TONER
CARTRIDGE
RECORDING PAPER
(PAPER CASSETTE)
FACE-UP DELIVERY
