-14-

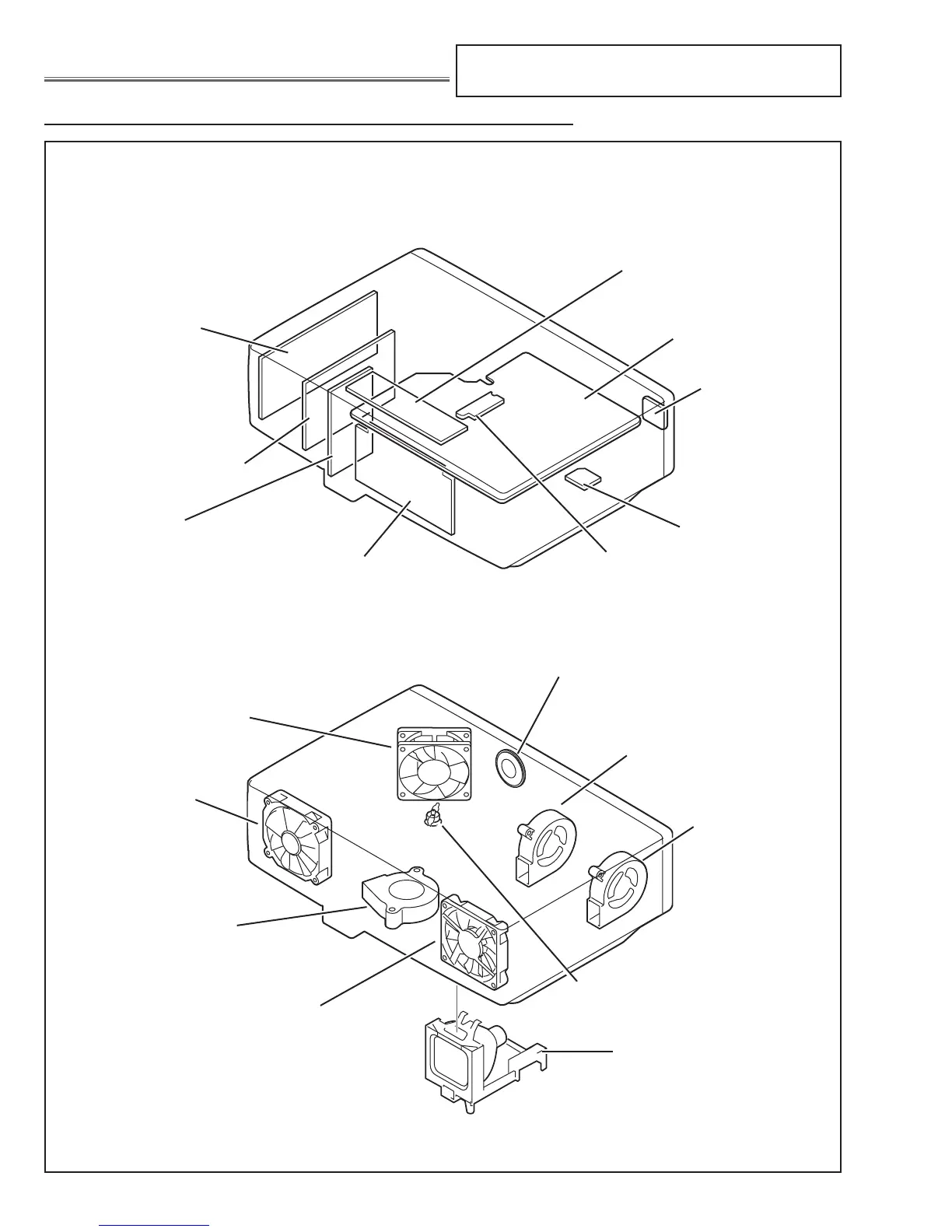

Mechanical Disassemblies
● CIRCUIT BOARD
● OUT OF CIRCUIT BOARD
Thermal Switch
(SW902)
FN904
Intake Fan
FN903
Exhaust Fan
A/V Board
Main Board
FN902
Intake Fan
FN905
Intake Fan
FN906
Exhaust Fan
FN901
Intake Fan
Filter Board
Unit_Lamp Ballast
Unit_Power
Sensor Board
R/C-A Board
Control Board
Switch Board
Speaker
(SP901)
Optical Lamp
(LP900)
Electrical Parts Location
* Following information differs from the model LV-S3 ;
- the cabinet, the control board
