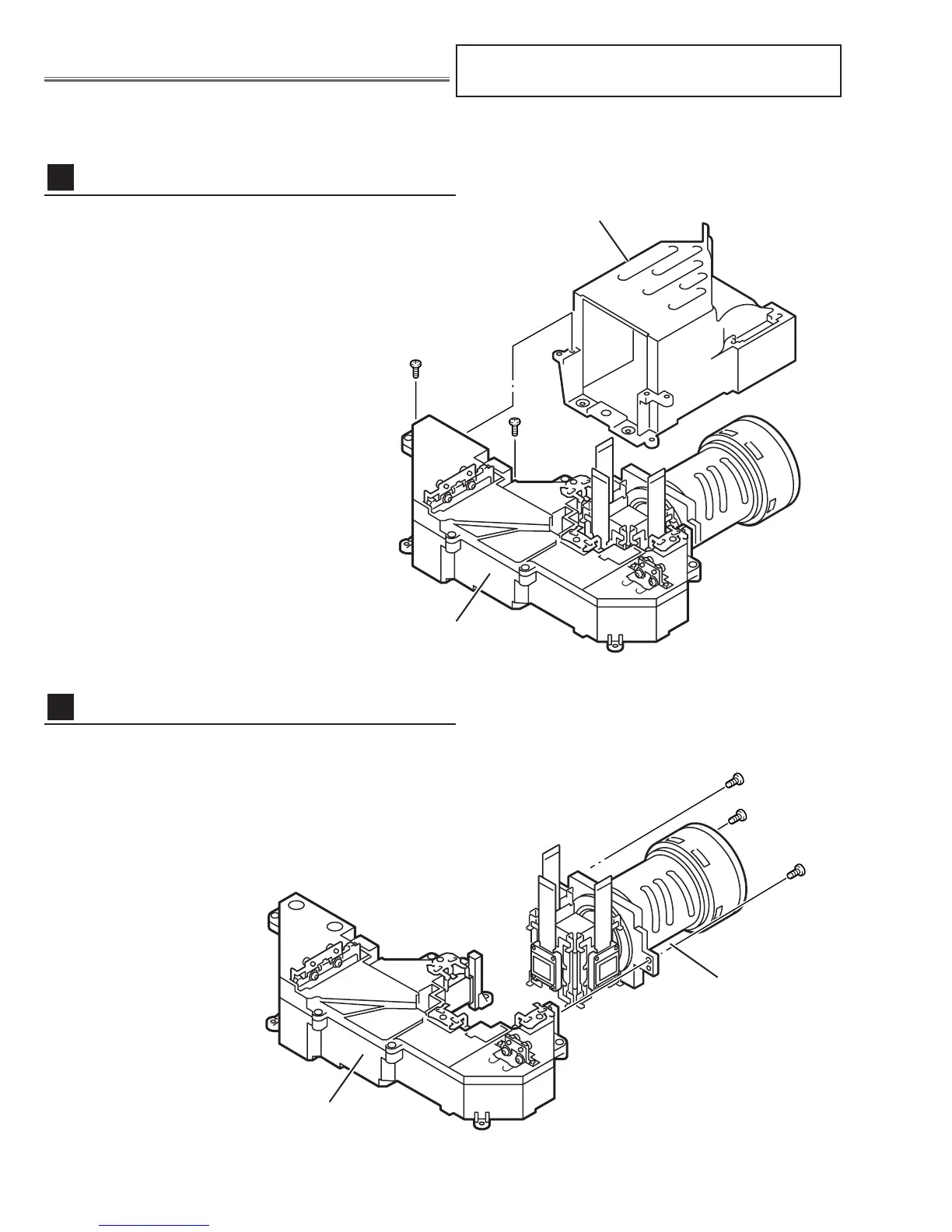

■ Optical Parts Disassemblies

Before taking this procedure, remove Cabinet Top, Main Board and Optical Unit following to the “Mechanical

Disassemblies”.

-16-

Fig.2

Fig.1

Remove 2 screws to take the Lamp Holder off.

Lamp Holder removal

1 Remove 3 screws to take the Projection Lens ass'y off.

Projection Lens Ass'y removal

Optical Unit Box

Lamp Holder

Optical Unit Box

Projection Lens

and Panel/Prism Ass'y

* Following information differs from the model LV-S3 ;

- the lamp holder removal
